Q24FA20H0050600石英晶體諧振器FA-20H專用于可視智能家居，日本愛普生公司從最初默默無聞的小型公司到如今的名揚天下的知名企業，這一路跌跌撞撞地成長，如今的實力雄厚，無可比擬，是挫折使人成長，也是自我的反省收到眾多的經驗，使得愛普生公司在創新能力有了極大的突破，為打造屬于自身的偉大帝國，提前布局好市場，如今的石英晶振瘋狂暢銷于全球，愛普生公司是1942年成立之初,便將綠色創新精神融入自身基因,堅信技術創新擁有可以改變世界的巨大潛能,并在追求商業與自然和諧發展的道路上不斷探索。
                            Product Number
|
  LxWxH
|
Model |
 Frequency
|
 CL Value
|
 Freq.tol. @+25°C
|
 Oper. Temper. range
|
| Q24FA20H0049200 | 2.5 x 2 x 0.55mm | FA-20H | 25.400000 MHz | 10 pF | +/-10 ppm | +/-10 ppm |
| Q24FA20H0049600 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm |
| Q24FA20H0049700 | 2.5 x 2 x 0.55mm | FA-20H | 19.200000 MHz | 12 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0049800 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 9 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0050300 | 2.5 x 2 x 0.55mm | FA-20H | 19.680000 MHz | 8 pF | +/-10 ppm | +/-10 ppm |
| Q24FA20H0050400 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 18 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0050600 | 2.5 x 2 x 0.55mm 2520晶振 | FA-20H | 24.000000 MHz | 18 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0051200 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 10 pF | +/-10 ppm | +/-30 ppm |
| Q24FA20H0051400 | 2.5 x 2 x 0.55mm | FA-20H | 27.120000 MHz | 9 pF | +/-10 ppm | +/-10 ppm |
| Q24FA20H0051900 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 20 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0052200 | 2.5 x 2 x 0.55mm | FA-20H | 12.000000 MHz | 18 pF | +/-20 ppm | +/-20 ppm |
| Q24FA20H0052600 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 6 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0053000 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 8 pF | +/-50 ppm | +/-50 ppm |
| Q24FA20H0054000 | 2.5 x 2 x 0.55mm | FA-20H | 13.333333 MHz | 10 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0054300 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm |
| Q24FA20H0054700 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 10 pF | +/-20 ppm | +/-30 ppm |
| Q24FA20H0054800 | 2.5 x 2 x 0.55mm | FA-20H | 27.120000 MHz | 10 pF | +/-20 ppm | +/-30 ppm |
| Q24FA20H0056600 | 2.5 x 2 x 0.55mm | FA-20H | 32.000000 MHz | 8 pF | +/-30 ppm | +/-30 ppm |
| Q24FA20H0056700 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 10 pF | +/-20 ppm | +/-30 ppm |
| Q24FA20H0057100 | 2.5 x 2 x 0.55mm | FA-20H | 12.000000 MHz | 10 pF | +/-10 ppm | +/-30 ppm |
| Q24FA20H0059100 | 2.5 x 2 x 0.55mm | FA-20H | 28.636360 MHz | 30 pF | +/-20 ppm | +/-20 ppm |

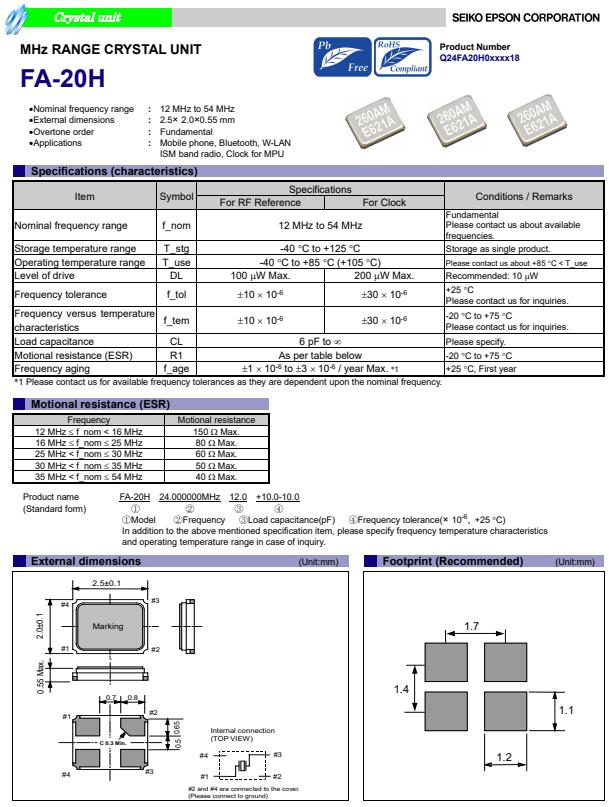

愛普生公司非常高興推出了FA-20H晶振，石英晶體諧振器編碼Q24FA20H0050600，頻率24.000000兆赫，尺寸(LxWxH)2.5 x 2 x 0.55 mm，客戶負載電容18pf，頻率公差+ / -30 ppm，Fo / temp。特征公差+ / -30 ppm，溫度范圍-40至+85°C，具備超高的穩定性能以及耐壓性能，低損耗的特點，常常用于無線模塊，醫療設備，可視智能家居，電子數碼產品等行業。
