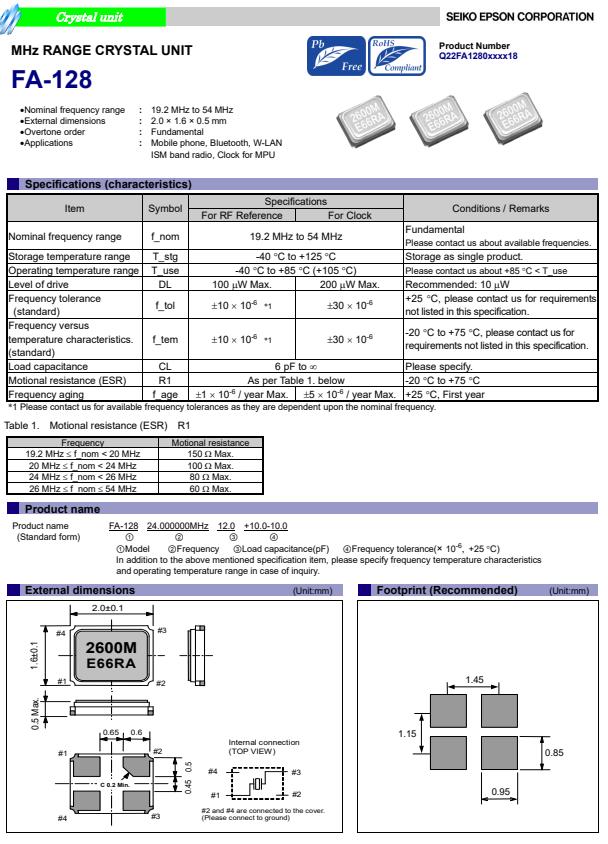

具有低損耗的愛普生無源晶振非常適合于MCU時鐘Q22FA1280054100，愛普生公司成立至今已有幾十年的發展歷程，通過不斷打磨晶振產品，以及快速的傳播力量，使得其名氣大漲，開發出了高性能的晶振產品線，經過高標準嚴格化的生產體系，研發這款FA-128晶振，編碼Q22FA1280054100，頻率20.000000兆赫，尺寸(LxWxH)2 × 1.6 × 0.5 mm，客戶負載電容15pf，頻率公差+ / -10 ppmFo / temp。特征公差+ / -10 ppm，溫度范圍-20至+75°C，無源貼片晶振，石英晶體諧振器具有高性能，低抖動的特點。

Product Number	EPSON晶振	Model	Frequency	CL Value	Freq.tol. @+25°C
Q22FA1280050600	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	12 pF	+/-10 ppm
Q22FA1280050700	2 x 1.6 x 0.5mm	FA-128	16.000000 MHz	9 pF	+/-10 ppm
Q22FA1280051300	2 x 1.6 x 0.5mm	FA-128	16.000000 MHz	10 pF	+/-30 ppm
Q22FA1280051400	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-10 ppm
Q22FA1280051700	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	6 pF	+/-10 ppm
Q22FA1280051900	2 x 1.6 x 0.5mm	FA-128	52.000000 MHz	8 pF	+/-10 ppm
Q22FA1280052600	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8.5 pF	+/-9 ppm
Q22FA1280052900	2 x 1.6 x 0.5mm	FA-128	16.000000 MHz	6 pF	+/-10 ppm
Q22FA1280053000	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-10 ppm
Q22FA1280053100	2 x 1.6 x 0.5mm	FA-128	50.000000 MHz	10 pF	+/-15 ppm
Q22FA1280053300	2 x 1.6 x 0.5mm	FA-128	24.576000 MHz	20 pF	+/-15 ppm
Q22FA1280054100	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	15 pF	+/-10 ppm
Q22FA1280054800	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-15 ppm
Q22FA1280055100	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	6 pF	+/-30 ppm
Q22FA1280055200	2 x 1.6 x 0.5mm	FA-128	19.200000 MHz	12 pF	+/-30 ppm
Q22FA1280055900	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-30 ppm
Q22FA1280056000	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	18 pF	+/-30 ppm
Q22FA1280056100	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-20 ppm
Q22FA1280056700	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	8 pF	+/-15 ppm
Q22FA1280056900	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	8 pF	+/-10 ppm
Q22FA1280057000	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-10 ppm

FA-128貼片晶振已被商業化，作為通信模塊的參考時鐘要求精度高，并作為時鐘用于無線通信和微機的應用,需要小型化的設備(TWS(真無線立體聲)、智能手表等)。使用多年培育的元素加工技術創造的產品做出了貢獻改善客戶系統的性能。應用程序用于消費和工業應用的小型通信模塊,可穿戴設備,MCU時鐘.

具有低損耗的愛普生無源晶振非常適合于MCU時鐘Q22FA1280054100，愛普生晶振是全球技術領導者，致力于通過利用其高效、緊湊和精確的技術和數字技術來連接人、物和信息，共同創造可持續發展和豐富社區。該公司專注于通過家庭和辦公室印刷、商業和工業印刷、制造、視覺和生活方式的創新來解決社會問題。
