編碼Q22FA23V0002216是愛普生公司精益求精研發的石英晶體諧振器，最近這幾年，新興互聯網快速崛起，在這個飛速變化的時代里，只能緊跟隨市場的需求作為最終的變化，而5G 智能家居出現無疑使得我們的生活方式發生了極大的變化，而互聯網，5G的發展都離不開SMD晶振。當智能汽車，家居發展迅速，汽車逐步由機械式向電子式方向邁進，讓大部分汽車接入一個開放的網絡，人與汽車系統自由的交互，并提供實時的信息互動、支付、交通、天氣等等。這會是未來發展的趨勢，隨之形成是這樣的應用場景：汽車將涵蓋導航、遠程呼叫、緊急救援、防盜跟蹤、道路救援、電話、資訊娛樂、下載應用，自動駕駛等多項功能，滿足消費者多樣化的需求。

Product Number16	LxWxH	進口晶振型號	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q22FA2380191316	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	7 pF	+/-15 ppm	+/-30 ppm	-20 to +70 °C
Q22FA2380191416	3.2 x 2.5 x 0.7mm	FA-238	28.636360 MHz	20 pF	+/-20 ppm	+/-30 ppm	-40 to +85 °C
Q22FA2380191716	3.2 x 2.5 x 0.7mm	FA-238	30.212412 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA2380191916	3.2 x 2.5 x 0.7mm	FA-238	26.000000 MHz	10 pF	+/-15 ppm	+/-30 ppm	-40 to +105 °C
Q22FA2380192016	3.2 x 2.5 x 0.7mm	FA-238	19.200000 MHz	12 pF	+/-30 ppm	+/-30 ppm	-40 to +105 °C
Q22FA2380192116	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-40 to +105 °C
Q22FA2380192316	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	18 pF	+/-50 ppm	+/-30 ppm	-40 to +85 °C
Q22FA2380192516	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	9 pF	+/-15 ppm	+/-30 ppm	-20 to +70 °C
Q22FA2380192616	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	12 pF	+/-20 ppm	+/-30 ppm	-40 to +105 °C
Q22FA2380193216	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	18 pF	+/-50 ppm	+/-30 ppm	-40 to +85 °C
Q22FA2380193616	3.2 x 2.5 x 0.7mm	FA-238	52.000000 MHz	8 pF	+/-25 ppm	+/-30 ppm	-40 to +105 °C
Q22FA2380193716	3.2 x 2.5 x 0.7mm	FA-238	28.224000 MHz	12 pF	+/-20 ppm	+/-30 ppm	-20 to +70 °C
Q22FA2380193916	3.2 x 2.5 x 0.7mm	FA-238	16.588800 MHz	7 pF	+/-50 ppm	+/-50 ppm	-30 to +85 °C
Q22FA2380194216	3.2 x 2.5 x 0.7mm	FA-238	32.000000 MHz	16 pF	+/-50 ppm	+/-30 ppm	-40 to +85 °C
Product Number	LxWxH	Model	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q22FA23V0001216	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-40 to +80 °C
Q22FA23V0001816	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0002216	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0002616	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0002716	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C

編碼Q22FA23V0002216是愛普生公司精益求精研發的石英晶體諧振器，晶振的主要作用是通過與其他元器件的連接使用產生脈沖起到信號源的作用，這樣電路板在產品中就能夠?qū)崿F(xiàn)工作。了解的人都知道不管是小孩的高檔游戲機還是航空設備，需要數字顯示以及計時、控制的都會用到石英晶振。

像車載方面使用到的晶振型號自然必不可少。比如汽車中時鐘上到的32.768K晶振，車載音響中使用到的12M或者是16M、26M貼片石英晶振，倒車雷達中也有用到晶振，像3225封裝晶振16M、26M、32M都是雷達中比較常用的晶振.

Product Number16	LxWxH	進口晶振型號	Frequency	CL Value	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range
Q22FA23V0002816	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	15 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0002916	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0003016	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	20 pF	+/-30 ppm	+/-50 ppm	-20 to +60 °C
Q22FA23V0003316	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0003716	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0004416	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0004816	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0005216	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0006816	3.2 x 2.5 x 0.7mm	FA-238V晶振	14.318000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0006916	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-15 ppm	+/-15 ppm	-20 to +70 °C
Q22FA23V0008216	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	16 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0008516	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	8 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0008616	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0009516	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	16 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0010316	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	12.5 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0010616	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	11 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0010716	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-50 ppm	+/-50 ppm	-40 to +85 °C
Q22FA23V0011416	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	18 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0011916	3.2 x 2.5 x 0.7mm	FA-238V	12.500000 MHz	16 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C
Q22FA23V0012316	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	12 pF	+/-20 ppm	+/-30 ppm	-40 to +85 °C
Q22FA23V0013116	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	18 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C

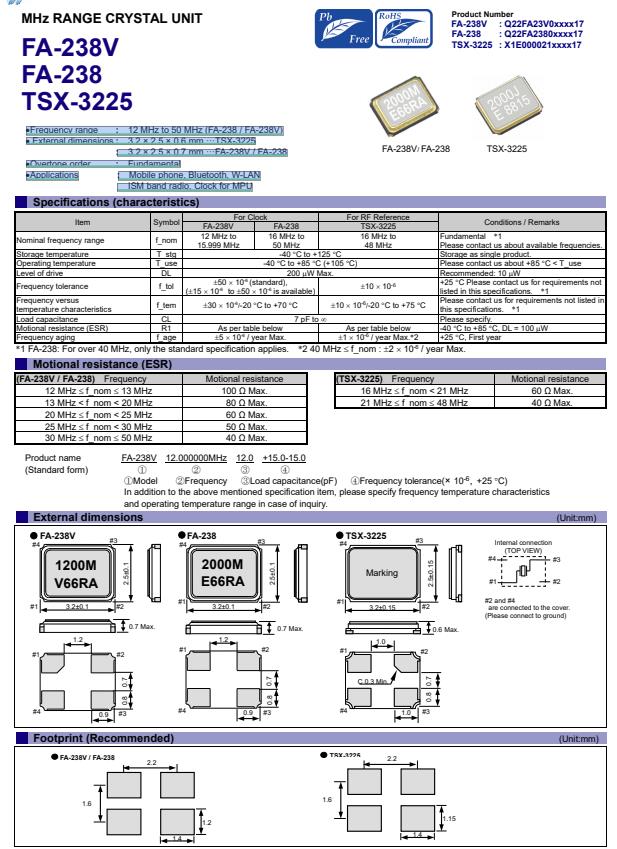

日本愛普生晶振擁有獨立自主研發設計的能力，通過不斷打磨推出了新一代的石英晶體諧振器產品FA-238V系列,編碼Q22FA23V0002216，頻率12.000000兆赫，尺寸(長×寬×高)3.2 × 2.5 × 0.7 mm，負載電容10pf，頻率公差+ / -30 ppm，特征公差+ / -30 ppm，溫度范圍-20到+70°C，從而實現對市場供應的快速響應.龍湖電子做為EPSON代理商,積極配合產品的推出免費為客戶提供樣品和選型技術指導，也是您最佳的合作伙伴。
