智能家居的首選既然是3225mm無源晶體?Q22FA23V0035816，經過幾十年的沉淀，愛普生公司憑著生產大量優質的晶振產品，成功吸引廣大用戶的關注，并以高于用戶的需求為目標，持續不斷向市場供應優良的產品，同時致力于打造自身最硬核的競爭力，開發高性價比無源晶振非常適合當下市場的需求，能夠滿足各個行業的應用程序，并提供專業化的技術和一流的服務。

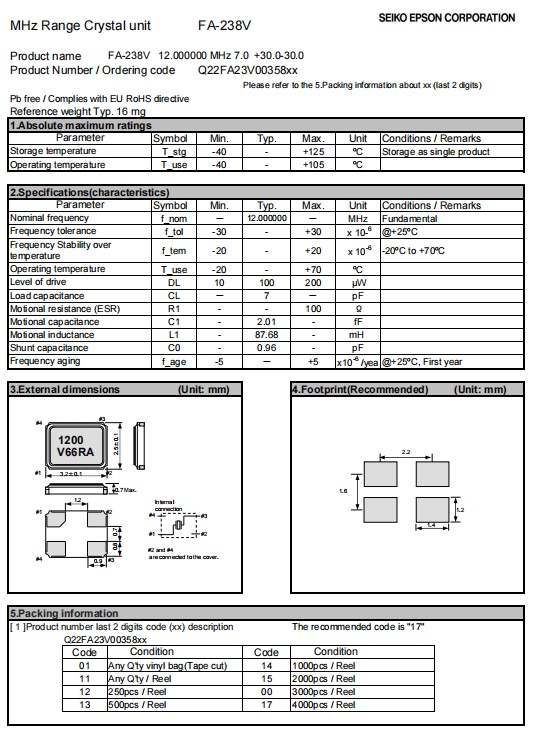

智能家居的首選既然是3225mm無源晶體?Q22FA23V0035816，日本進口愛普生晶振，FA-238V是一款超小型無源晶振，石英晶體諧振器，編碼Q22FA23V0035816，頻率12.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.7 mm，客戶負載電容7pf，頻率公差+ / -30 ppm，Fo / temp。特征公差+ / -20 ppm，溫度范圍-20至+70°C，具有低損耗，低耗能，耐熱，耐壓等特點，特別適用于儀器儀表，智能家居，數碼電子等產品，產品性能卓越，品質有保障。
                                                                                                                                                               產品編碼
|
 日本進口晶振 |
 型號
|
 頻率
|
 負載
|
 Freq.tol. @+25°C
|
 Freq.tol./Temp.range
|
 Temperature range
|
 ESR [Max]
|
| Q22FA23V0030716 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 8 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0031016 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 20 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0031416 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -40 to +85 °C | ≤ 80 Ω |
| Q22FA23V0032616 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-10 ppm | +/-23 ppm | -40 to +85 °C | ≤ 80 Ω |
| Q22FA23V0032716 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | +/-23 ppm | -40 to +85 °C | ≤ 100 Ω |
| Q22FA23V0033216 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0035816 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 7 pF | +/-30 ppm | +/-20 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0036716 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C | ≤ 80 Ω |
| Q22FA23V0037216 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 18 pF | +/-20 ppm | +/-30 ppm | -40 to +85 °C | ≤ 100 Ω |
| Q22FA23V0037316 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -40 to +85 °C | ≤ 80 Ω |
| Q22FA23V0037416 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0037516 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.800000 MHz | 15 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0037916 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.300000 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0038016 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.993000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0038516 |
3225石英晶振 |
FA-238V | 12.800000 MHz | 15 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C | ≤ 100 Ω |
| Q22FA23V0039616 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 7 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0039716 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0040016 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 12 pF | +/-15 ppm | +/-15 ppm | -20 to +70 °C | ≤ 100 Ω |
| Q22FA23V0040116 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.500000 MHz | 10 pF | +/-15 ppm | +/-15 ppm | -20 to +70 °C | ≤ 80 Ω |
| Q22FA23V0041916 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 15 pF | +/-15 ppm | +/-30 ppm | -20 to +70 °C | ≤ 80 Ω |
