亞馬遜、蘋果與谷歌、三星開源智能家居設備商兼容性FA-20H愛普生晶振Q24FA20H0016600

Zigbee和藍牙都是不適配IPv6的底層協議,例如ZigBee,它規定了要求的底層協議、專用的網絡層/傳輸層和專用的應用層.所以Matter與Zigbee、藍牙是互斥的協議,無法共同存在;而與Wi-Fi則是依賴關系.由此可見,Matter是基于傳輸層之上的應用層協議,愛普生晶振它依賴于以太網、Wi-Fi、Thread等底層協議.應用層為Matter、傳輸層為TCP/UDP、網絡層為IPv6、底層為適配IPv6的協議以太網、Wi-Fi、Thread,等等.智能家居設備商兼容性Matter1.0的誕生2019年12月智能家居開源標準Matter首次由亞馬遜、蘋果、谷歌、三星Smart Things和Zig Bee聯盟聯合發起提出.

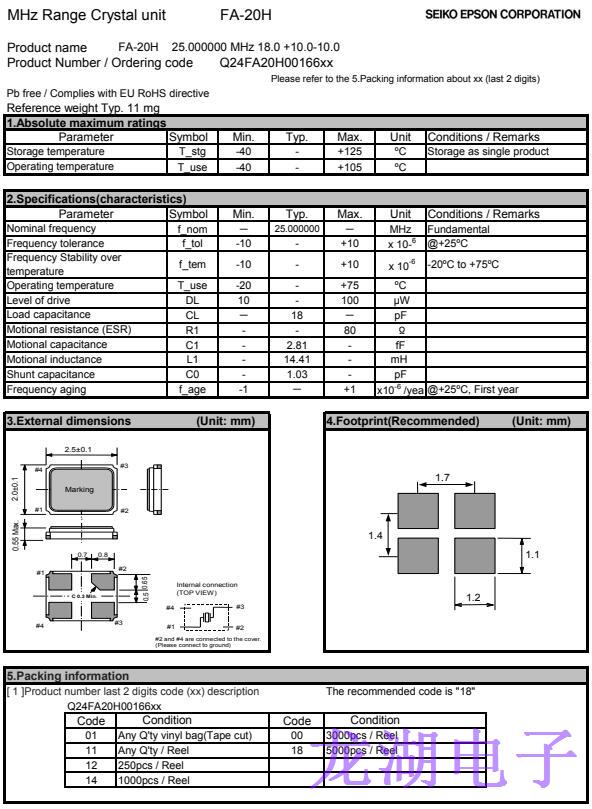

FA-20H愛普生晶振Q24FA20H0016600,亞馬遜蘋果與谷歌三星開源智能家居設備晶振

愛普生晶振編碼	長x寬x高	型號	石英晶振頻率	負載	頻率25°C	頻率公差	工作溫度范圍
Q24FA20H0015500	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	8 pF	+/-10 ppm	+/-15 ppm	-30 to +85 °C
Q24FA20H0015600	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	7 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0016600	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0016900	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0017200	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	20 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0017500	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0017600	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0019300	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0019600	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0020100	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0020200	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	14 pF	+/-30 ppm	+/-30 ppm	-20 to +75 °C
Q24FA20H0020800	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	13 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0020900	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0021400	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0022300	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0022500	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	8 pF	+/-10 ppm	+/-12 ppm	-20 to +70 °C
Q24FA20H0022800	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-30 to +85 °C
Q24FA20H0022900	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	6 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0023200	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C
Q24FA20H0023300	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	+/-10 ppm	+/-12 ppm	-20 to +85 °C
Q24FA20H0023800	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	+/-10 ppm	+/-19 ppm	-40 to +85 °C
Q24FA20H0024100	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	+/-30 ppm	+/-50 ppm	-20 to +70 °C
Q24FA20H0024200	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0024700	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	16 pF	+/-10 ppm	+/-30 ppm	-40 to +85 °C
Q24FA20H0024900	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	7 pF	+/-30 ppm	+/-20 ppm	-20 to +70 °C
Q24FA20H0025100	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-25 ppm	+/-25 ppm	-20 to +75 °C
Q24FA20H0026000	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C
Q24FA20H0026600	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-40 to +85 °C
Q24FA20H0027000	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-30 to +85 °C
Q24FA20H0027100	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-20 ppm	+/-14 ppm	-30 to +70 °C

當時還被稱為IP互聯家庭項目Project Connected HomeoverIP,簡稱CHIP.該項目旨在開發、推廣一項免除專利費的新連接協議,將Zigbee、Thread、藍牙和Wi-Fi等不同組件整合到一個總體標準中,以簡化智能家居設備商開發成本,石英晶振提高產品之間兼容性.展示了Matter與Zig Bee、藍牙、Wi-Fi的關系.OSI七層網絡模型大家都比較熟悉了,從高到低,依次為:應用層、表示層、會話層、傳輸層、網絡層、數據鏈路層、物理層.這里簡化了一下,將會話層和表示層合并到應用層,數據鏈路層和物理層合并到底層,形成新的網絡模型:應用層、傳輸層、網絡層、底層.
