頻率：19.2MHZ
尺寸：3.2*2.5mm
Microchip振蕩器,DSC1001CI1-019.2000T,6G以太網晶振，尺寸3.2*2.5mm，頻率19.2MHZ，歐美進口晶振，有源晶體振蕩器，進口有源晶振，四腳有源晶振，CMOS輸出振蕩器，3225有源晶振，OSC晶振，DSC1001/3/4是一種基于硅MEMS的CMOS振蕩器系列，提供出色的抖動和在廣泛供應范圍內的穩定性性能電壓和溫度。設備從1MHz至150MHz，電源電壓在1.8至3.3伏，溫度范圍高達-40°C至105°C。
DSC1001/3/4包含一個鋁硅諧振器它非常強健，幾乎不會受到壓力的影響相關斷裂，常見于基于晶體的振蕩器。在不犧牲性能和穩定性的情況下當今系統所需的無水晶設計允許更高級別的可靠性，使DSC1001/3/4是堅固耐用、工業和便攜式的理想選擇應力、沖擊和振動損壞基于石英晶體的系統。
有源晶體振蕩器產品適合用于移動應用程序，消費類電子產品，便攜式電子設備，DVR、CCTV、監控攝像頭，低姿態應用，工業應用等領域。Microchip振蕩器,DSC1001CI1-019.2000T,6G以太網晶振.
Microchip振蕩器,DSC1001CI1-019.2000T,6G以太網晶振，尺寸3.2*2.5mm，頻率19.2MHZ，歐美進口晶振，有源晶體振蕩器，進口有源晶振，四腳有源晶振，CMOS輸出振蕩器，3225有源晶振，OSC晶振，DSC1001/3/4是一種基于硅MEMS的CMOS振蕩器系列，提供出色的抖動和在廣泛供應范圍內的穩定性性能電壓和溫度。設備從1MHz至150MHz，電源電壓在1.8至3.3伏，溫度范圍高達-40°C至105°C。
DSC1001/3/4包含一個鋁硅諧振器它非常強健，幾乎不會受到壓力的影響相關斷裂，常見于基于晶體的振蕩器。在不犧牲性能和穩定性的情況下當今系統所需的無水晶設計允許更高級別的可靠性，使DSC1001/3/4是堅固耐用、工業和便攜式的理想選擇應力、沖擊和振動損壞基于石英晶體的系統。
有源晶體振蕩器產品適合用于移動應用程序，消費類電子產品，便攜式電子設備，DVR、CCTV、監控攝像頭，低姿態應用，工業應用等領域。Microchip振蕩器,DSC1001CI1-019.2000T,6G以太網晶振.

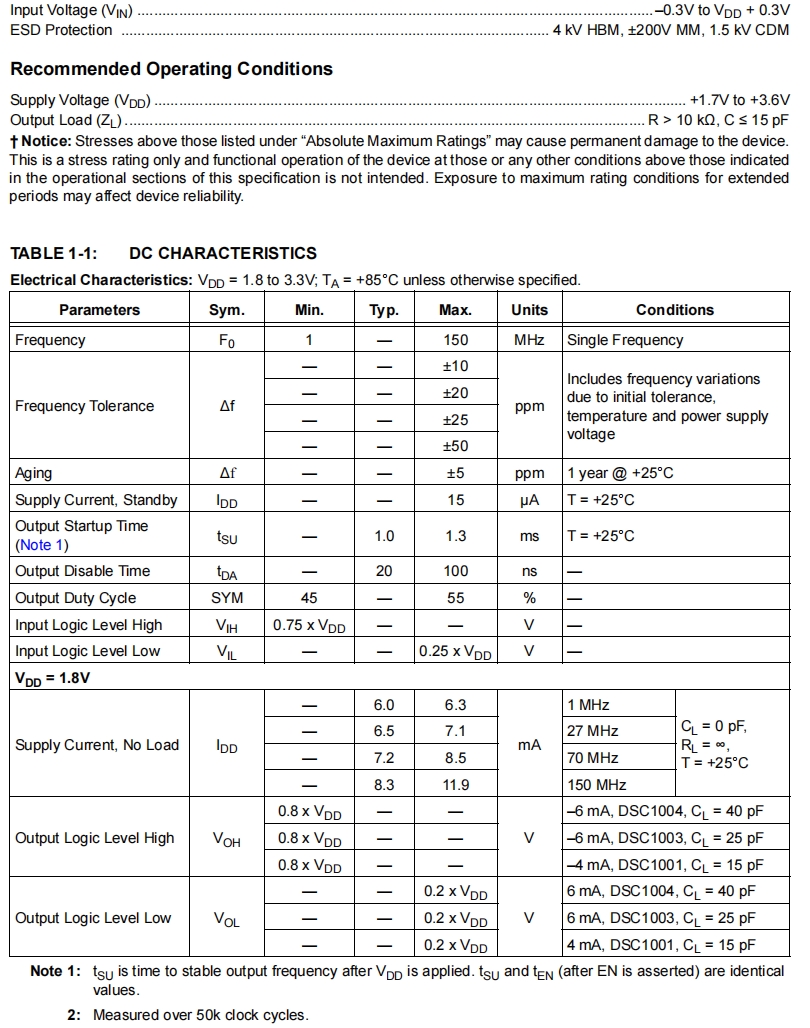

Microchip振蕩器,DSC1001CI1-019.2000T,6G以太網晶振 參數表
| Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||||||
| Frequency | F0 |
|
— | 19.2 | MHz | Single Frequency | ||||||||||
| Frequency Tolerance | Δf | ±10 | ppm |
Includes frequency variations due to initial tolerance, temperature and power supply voltage |
||||||||||||
| ±20 | ||||||||||||||||
| — | — | ±25 | ||||||||||||||
| ±50 | ||||||||||||||||
| Aging | Δf | ±5 | ppm | 1 year @ +25°C | ||||||||||||
| Supply Current, Standby | IDD | — | — | 15 | µA | T = +25°C | ||||||||||
|
Output Startup Time (Note 1) |
tSU | — | 1.0 | 1.3 | ms | T = +25°C | ||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | ||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | ||||||||||||
| Input Logic Level High | VIH | 0.75 x V DD | — | — | V | — | ||||||||||
| Input Logic Level Low | VIL | 0.25 x V DD | V | |||||||||||||
| V DD = 1.8V | ||||||||||||||||
| Supply Current, No Load | IDD | — | 6.0 | 6.3 | mA | 1 MHz |
CL = 0 pF, RL = ∞ , T = +25°C |
|||||||||
| 6.5 | 7.1 | 27 MHz | ||||||||||||||
| 7.2 | 8.5 | 70 MHz | ||||||||||||||
| — | 8.3 | 11.9 | 150 MHz | |||||||||||||
| Output Logic Level High | V OH | 0.8 x V DD | V | –6 mA, DSC1004, CL = 40 pF | ||||||||||||
| 0.8 x V DD | –6 mA, DSC1003, CL = 25 pF | |||||||||||||||
| 0.8 x V DD | — | — | –4 mA, DSC1001, CL = 15 pF | |||||||||||||
| Output Logic Level Low | VOL | — | — | 0.2 x V DD | V | 6 mA, DSC1004, CL = 40 pF | ||||||||||
| 0.2 x V DD | 6 mA, DSC1003, CL = 25 pF | |||||||||||||||
| — | — | 0.2 x V DD | 4 mA, DSC1001, CL = 15 pF | |||||||||||||
Microchip振蕩器,DSC1001CI1-019.2000T,6G以太網晶振 尺寸圖

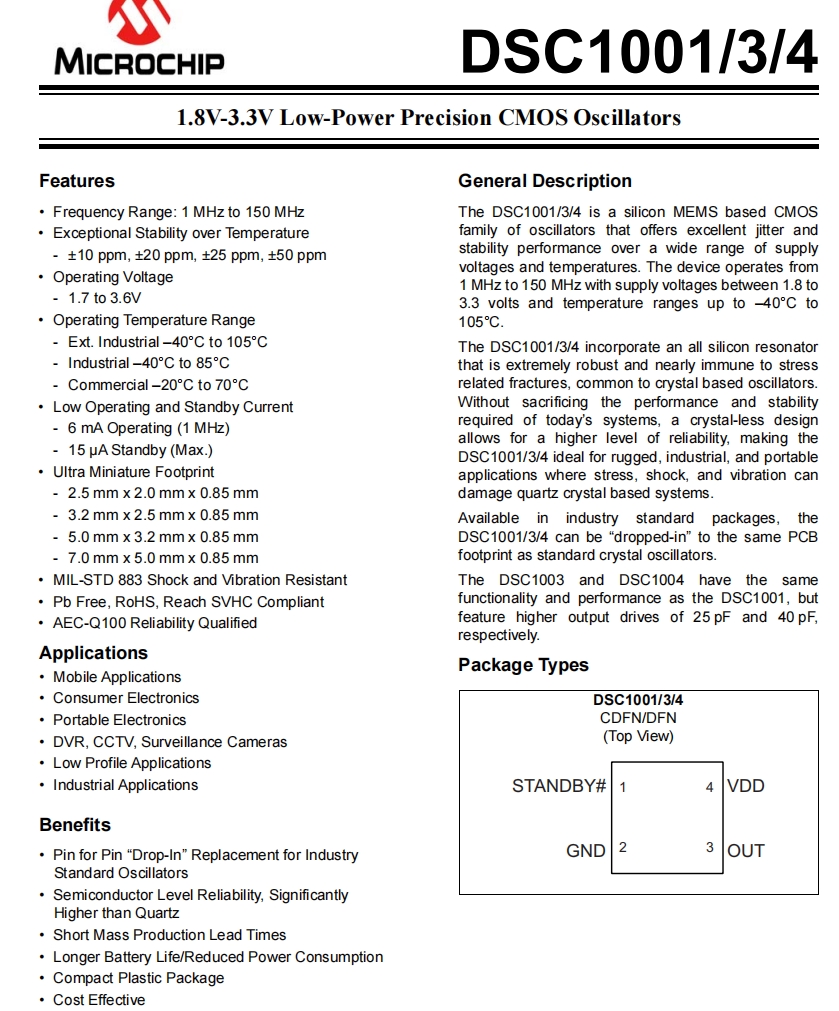

OSC晶振產品特性：
頻率范圍：1MHz至150MHz
卓越的溫度穩定性
-±10 ppm、±20ppm、±25ppm、±50ppm
工作電壓-1.7至3.6伏
工作溫度范圍
外部工業–40°C至105°C
工業–40°C至85°C
商用–20°C至70°C
低工作和備用電流
-6 mA工作（1MHz）
-15μA備用（最大）
超小型占地面積
-2.5毫米x 2.0毫米x 0.85毫米
-3.2毫米x 2.5毫米x 0.85毫米
-5.0毫米x 3.2毫米x 0.85毫米
-7.0毫米x 5.0毫米x 0.85毫米
MIL-STD 883抗沖擊和振動
無鉛，RoHS，達到SVHC標準
AEC-Q100可靠性合格
更多相關Microchip晶振型號
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Type 類型 | Frequency 頻率 | Voltage - Supply電壓 |
| DSC1001CI1-011.0592T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 11.0592MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-012.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-014.7456T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-016.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-019.2000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 19.2MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-020.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-024.5760T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-025.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-026.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-027.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-033.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-033.3330T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-033.3333T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33.3333MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-048.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-050.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-060.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 60MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-001.8432T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 1.8432MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-003.6864T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-004.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 4MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-005.0196T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 5.0196MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-008.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-010.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-012.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-014.7456T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-016.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-019.2000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 19.2MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-020.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-024.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-024.5760T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.576MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-025.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-027.0000T | Microchip晶振 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-030.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 30MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-032.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 32MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-033.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-033.3000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33.3MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-033.3300T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33.33MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-033.3330T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-048.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-050.0000B | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-050.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-060.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 60MHz | 1.8 V ~ 3.3 V |
| DSC1003AI2-050.0000T | Microchip振蕩器 | DSC1003 | MEMS (Silicon) | 50MHz | 1.8 ~ 3.3V |
| DSC1004AI2-040.0000T | Microchip振蕩器 | DSC1004 | MEMS (Silicon) | 40MHz | 1.8 ~ 3.3V |
| DSC1018CI1-038.4000T | Microchip振蕩器 | DSC1018 | MEMS (Silicon) | 38.4MHz | 1.8V |
| DSC1018DI1-012.0000T | Microchip振蕩器 | DSC1018 | MEMS (Silicon) | 12MHz | 1.8V |
| DSC1018DI1-025.0000T | Microchip振蕩器 | DSC1018 | MEMS (Silicon) | 25MHz | 1.8V |
| DSC1018DI1-028.6360T | Microchip振蕩器 | DSC1018 | MEMS (Silicon) | 28.636MHz | 1.8V |
| DSC1033AI2-008.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 8MHz | 3.3V |
| DSC1033AI2-033.3333T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 33.3333MHz | 3.3V |
| DSC1033AI2-054.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 54MHz | 3.3V |
| DSC1033BI2-024.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V |
| DSC1033BI2-025.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V |
| DSC1033BI2-027.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 27MHz | 3.3V |
| DSC1033BI2-048.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V |
| DSC1033BI2-048.4610T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 48.461MHz | 3.3V |
| DSC1033CI1-001.8432T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 1.8432MHz | 3.3V |
| DSC1033CI1-007.3728T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 7.3728MHz | 3.3V |
| DSC1033CI1-008.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 8MHz | 3.3V |
| DSC1033CI1-010.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 10MHz | 3.3V |
| DSC1033CI1-011.0592T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 11.0592MHz | 3.3V |
| DSC1033CI1-012.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V |
| DSC1033CI1-012.8000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 12.8MHz | 3.3V |
| DSC1033CI1-014.7456T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 14.7456MHz | 3.3V |
| DSC1033CI1-016.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 16MHz | 3.3V |
| DSC1033CI1-018.4320T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 18.432MHz | 3.3V |
| DSC1033CI1-020.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 20MHz | 3.3V |
| DSC1033CI1-024.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V |
| DSC1033CI1-024.5760T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24.576MHz | 3.3V |
| DSC1033CI1-025.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V |
| DSC1033CI1-027.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 27MHz | 3.3V |
| DSC1033CI1-030.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 30MHz | 3.3V |
| DSC1033CI1-033.3330T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 33.333MHz | 3.3V |
| DSC1033CI1-040.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 40MHz | 3.3V |
| DSC1033CI1-048.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V |
| DSC1033CI1-050.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V |
| DSC1033CI1-060.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 60MHz | 3.3V |
| DSC1033DI1-001.8432T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 1.8432MHz | 3.3V |
| DSC1033DI1-004.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 4MHz | 3.3V |
| DSC1033DI1-007.3728T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 7.3728MHz | 3.3V |
| DSC1033DI1-008.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 8MHz | 3.3V |
| DSC1033DI1-010.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 10MHz | 3.3V |
| DSC1033DI1-011.0592T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 11.0592MHz | 3.3V |
| DSC1033DI1-012.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V |
| DSC1033DI1-014.7456T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 14.7456MHz | 3.3V |
| DSC1033DI1-016.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 16MHz | 3.3V |
| DSC1033DI1-018.4320T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 18.432MHz | 3.3V |
| DSC1033DI1-020.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 20MHz | 3.3V |
| DSC1033DI1-024.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V |
| DSC1033DI1-025.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V |
| DSC1033DI1-027.0000T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 27MHz | 3.3V |
| DSC1033DI1-029.4912T | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 29.4912MHz | 3.3V |
