SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED數字設備晶振

頻率：12MHZ

尺寸：7.0×5.0mm

SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED數字設備晶振,進口有源振蕩器,歐美進口晶振,OSC晶振,SMD振蕩器,時鐘振蕩器,12MHZ石英晶體振蕩器,7050mm晶振,尺寸7.0×5.0mm,頻率12MHZ,低電壓晶振,低抖動晶振,低損耗晶振,高品質晶振,智能穿戴晶振,便攜式設備晶振,數字設備晶振,小型設備晶振,儀器儀表晶振.

訂購熱線：0755-29952551

LH-1

CTS-1

SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED數字設備晶振特點:

表面安裝HCMOS/TTL兼容振蕩器

HCMOS/TTL輸出

3.3V電源電壓

7050晶振陶瓷SMD封裝

可用于磁帶和卷軸

LH-2

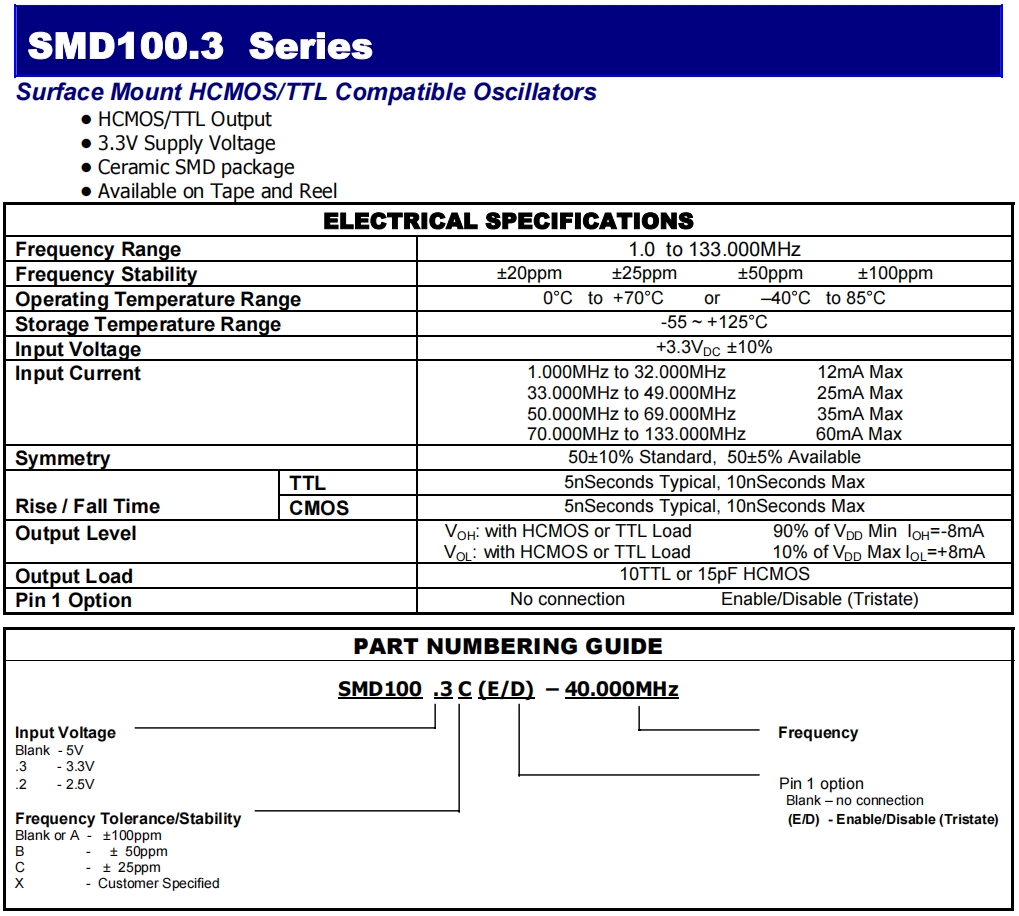

CTS-2 SMD100.3C(E/D)-12.000MHz,SMD100.3系列,7050mm,12MHZ,GED數字設備晶振 參數表

ELECTRICAL SPECIFICATIONS
Frequency Range		12.000MHz
Frequency Stability		±20ppm ±25ppm ±50ppm ±100ppm
Operating Temperature Range		0°C to +70°C or –40°C to 85°C
Storage Temperature Range		-55 ~ +125°C
Input Voltage		+3.3VDC ±10%
Input Current		1.000MHz to 32.000MHz 33.000MHz to 49.000MHz 50.000MHz to 69.000MHz 70.000MHz to 133.000MHz		12mA Max 25mA Max 35mA Max 60mA Max
Symmetry		50±10% Standard, 50±5% Available
Rise / Fall Time	TTL	5nSeconds Typical, 10nSeconds Max
	CMOS	5nSeconds Typical, 10nSeconds Max
Output Level		VOH : with HCMOS or TTL Load VOL : with HCMOS or TTL Load	90% of VDD Min IOH=-8mA 10% of VDD Max IOL=+8mA
Output Load		10TTL or 15pF HCMOS
Pin 1 Option		No connection Enable/Disable (Tristate)
