低相位的電子門控制器專用有源晶振X1G005601002600，偉大的愛普生公司從名不經傳的小型公司到如今的聞名企業，這一路上與困難作斗爭的過程是我們無法想象的，只有當經過無數的困難仍然能夠堅持初心，那份美好的初心才是我們追崇的力量源泉，愛普生推出的石英晶振廣受市場的歡迎，同時也贏得廣大用戶的稱贊。

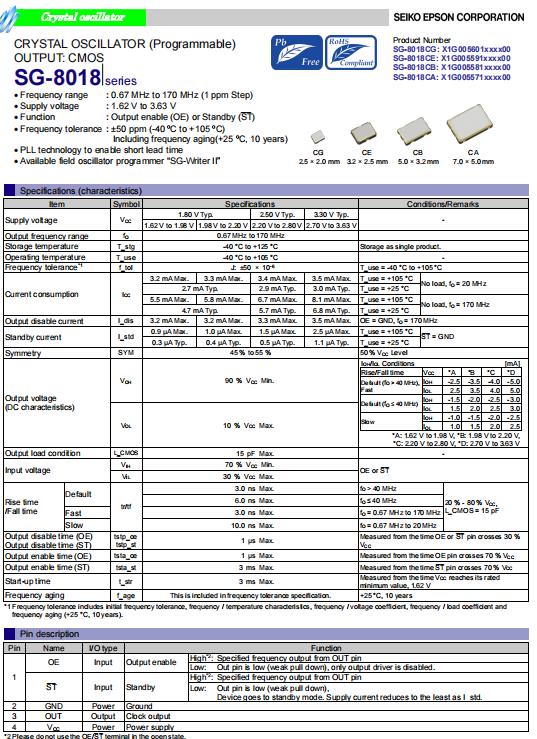

日本愛普生晶振公司推出了SG-8018CG晶振，編碼X1G005601002600，頻率12.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作溫度-40至+105°C，頻率公差±50ppm，額外的OptionsN /OSC類型可編程時鐘OSC，這是 一款CMOS輸出有源晶振，石英晶體振蕩器，具有良好的穩定性能，十分適合用于電子門控制器，北斗導航，智能家居，電子數碼等行業。

Product Number	Model	Frequency	OSC晶振	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005601002500	SG-8018CG	12.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601002600	SG-8018CG	12.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601002700	SG-8018CG	10.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601002800	SG-8018CG	10.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601002900	SG-8018CG	27.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003000	SG-8018CG	27.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003100	SG-8018CG	32.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003200	SG-8018CG	32.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003300	SG-8018CG	8.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003400	SG-8018CG	8.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003500	SG-8018CG	14.745600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003600	SG-8018CG	14.745600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003700	SG-8018CG	12.288000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003800	SG-8018CG	12.288000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601003900	SG-8018CG	33.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004000	SG-8018CG	33.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004100	SG-8018CG	30.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004200	SG-8018CG	30.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004300	SG-8018CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004400	SG-8018CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004500	SG-8018CG	24.576000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601004600	SG-8018CG	24.576000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
