用于空調溫度控制器晶振應用32.768K晶振X1G005571006100，愛普生公司作為日系晶振品牌公司，擁有專業化的專業知識，以及一流的服務，致力于幫助用戶解決在晶體行業所遇到的問題，并提供高質量，低損耗的有源晶振產品。在幫助他人的同時優化自我，完善自我，使得愛普生公司能夠在這個激烈的市場中找到自身的價值和定位。
                                                                         Product Number
|
  Model
|
Frequency |
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
| X1G005571005200 | SG-8018CA | 66.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005300 | SG-8018CA | 19.660800 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005400 | SG-8018CA | 19.660800 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005500 | SG-8018CA | 125.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005600 | SG-8018CA | 125.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005700 | SG-8018CA | 33.333300 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005800 | SG-8018CA | 33.333300 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571005900 | SG-8018CA | 70.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006000 | SG-8018CA | 2.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006100 | SG-8018CA | 32.768K晶振 | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006200 | SG-8018CA | 41.439990 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006300 | SG-8018CA | 47.185920 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006400 | SG-8018CA | 66.666600 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006500 | SG-8018CA | 133.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006600 | SG-8018CA | 33.177600 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006700 | SG-8018CA | 32.768000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006800 | SG-8018CA | 2.457600 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571006900 | SG-8018CA | 1.843200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007000 | SG-8018CA | 3.686400 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |

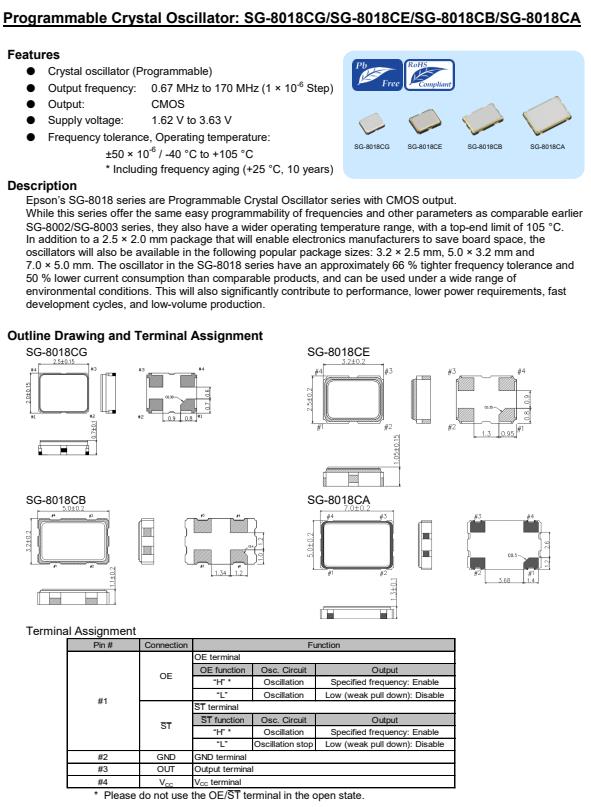

愛普生的SG-8018系列是可編程晶體振蕩器系列CMOS輸出。OSC晶振編碼X1G005571006100，這個系列提供了頻率和其他參數的可編程性SG-8002/SG-8003系列，它們也具有更廣泛的工作溫度范圍，最高極限為105°C。尺寸7.0 × 5.0 mm。具備低損耗，低抖動，高品質之特點，非常適合用于空調溫度控制器晶振應用。SG-8018系列振蕩器的頻率容忍度約為66%比同類產品低50%的電流消耗，適用范圍廣環境條件。這也將大大有助于性能，更低的功率要求，快速開發周期和低量生產。
用于空調溫度控制器晶振應用32.768K晶振X1G005571006100，晶體振蕩器的主要特性之一是工作溫度內的穩定性，它是決定振蕩器價格的重要因素。穩定性愈高或溫度范圍愈寬，器件的價格亦愈高。工業級標準規定的-40～+75℃這個范圍往往只是出于設計者們的習慣，倘若-30～+70℃已經夠用，那么就不必去追求更寬的溫度范圍。設計工程師要慎密決定特定應用的實際需要，然后規定振蕩器的穩定度。指標過高意味著花錢愈多。晶體老化是造成頻率變化的又一重要因素。
|
Product Number
|
Model
|
Frequency |
LxWxH
|
Output Wave
|
Supply Voltage
|
Ope Temperature
|
| X1G005571007100 | SG-8018CA | 78.643200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007200 | SG-8018CA | 22.222200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007300 | SG-8018CA | 57.143000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007400 | SG-8018CA | 12.272700 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007500 | SG-8018CA | 27.833300 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007600 | SG-8018CA | 6.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007700 | SG-8018CA | 25.000750 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007800 | SG-8018CA | 16.500000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571007900 | SG-8018CA | 80.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008000 | SG-8018CA | 16.128000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008100 | SG-8018CA | 58.982400 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008200 | SG-8018CA | 58.982400 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008300 | SG-8018CA | 29.491200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008400 | SG-8018CA | 20.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008500 | SG-8018CA | 10.000000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008600 | SG-8018CA | 15.200000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008700 | SG-8018CA | 16.384000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008800 | SG-8018CA | 61.440000 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571008900 | SG-8018CA | 4.915200 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005571009000 | SG-8018CA | 19.660800 MHz | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
