26M溫補晶振X1G005241000800十分適合藍牙燈控模塊，愛普生公司成立至今，一直以來秉持著誠信經驗為核心價值觀開展業務，并以承諾,和創新為主旨。作為一個致力于幫助廣大用戶解決在晶體行業所遇到的問題，同時有著多元化的進口晶振產品線，并提供各式各樣的服務，所生產出來的產品性能優越，價格低廉的產品，通過持續成長，不斷優化自身的產品，以高于用戶的需求為目標。

Product Number	EPSON晶振	Frequency	LxWxH	Output Wave	Supply Voltage	F.Tol@25°C	Ope Temperature
X1G006021000314	TG5032CKN	50.000000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061004514	TG-5510CB	25.000000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006061004814	TG-5510CB	50.000000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C
X1G006061007614	TG-5510CB	30.720000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061008214	TG-5510CB	38.400000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061009014	TG-5510CB	25.000000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061009214	TG-5510CB	25.600000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061009414	TG-5510CB	12.800000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061009514	TG-5510CB	20.000000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061009714	TG-5510CB	50.000000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G006061009814	TG-5510CB	10.000000 MHz	5.00 x 3.20 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G005241000200	TG5032SGN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241000300	TG5032SGN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241000400	TG5032SGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241000700	TG5032SGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241000800	TG5032SGN	26.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241000900	TG5032SGN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241001000	TG5032SGN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	2.700 to 3.000 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241001200	TG5032SGN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	2.700 to 3.000 V	+/-1.0 ppm	-40 to ++85 °C
X1G005241001300	TG5032SGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C

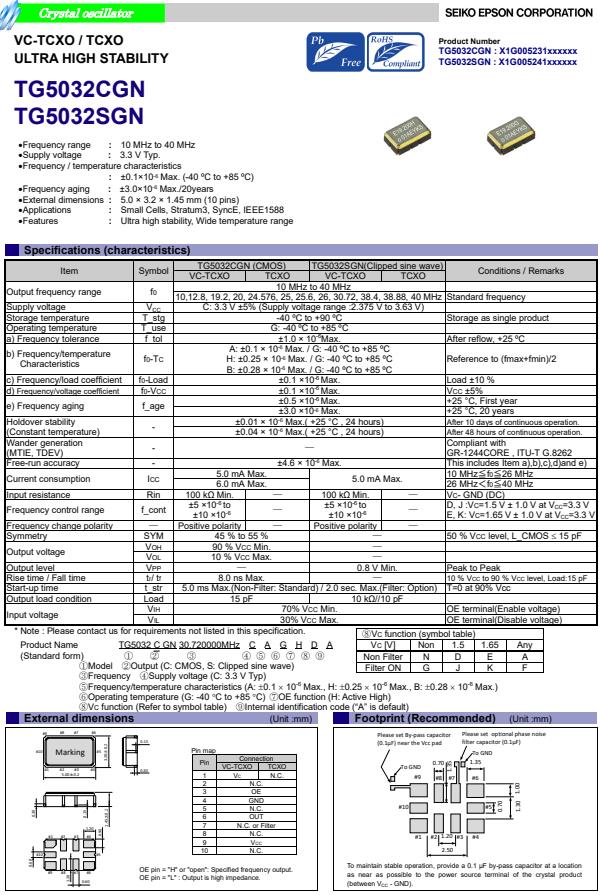

愛普生晶振推出這款TG5032SGN，TCXO晶振編碼X1G005241000800，頻率26.000000兆赫，輸出剪波正弦波，電源電壓3.13 ~ 3.46 V，電源電壓(一般)3.300 V，尺寸(LxWxH)5.0 x 3.2 x 1.4 mm，操作溫度-40至++85°C，頻率公差+/- 1.0 ppm，具有良好的耐壓性能，非常適合于藍牙燈控模塊，醫療設備，無線模塊，儀器設備等領域。
