當前位置：首頁 » 進口晶振 » 愛普生晶振 » EPSON光纖通訊晶振,X1M000461000600,XG5032HAN低抖動晶振

prevnext

EPSON光纖通訊晶振,X1M000461000600,XG5032HAN低抖動晶振

頻率：100.000000MHz

尺寸：5.0x3.2x1.4mm

EPSON光纖通訊晶振,X1M000461000600,XG5032HAN低抖動晶振，日本進口晶振，EPSON愛普生晶振，型號：XG5032HAN，編碼為：X1M000461000600，頻率為：100.000000MHz，小體積晶振尺寸：5.0x3.2x1.4mm封裝，六腳貼片晶振，HCSL輸出差分晶振，差分晶體振蕩器，有源晶振，石英晶體振蕩器，石英晶振，低抖動表面聲波(SAW)振蕩器 (SPSO)，SAW單元的極低抖動振蕩器。具有超小型，輕薄型，低抖動，低功耗，低耗能，低電源電壓，低損耗，低相位噪聲，低電平，滿足產品低消耗電流的特點。石英晶振被廣泛應用于：通訊設備、機頂盒、無線網絡，藍牙模塊，物聯網，光端機、6GWIFI，安防設備、路由器/交換機、儀器儀表、光纖通訊，10G以太網，導航儀等應用。

訂購熱線：0755-29952551

LH-1

LH-2

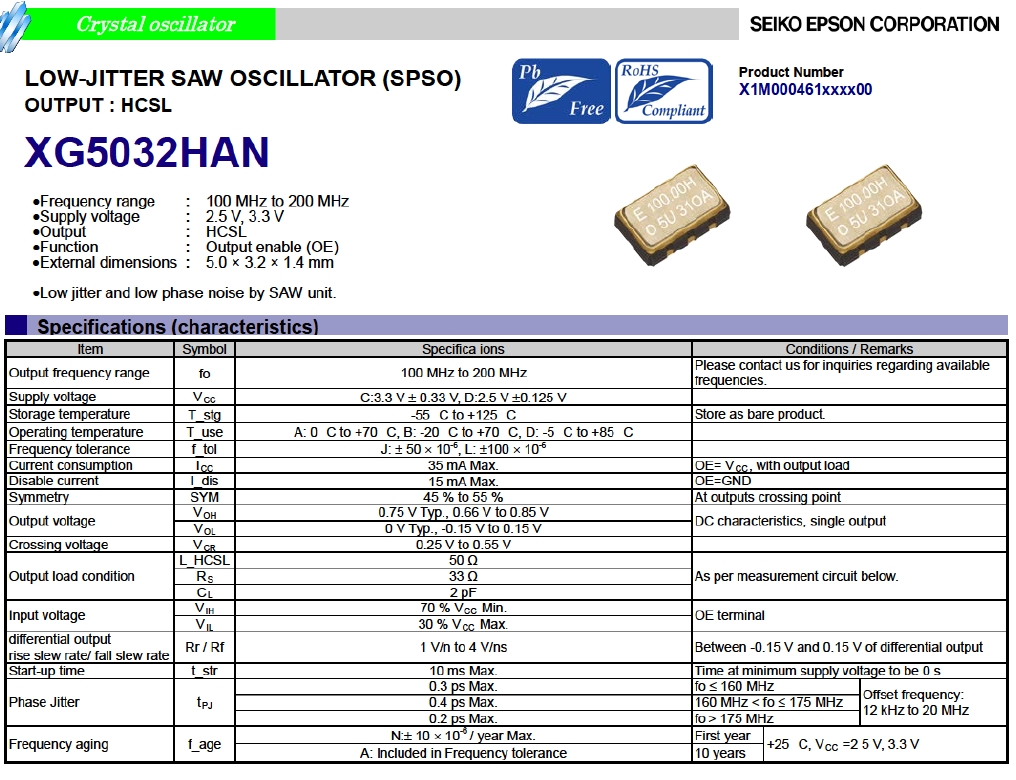

EPSON光纖通訊晶振,X1M000461000600,XG5032HAN低抖動晶振 參數表

Item	Symbol	XG5032HAN	Conditions / Remarks
Output frequency range	f0	100MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	C : 3.3V ± 0.33V
		D : 2.5V ± 0.125V
Storage temperature	T_stg	-55°C to +125°C	Store as bare product.
Operating temperature *1	T_use	A : 0°C to +70°C
		B : -20°C to +70°C
		D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6
		L : ±100 × 10-6
Current consumption	ICC	35mA Max.	OE = VCC , with output load
Disable current	I_dis	15mA Max.	OE = GND
Symmetry	SYM	45% to 55%	at outputs crossing point
Output voltage	VOH	0.75V Typ. , 0.66V to 0.85V	DC characteristics,Single output
	VOL	0 V Typ. , -0.15V to 0.15V
Crossing Voltage	Vcr	0.25V to 0.55V
Input voltage	VIH	70% VCC Min.	OE terminal
	VIL	30% VCC Max.
differential output	Rr / Rf	1V/n to 4V/ns	Between -0.15% and 0.15 defferential output
rise slew rate/
fall slew rate
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.3ps Max.	f0 ≦ 160 MHz	Offset frequency:
		0.4ps Max.	160 MHz < f0 ≦ 175 MHz	12kHz to 20MHz
		0.2ps Max.	f0 > 175 MHz
Frequency aging	f_aging	± 10 × 10-6 / year Max.	First year	+25°C , First year
		A : Included in Frequency tolerance	10years	VCC = 2.5V , 3.3V

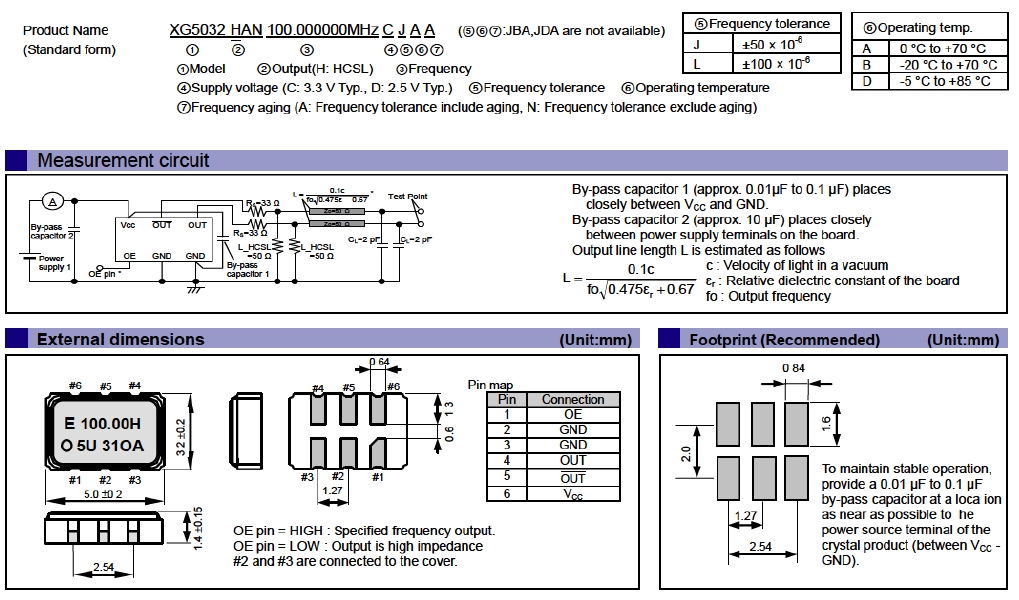

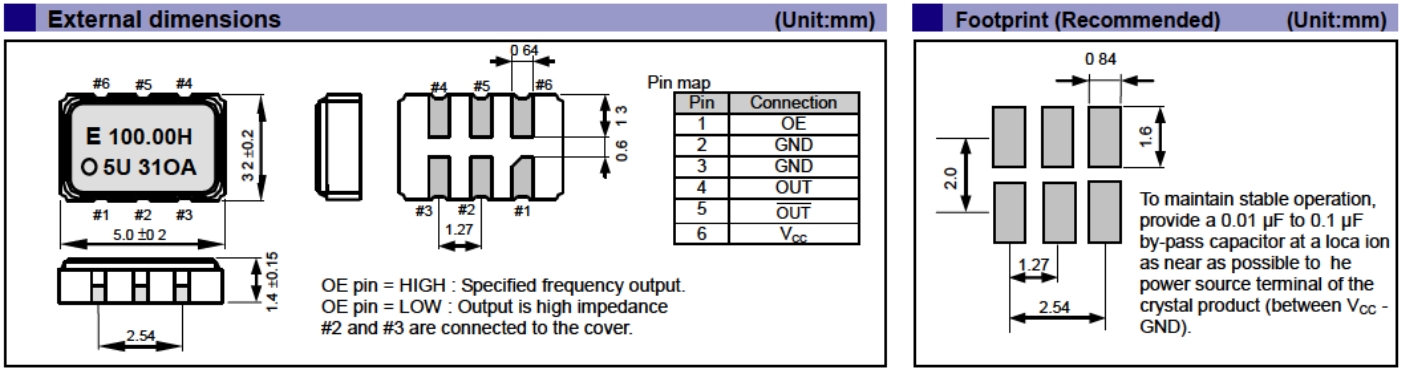

EPSON光纖通訊晶振,X1M000461000600,XG5032HAN低抖動晶振 尺寸圖

EPSON光纖通訊晶振,X1M000461000600,XG5032HAN低抖動晶振

頻率范圍：100MHz~200MHz

低抖動表面聲波(SAW)振蕩器 (SPSO)

電源電壓：2.5V，3.3V

輸出：HCSL 差分晶振

外形尺寸：5.0x3.2x1.4mm

功能：使能（OE）

SAW 單元的極低抖動振蕩器

晶振編碼	進口晶振	型號	頻率	尺寸	輸出方式
X1M000091000100	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000200	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000300	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000400	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000500	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000600	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000700	EPSON晶振	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000800	EPSON晶振	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091000900	EPSON晶振	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000091001000	EPSON晶振	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000101000200	EPSON晶振	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL
X1M000431000400	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000600	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000700	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000800	EPSON晶振	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431000900	振蕩器	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431001000	EPSON晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000431001100	EPSON晶振	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL
X1M000461000100	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000200	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000300	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
X1M000461000600	EPSON晶振	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL
