6G網絡差分晶振,愛普生SPXO振蕩器MG7050HAN,X1M0004310011，尺寸為7.00x5.00x1.60mm，頻率為156.25MHz，輸出邏輯HCSL，HCSL輸出差分晶振，有源差分晶振，日本進口差分晶振，HCSL差分晶體振蕩器，高頻差分晶振，低抖動差分晶振，低相噪差分晶振，低相位差分晶振，低功耗差分晶振，6G無線設備差分晶振，低電壓差分晶振，網絡設備差分晶振，7050mm差分晶振，產品具備低抖動低相位低電壓的特點，可滿足各大應用程序的需求，好比參考時鐘包括服務器，網絡等領域。
產品為HCSL高頻石英晶體振蕩器使用SAW的基本振蕩輸出諧振器。這樣實現了低抖動和低抖動噪聲頻率在100 ~ 200mhz，且適用參考時鐘包括服務器、存儲和網絡，以及儀器儀表等。6G網絡差分晶振,愛普生SPXO振蕩器MG7050HAN,X1M0004310011.
6G網絡差分晶振,愛普生SPXO振蕩器MG7050HAN,X1M0004310011，尺寸為7.00x5.00x1.60mm，頻率為156.25MHz，輸出邏輯HCSL，HCSL輸出差分晶振，有源差分晶振，日本進口差分晶振，HCSL差分晶體振蕩器，高頻差分晶振，低抖動差分晶振，低相噪差分晶振，低相位差分晶振，低功耗差分晶振，6G無線設備差分晶振，低電壓差分晶振，網絡設備差分晶振，7050mm差分晶振，產品具備低抖動低相位低電壓的特點，可滿足各大應用程序的需求，好比參考時鐘包括服務器，網絡等領域。
產品為HCSL高頻石英晶體振蕩器使用SAW的基本振蕩輸出諧振器。這樣實現了低抖動和低抖動噪聲頻率在100 ~ 200mhz，且適用參考時鐘包括服務器、存儲和網絡，以及儀器儀表等。6G網絡差分晶振,愛普生SPXO振蕩器MG7050HAN,X1M0004310011.
6G網絡差分晶振,愛普生SPXO振蕩器MG7050HAN,X1M0004310011 參數表
| Item | Symbol | Specifications | Conditions / Remarks | ||
|---|---|---|---|---|---|
| Output frequency range | f0 | 156.25 MHz | Please contact us about available frequencies. | ||
| 100MHz , 125MHz , 156.25MHz , 200MHz | Standard frequency | ||||
| Supply voltage | VCC | D : 2.5V ± 0.125V | C : 3.3V ± 0.33V | VCC1 and VCC2 need same voltage | |
| Storage temperature | T_stg | -55°C to +125°C | Store as bare product after packing | ||
| Operating temperature | T_use |
A : 0°C to +70°C B : -20°C to +70°C D : -5°C to +85°C |
|||
| Frequency tolerance *1 | f_tol |
J : ± 50 × 10-6 L : ±100 × 10-6 |
|||
| Current consumption | ICC |
55 mA Typ. 84 mA Max. |
60 mA Typ. 90 mA Max. |
2-outputs |
OE = VCC with L_HCSL |
|
95 mA Typ. 128 mA Max. |
100 mA Typ. 136 mA Max. |
4-outputs | |||
| Disable current | I_dis |
11 mA Typ. 23 mA Max. |
12 mA Typ. 25 mA Max. |
2-outputs | OE = GND |
|
15 mA Typ. 28 mA Max. |
16 mA Typ. 30 mA Max. |
4-outputs | |||
| Symmetry | SYM | 45%to 55% | At outputs crossing point | ||
| Output voltage | VOH | 0.66 V to 0.85 mV | DC characteristics | ||
| VOL | -0.15 V to 0.15 V | ||||
|
Output load condition |
L_HCSL |
50Ω or 42.2Ω, with CL = 2pF, Rs = 33Ω or 27Ω |
|||
| Input voltage | VIH | 70% VCC Min. | OE and ZSEL terminals | ||
| VIL | 30% VCC Max. | ||||
| Rise time / Fall time | Rr / Rf | 1 V/ns to 4 V/ns | Between -0.15 V and 0.15 V of differential output. | ||
| Start-up time | t_str | 5 ms Typ., 10 ms Max. | Time at minimum supply voltage to be 0 s | ||
| Phase Jitter | tPJ | 0.19 ps Typ. | 0.16 ps Typ. | f0 = 100MHz |
Offset frequency: 12kHz to 20MHz |
| 0.18 ps Typ. | 0.15 ps Typ. | f0 = 125MHz | |||
| 0.16 ps Typ. | 0.13 ps Typ. | f0 = 156.25MHz | |||
| 0.14 ps Typ. | 0.12 ps Typ. | f0 = 200MHz | |||
| 0.3 ps Max. | |||||
| Skew | t_skew | 20ps Typ. 50ps Max. | FSEL = H | ||
| Aging | f_aging | N : ± 10 × 10-6 / year Max. | First year |
+25°C, VCC = 2.5V , 3.3V |
|
| A : Included in Frequency tolerance *2 | 10 years | ||||
6G網絡差分晶振,愛普生SPXO振蕩器MG7050HAN,X1M0004310011 尺寸圖

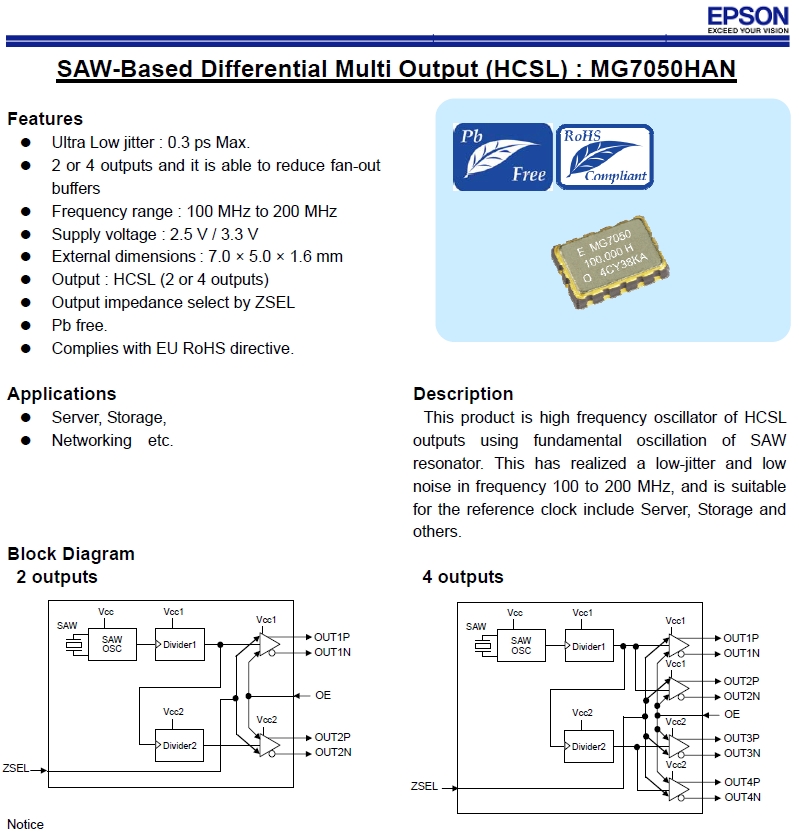

有源晶體振蕩器產品特性：
超低抖動:0.3 ps最大值。
2路或4路輸出，能夠減少扇出
緩沖區
頻率范圍:100mhz ~ 200mhz
供電電壓:2.5 V / 3.3 V
外形尺寸:7.0 × 5.0 × 1.6 mm
輸出:HCSL(2或4個輸出)
輸出阻抗由ZSEL選擇
無鉛。
符合歐盟RoHS指令。
