MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振

頻率：156.250000MHz

尺寸：7.0x5.0x1.6mm

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振，日本進口晶振，EPSON愛普生晶振，型號：MG7050HAN，編碼為：X1M000431001000，頻率為：156.250000MHz，小體積晶振尺寸：7.0x5.0x1.6mm封裝，14墊腳貼片晶振，HCSL輸出差分晶振，差分晶體振蕩器，石英晶體振蕩器，有源晶振，石英晶振，SMD晶振。具有超小型，輕薄型，低相位噪聲，低抖動，低功耗，低電源電壓，高精度，高性能，高品質等特點。本產品是利用鋸波諧振器的基本振蕩的HCSL輸出的高頻振蕩器。這實現了頻率為100~200MHz的低抖動和低噪聲。適用于：移動通訊設備，服務器、導航儀，存儲，網絡，路由器，交換機、物聯(lián)網，無線網絡，藍牙模塊晶振，SATA，SAS，光纖通信，10G以太網等應用。

訂購熱線：0755-29952551

LH-1

LH-2

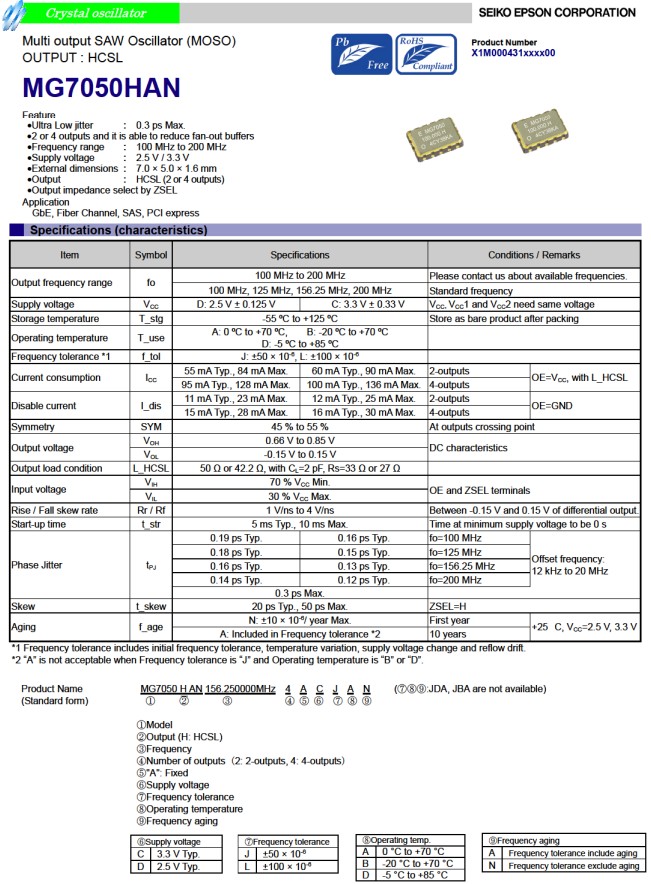

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振 參數表

Item	Symbol	Specifications		Conditions / Remarks
Output frequency range	f0	156.250MHz		Please contact us about available frequencies.
Output frequency range	f0	100MHz , 125MHz , 156.25MHz , 200MHz		Standard frequency
Supply voltage	VCC	D : 2.5V ± 0.125V	C : 3.3V ± 0.33V	VCC1 and VCC2 need same voltage
Storage temperature	T_stg	-55°C to +125°C		Store as bare product after packing
Operating temperature	T_use	A : 0°C to +70°C B : -20°C to +70°C D : -5°C to +85°C
Frequency tolerance *1	f_tol	J : ± 50 × 10-6 L : ±100 × 10-6
Current consumption	ICC	55 mA Typ. 84 mA Max.	60 mA Typ. 90 mA Max.	2-outputs	OE = VCC with L_HCSL
Current consumption	ICC	95 mA Typ. 128 mA Max.	100 mA Typ. 136 mA Max.	4-outputs	OE = VCC with L_HCSL
Disable current	I_dis	11 mA Typ. 23 mA Max.	12 mA Typ. 25 mA Max.	2-outputs	OE = GND
Disable current	I_dis	15 mA Typ. 28 mA Max.	16 mA Typ. 30 mA Max.	4-outputs	OE = GND
Symmetry	SYM	45%to 55%		At outputs crossing point
Output voltage	VOH	0.66 V to 0.85 mV		DC characteristics
Output voltage	VOL	-0.15 V to 0.15 V		DC characteristics
Output load condition	L_HCSL	50Ω or 42.2Ω, with CL = 2pF, Rs = 33Ω or 27Ω
Input voltage	VIH	70% VCC Min.		OE and ZSEL terminals
Input voltage	VIL	30% VCC Max.		OE and ZSEL terminals
Rise time / Fall time	Rr / Rf	1 V/ns to 4 V/ns		Between -0.15 V and 0.15 V of differential output.
Start-up time	t_str	5 ms Typ., 10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.19 ps Typ.	0.16 ps Typ.	f0 = 100MHz	Offset frequency: 12kHz to 20MHz
		0.18 ps Typ.	0.15 ps Typ.	f0 = 125MHz
		0.16 ps Typ.	0.13 ps Typ.	f0 = 156.25MHz
		0.14 ps Typ.	0.12 ps Typ.	f0 = 200MHz
		0.3 ps Max.
Skew	t_skew	20ps Typ. 50ps Max.		FSEL = H
Aging	f_aging	N : ± 10 × 10-6 / year Max.		First year		+25°C, VCC = 2.5V , 3.3V
Aging	f_aging	A : Included in Frequency tolerance *2		10 years		+25°C, VCC = 2.5V , 3.3V

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振 尺寸圖

MG7050HAN 156.250000MHz HCSL石英晶振,X1M000431001000網絡晶振

產品特性：

超低抖動：0.3ps最大值。

2路或4路輸出，能夠減少扇出

緩沖區(qū)

頻率范圍：100MHz~200MHz

供電電壓：2.5V / 3.3V

外形尺寸：7.0×5.0×1.6mm

輸出：HCSL(2或4個輸出)差分晶振

輸出阻抗由ZSEL選擇

無鉛。

符合歐盟RoHS指令
