SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振

頻率：156.25MHZ

尺寸：2.5*2.0mm

SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振，尺寸2.5*2.0mm,頻率156.25MHZ，OSC振蕩器，石英差分晶振，低抖動振蕩器，差分貼片晶振，低相位差分振蕩器，SPXO晶體振蕩器，5G將使網絡通信流量呈指數級增長。5G/6G通信網絡要求高速寬頻帶，同時最大限度地減少噪音。這將實現與高頻率，低抖動用于通信設備的參考時鐘，其中將使用小尺寸光模塊。SG2016EGN/SG2520EGN是非常受歡迎的SG3225EEN系列的下一代產品，提供相同的功能具有廣泛的可用頻率范圍，低抖動和改進的頻率容限的功能組合由于在更小的封裝中使用了帶有溫度補償的內部設計IC，因此性能更好。

有源晶振產品主要應用：網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC等領域.SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振.

訂購熱線：0755-29952551

LH-1

LH-2

SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振 參數表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC + 0.5

OE/ terminal

Storage temperature range

T_stg

-55

+125

°C

[ 3 ] Operating Range

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

ECL load condition

L_ECL

Terminated to VCC - 2.0 V

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

156.25

MHz

Frequency tolerance *2

f_tol

-25

+25

×10-6

Suffix: D

-50

+50

×10-6

Suffix: J

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	35	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of (VOH - VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC - 1.1	-	-	V	DC level
	VOL	-	-	VCC - 1.5	V
Differential swing	VSW	800	-	2 000	mV
Input voltage	VIH	70 % VCC	-	-	V	OE/ terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	90	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	70	fs	156 MHz < fo ≤ 212 MHz
		-	-	60	fs	212 MHz < fo ≤ 391 MHz
		-	-	50	fs	fo > 391 MHz

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Junction temperature

+140

°C

Junction to case

θjc

114

°C/W

SG2016EGN

122

°C/W

SG2520EGN

Junction to ambient

θja

243

°C/W

SG2016EGN

155

°C/W

SG2520EGN

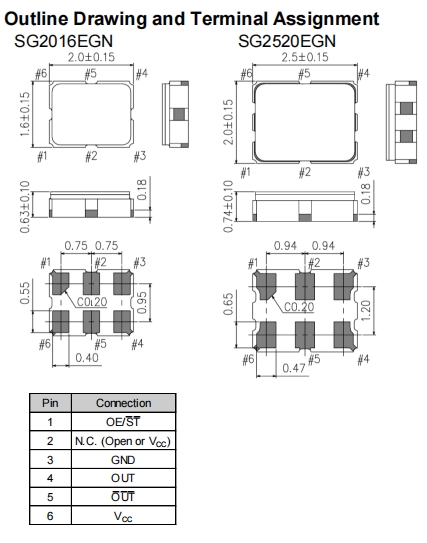

SG2520EGN差分振蕩器,EPSON晶振,X1G0058810002,6G無線晶振 尺寸圖

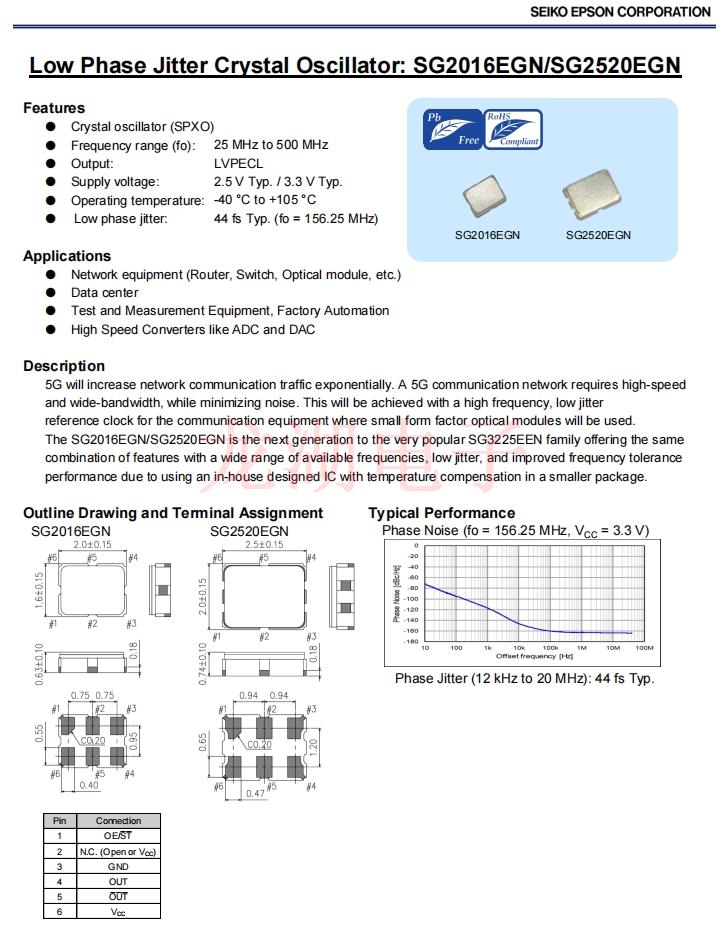

產品特性：

石英晶體振蕩器(SPXO)

頻率范圍(fo): 25MHz至500MHz

輸出:LVPECL

供電電壓:2.5 V/ 3.3V類型

工作溫度:-40℃~+105℃

低相位抖動:44 fs(fo = 156.25MHz)
