頻率：125MHZ
尺寸：3.2*2.5mm
EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸為3.2*2.5mm,頻率為125MHZ,輸出邏輯HCSL，差分晶體振蕩器，進口有源差分晶振，OSC差分晶振，HCSL差分輸出晶振，交換機差分振蕩器，低電壓差分晶振，低相位差分振蕩器，低抖動差分晶振，6G放大器差分晶振，6G模塊差分振蕩器，通信產品差分晶振，125MHZ差分晶振，產品具備高質量低抖動低電壓的特點。
差分貼片晶振是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，HCSL具有低電平,低抖動，低功耗，低功耗等特性。EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005.
EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005，尺寸為3.2*2.5mm,頻率為125MHZ,輸出邏輯HCSL，差分晶體振蕩器，進口有源差分晶振，OSC差分晶振，HCSL差分輸出晶振，交換機差分振蕩器，低電壓差分晶振，低相位差分振蕩器，低抖動差分晶振，6G放大器差分晶振，6G模塊差分振蕩器，通信產品差分晶振，125MHZ差分晶振，產品具備高質量低抖動低電壓的特點。
差分貼片晶振是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，HCSL具有低電平,低抖動，低功耗，低功耗等特性。EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005.

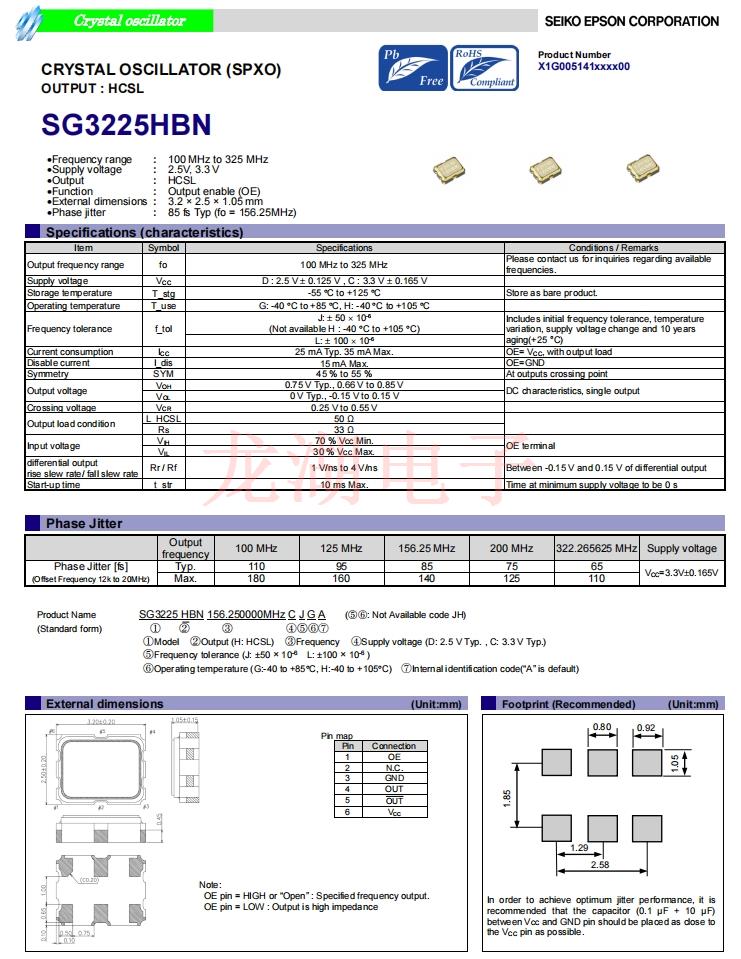

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005 參數表
| Specifications (characteristics) | |||||||||||||||||||||||||
| Item | Symbol | Specifications | Conditions / Remarks | ||||||||||||||||||||||
| Output frequency range | fo | 125MHz |
Please contact us for inquiries regarding available frequencies. |
||||||||||||||||||||||
| Supply voltage | VCC | D : 2.5 V ± 0.125 V , C : 3.3 V ± 0.165 V | |||||||||||||||||||||||
| Storage temperature | T_stg | -55 °C to +125 °C | Store as bare product. | ||||||||||||||||||||||
| Operating temperature | T_use | G: -40 °C to +85 °C , H: -40 °C to +105 °C | |||||||||||||||||||||||
| Frequency tolerance | f_tol |
J: ± 50 × 10-6 (Not available H : -40 °C to +105 °C) |
Includes initial frequency tolerance, temperature variation, supply voltage change and 10 years aging(+25 °C) |
||||||||||||||||||||||
| L: ± 100 × 10-6 | |||||||||||||||||||||||||
| Current consumption | ICC | 25 mATyp. 35 mA Max. | OE= VCC, with output load | ||||||||||||||||||||||
| Disable current | I_dis | 15 mA Max. | OE=GND | ||||||||||||||||||||||
| Symmetry | SYM | 45 % to 55 % | At outputs crossing point | ||||||||||||||||||||||
| Output voltage | VOH | 0.75 V Typ., 0.66 V to 0.85 V | DC characteristics, single output | ||||||||||||||||||||||
| VOL | 0 V Typ., -0.15 V to 0.15 V | ||||||||||||||||||||||||
| Crossing voltage | VCR | 0.25 V to 0.55 V | |||||||||||||||||||||||
| Output load condition | L_HCSL | 50 Ω | |||||||||||||||||||||||
| RS | 33 Ω | ||||||||||||||||||||||||
| Input voltage | VIH | 70 % VCC Min. | OE terminal | ||||||||||||||||||||||
| VIL | 30 % VCC Max. | ||||||||||||||||||||||||
|
differential output rise slew rate/ fall slew rate |
Rr / Rf | 1 V/ns to 4 V/ns | Between -0.15 V and 0.15 V of differential output | ||||||||||||||||||||||
| Start-up time | t_str | 10 ms Max. | Time at minimum supply voltage to be 0 s | ||||||||||||||||||||||
| Phase Jitter | |||||||||||||||||||||||||
|
Output frequency |
100 MHz | 125 MHz | 156.25 MHz | 200 MHz | 322.265625 MHz | Supply voltage | |||||||||||||||||||
|
Phase Jitter [fs] (Offset Frequency 12k to 20MHz) |
Typ. | 110 | 95 | 85 | 75 | 65 | VCC=3.3V±0.165V | ||||||||||||||||||
| Max. | 180 | 160 | 140 | 125 | 110 | ||||||||||||||||||||

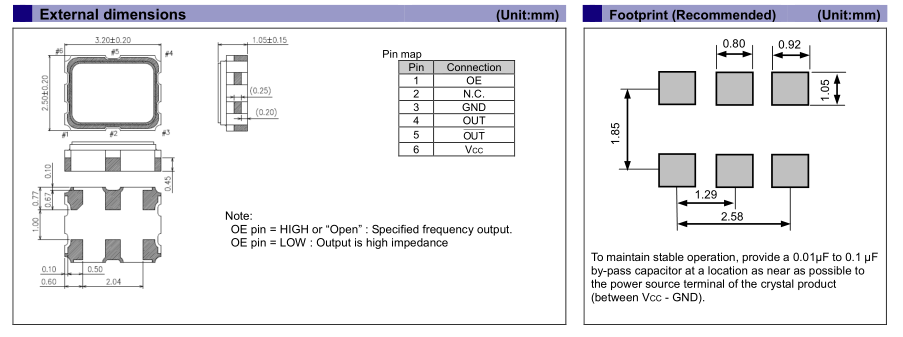

EPSON差分貼片晶振SG3225HBN,6G放大器晶振,X1G0051410005 尺寸圖
有源晶振產品特性：
頻率范圍:100mhz至325mhz
電源電壓:2.5V, 3.3 V
輸出:HCSL
功能:輸出使能(OE)
外部尺寸:3.2×2.5×1.05mm
相位抖動:85 fs類型(fo = 156.25MHz)
更多相關EPSON晶振型號
| 編碼 | 品牌 | 型號 | 頻率 | 尺寸 | 輸出方式 | 電源電壓 | 工作溫度 |
| X1G0042410001 | 愛普生晶振 | SG3225VAN | 125.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410002 | 愛普生晶振 | SG3225VAN | 125.006250 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410004 | 愛普生晶振 | SG3225VAN | 100.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410005 | 愛普生晶振 | SG3225VAN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410006 | 愛普生晶振 | SG3225VAN | 400.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410007 | 愛普生晶振 | SG3225VAN | 106.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410008 | 愛普生晶振 | SG3225VAN | 212.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410009 | 愛普生晶振 | SG3225VAN | 74.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410010 | 愛普生晶振 | SG3225VAN | 148.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410011 | 愛普生晶振 | SG3225VAN | 75.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410012 | 愛普生晶振 | SG3225VAN | 150.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410014 | 愛普生晶振 | SG3225VAN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410015 | 愛普生晶振 | SG3225VAN | 312.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410016 | 愛普生晶振 | SG3225VAN | 312.515625 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410017 | 愛普生晶振 | SG3225VAN | 161.132800 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410020 | 愛普生晶振 | SG3225VAN | 125.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410021 | 愛普生晶振 | SG3225VAN | 125.006250 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410023 | 愛普生晶振 | SG3225VAN | 100.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410024 | 愛普生晶振 | SG3225VAN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410025 | 愛普生晶振 | SG3225VAN | 400.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410026 | 愛普生晶振 | SG3225VAN | 106.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410027 | 愛普生晶振 | SG3225VAN | 212.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410028 | 愛普生晶振 | SG3225VAN | 74.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410029 | 愛普生晶振 | SG3225VAN | 148.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410030 | 愛普生晶振 | SG3225VAN | 75.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410031 | 愛普生晶振 | SG3225VAN | 150.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410033 | 愛普生晶振 | SG3225VAN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410034 | 愛普生晶振 | SG3225VAN | 312.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410035 | 愛普生晶振 | SG3225VAN | 312.515625 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410036 | 愛普生晶振 | SG3225VAN | 161.132800 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410039 | 愛普生晶振 | SG3225VAN | 125.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410040 | 愛普生晶振 | SG3225VAN | 125.006250 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410042 | 愛普生晶振 | SG3225VAN | 100.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410043 | 愛普生晶振 | SG3225VAN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410044 | 愛普生晶振 | SG3225VAN | 400.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410045 | 愛普生晶振 | SG3225VAN | 106.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410046 | 愛普生晶振 | SG3225VAN | 212.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410047 | 愛普生晶振 | SG3225VAN | 74.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410048 | 愛普生晶振 | SG3225VAN | 148.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410049 | 愛普生晶振 | SG3225VAN | 75.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410050 | 愛普生晶振 | SG3225VAN | 150.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410052 | 愛普生晶振 | SG3225VAN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410053 | 愛普生晶振 | SG3225VAN | 312.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410054 | 愛普生晶振 | SG3225VAN | 312.515625 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410055 | 愛普生晶振 | SG3225VAN | 161.132800 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410058 | 愛普生晶振 | SG3225VAN | 125.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410059 | 愛普生有源振蕩器 | SG3225VAN | 125.006250 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410061 | 愛普生晶振 | SG3225VAN | 100.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410062 | 愛普生晶振 | SG3225VAN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410063 | 愛普生晶振 | SG3225VAN | 400.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410064 | 愛普生晶振 | SG3225VAN | 106.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410065 | 愛普生晶振 | SG3225VAN | 212.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410066 | 愛普生晶振 | SG3225VAN | 74.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410067 | 愛普生晶振 | SG3225VAN | 148.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410068 | 愛普生晶振 | SG3225VAN | 75.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410069 | 愛普生晶振 | SG3225VAN | 150.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410071 | 愛普生晶振 | SG3225VAN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410072 | 愛普生晶振 | SG3225VAN | 312.500000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410073 | 愛普生晶振 | SG3225VAN | 312.515625 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410074 | 愛普生晶振 | SG3225VAN | 161.132800 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
| X1G0042410079 | 愛普生晶振 | SG3225VAN | 50.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410080 | 愛普生晶振 | SG3225VAN | 68.750000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410083 | 愛普生晶振 | SG3225VAN | 50.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042410084 | 愛普生晶振 | SG3225VAN | 68.750000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
