Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器

頻率：26MHZ

尺寸：7.0×5.0mm

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器，尺寸7.0×5.0mm，頻率26MHZ，電壓3.3V，輸出邏輯CMOS，有源貼片晶振，有源晶體振蕩器，六腳貼片晶振，7050mm有源晶振，石英晶體振蕩器，CMOS輸出有源晶振，CMOS貼片型振蕩器，OSC振蕩器，SMD有源振蕩器，低抖動振蕩器，低電壓有源晶振，低損耗有源晶振，低相位有源振蕩器，低功耗有源晶振，低相噪有源晶振，高質量晶振，網絡設備有源晶振，測試測量有源晶振，ASIC時鐘生成有源晶振，工業應用有源晶振，具有高質量低抖動的特點.

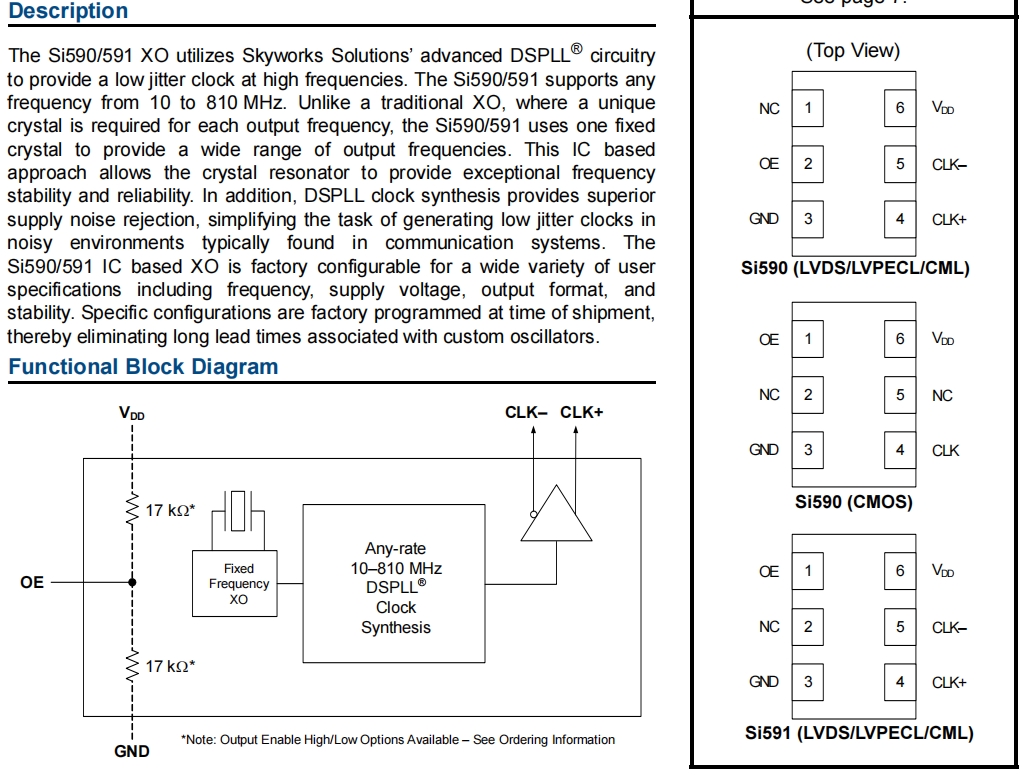

Si590/591 XO石英晶體振蕩器采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si590/591支持任何頻率為10至810MHz。不同于傳統的XO每個輸出頻率都需要晶體，Si590/591使用一個固定的晶體，以提供寬范圍的輸出頻率。此IC基于這種方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了卓越的性能電源噪聲抑制，簡化了在通信系統中常見的噪聲環境.Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器.

訂購熱線：0755-29952551
QQ咨詢 財富通

Abracon-2

LH-1

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器，尺寸7.0×5.0mm，頻率26MHZ，電壓3.3V，輸出邏輯CMOS，有源貼片晶振，有源晶體振蕩器，六腳貼片晶振，7050mm有源晶振，石英晶體振蕩器，CMOS輸出有源晶振，CMOS貼片型振蕩器，OSC振蕩器，SMD有源振蕩器，低抖動振蕩器，低電壓有源晶振，低損耗有源晶振，低相位有源振蕩器，低功耗有源晶振，低相噪有源晶振，高質量晶振，網絡設備有源晶振，測試測量有源晶振，ASIC時鐘生成有源晶振，工業應用有源晶振，具有高質量低抖動的特點.

Si590/591 XO石英晶體振蕩器采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si590/591支持任何頻率為10至810MHz。不同于傳統的XO每個輸出頻率都需要晶體，Si590/591使用一個固定的晶體，以提供寬范圍的輸出頻率。此IC基于這種方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了卓越的性能電源噪聲抑制，簡化了在通信系統中常見的噪聲環境.Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器.

LH-2

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器    參數表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 V DD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x V DD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D”         ±20 ppm
Note 3, second option code “C”         ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C”         ±20 ppm
second option code “B”         ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level V DD – 1.42     V DD – 1.25 V
VOD swing (diff) 1.1     1.9 VPP
VSE swing (single-ended) 0.55     0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — V DD – 1.30 — V
1.8 V option mid-level — V DD – 0.36 —
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50
CMOS Output Option3 V OH 0.8 x V DD — V DD V
VOL — — 0.4
Rise/Fall time (20/80%) tR,t F LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 2 — ns
Symmetry (duty cycle) SYM LVPECL:   V DD – 1.3 V (diff)
LVDS:        1.25 V (diff)
CMOS:      V DD/2 		45 — 55 %

LH-3

Si590低相位晶振,6GWIFI晶振,590CD26M0000DGR,思佳訊差分振蕩器    尺寸圖

Si591 Si590 7050

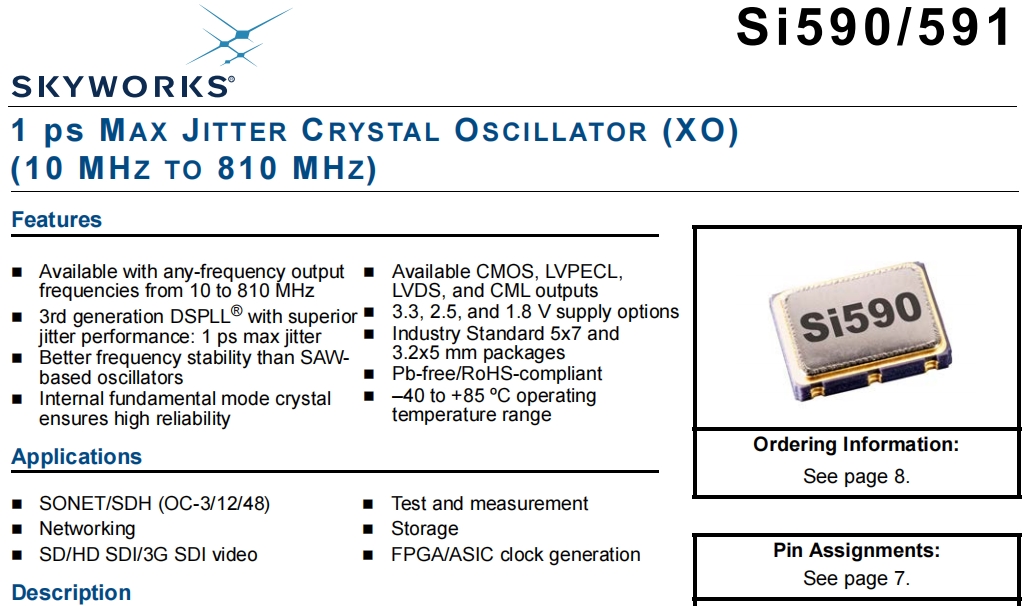

低耗能晶振產品特點:

可用于任何頻率輸出

頻率從10到810兆赫

具有卓越性能的第三代DSPLL®

抖動性能：最大抖動1ps

比SAW振蕩器具有更好的頻率穩定性

內部基模晶體

確保高可靠性

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5x7和3.2x5mm包裝

無鉛/符合RoHS

–40至+85ºC運行溫度范圍

Si590 1Si590 2

更多相關Skyworks晶振型號

Mfr Part # 晶振廠家 Description Series Frequency Output Voltage - Supply
590FB122M880DG Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS SMD Si590 122.88 MHz LVDS 2.5V
590FB125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si590 125 MHz LVDS 2.5V
590FB50M0000DG Skyworks有源晶振 XTAL OSC XO 50.0000MHZ LVDS SMD Si590 50 MHz LVDS 2.5V
590MB125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si590 125 MHz LVPECL 3.3V
590SB25M0000DG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ LVDS SMD Si590 25 MHz LVDS 2.5V
590WB50M0000DG Skyworks有源晶振 XTAL OSC XO 50.0000MHZ CML SMD Si590 50 MHz CML 1.8V
590AA306M250DG Skyworks有源晶振 XTAL OSC XO 306.2500MHZ LVPECL Si590 306.25 MHz LVPECL 3.3V
590AA340M000DG Skyworks有源晶振 XTAL OSC XO 340.0000MHZ LVPECL Si590 340 MHz LVPECL 3.3V
590AA350M000DG Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVPECL Si590 350 MHz LVPECL 3.3V
590BA300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BA350M000DG Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 3.3V
590DA315M000DG Skyworks有源晶振 XTAL OSC XO 315.0000MHZ CML SMD Si590 315 MHz CML 3.3V
590DA435M350DG Skyworks有源晶振 XTAL OSC XO 435.3500MHZ CML SMD Si590 435.35 MHz CML 3.3V
590FA350M000DG Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 2.5V
590NA000243DG Skyworks有源晶振 XTAL OSC XO 333.3333MHZ LVDS SMD Si590 333.3333 MHz LVDS 3.3V
590FA800M000DG Skyworks有源晶振 XTAL OSC XO 800.0000MHZ LVDS SMD Si590 800 MHz LVDS 2.5V
590AA306M250DGR Skyworks有源晶振 XTAL OSC XO 306.2500MHZ LVPECL Si590 306.25 MHz LVPECL 3.3V
590AA340M000DGR Skyworks有源晶振 XTAL OSC XO 340.0000MHZ LVPECL Si590 340 MHz LVPECL 3.3V
590AA350M000DGR Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVPECL Si590 350 MHz LVPECL 3.3V
590BA300M000DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BA350M000DGR Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 3.3V
590DA315M000DGR Skyworks有源晶振 XTAL OSC XO 315.0000MHZ CML SMD Si590 315 MHz CML 3.3V
590DA435M350DGR Skyworks有源晶振 XTAL OSC XO 435.3500MHZ CML SMD Si590 435.35 MHz CML 3.3V
590FA350M000DGR Skyworks有源晶振 XTAL OSC XO 350.0000MHZ LVDS SMD Si590 350 MHz LVDS 2.5V
590NA000243DGR Skyworks有源晶振 XTAL OSC XO 333.3333MHZ LVDS SMD Si590 333.3333 MHz LVDS 3.3V
590BA273M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 273 MHz LVDS 3.3V
590NA312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 312.7 MHz LVDS 3.3V
590BE273M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590NE273M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590AE312M500DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.5 MHz LVPECL 3.3V
590BE300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590NE312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590BE312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590AC144M300DG Skyworks有源晶振 XTAL OSCILLATOR Si590 144.3 MHz LVPECL 3.3V
590DD34M3680DG Skyworks有源晶振 XTAL OSCILLATOR Si590 34.368 MHz CML 3.3V
590FD32M0000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 32 MHz LVDS 2.5V
590FD32M2400DG Skyworks有源晶振 XTAL OSCILLATOR Si590 32.24 MHz LVDS 2.5V
590FD36M0000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 36 MHz LVDS 2.5V
590FC200M000DG Skyworks有源晶振 XO DIFF OE PIN 2 10-810MHZ Si590 200 MHz LVDS 2.5V
590BC000185DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 161.132812 MHz LVDS 3.3V
590BC200M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 200 MHz LVDS 3.3V
590FD40M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 40 MHz LVDS 2.5V
590BD80M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 80 MHz LVDS 3.3V
590FD61M3800DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 61.38 MHz LVDS 2.5V
590FD100M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 100 MHz LVDS 2.5V
590KD106M250DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 106.25 MHz CML 1.8V
590KD80M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 80 MHz CML 1.8V
590PD130M560DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 130.56 MHz CMOS 3.3V
590BD74M2500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 74.25 MHz LVDS 3.3V
590BD122M880DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 122.88 MHz LVDS 3.3V
590BC000351DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 195.3125 MHz LVDS 3.3V
590BG150M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 150 MHz LVDS 3.3V
590EC148M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 148.5 MHz LVPECL 2.5V
590KD25M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 25 MHz CML 1.8V
590AG156M250DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 156.25 MHz LVPECL 3.3V
590KG000244DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 244 MHz CML 1.8V
590KG148M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 148.5 MHz CML 1.8V
590FA800M000DGR Skyworks有源晶振 XTAL OSC XO 800.0000MHZ LVDS SMD Si590 800 MHz LVDS 2.5V
590AB156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590AC135M000DG Skyworks有源晶振 XTAL OSC XO 135.0000MHZ LVPECL Si590 135 MHz LVPECL 3.3V
590AC155M025DG Skyworks有源晶振 XTAL OSC XO 155.0250MHZ LVPECL Si590 155.025 MHz LVPECL 3.3V
590AC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590AD10M0000DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si590 10 MHz LVPECL 3.3V
590AD20M0000DG Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVPECL Si590 20 MHz LVPECL 3.3V
590BC000118DG Skyworks有源晶振 XTAL OSC XO 118.0000KHZ LVDS SMD Si590 118 kHz LVDS 3.3V
590BC148M350DG Skyworks有源晶振 XTAL OSC XO 148.3500MHZ LVDS SMD Si590 148.35 MHz LVDS 3.3V
590BC148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si590 148.5 MHz LVDS 3.3V
590BC150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si590 150 MHz LVDS 3.3V
590BC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 3.3V
590BD10M0000DG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Si590 10 MHz LVDS 3.3V
590BD125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si590 125 MHz LVDS 3.3V
590BD20M0000DG Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVDS SMD Si590 20 MHz LVDS 3.3V
590BD24M5760DG Skyworks有源晶振 XTAL OSC XO 24.5760MHZ LVDS SMD Si590 24.576 MHz LVDS 3.3V
590DC148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CML SMD Si590 148.5 MHz CML 3.3V
590FC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 2.5V
590FD125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si590 125 MHz LVDS 2.5V
590FD50M0000DG Skyworks有源晶振 XTAL OSC XO 50.0000MHZ LVDS SMD Si590 50 MHz LVDS 2.5V
590FD74M2500DG Skyworks有源晶振 XTAL OSC XO 74.2500MHZ LVDS SMD Si590 74.25 MHz LVDS 2.5V
590JD150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ CMOS SMD Si590 150 MHz CMOS 1.8V
590KD61M4400DG Skyworks有源晶振 XTAL OSC XO 61.4400MHZ CML SMD Si590 61.44 MHz CML 1.8V
590PD133M330DG Skyworks有源晶振 XTAL OSC XO 133.3300MHZ CMOS SMD Si590 133.33 MHz CMOS 3.3V
590CG25M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 25 MHz CMOS 3.3V
590NA312M700DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 312.7 MHz LVDS 3.3V
590BA273M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si590 273 MHz LVDS 3.3V
590NE312M700DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590BE273M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590BE300M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590BE312M700DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590AE312M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.5 MHz LVPECL 3.3V
590NE273M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590AD155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si590 155.52 MHz LVPECL 3.3V
590AD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590BD148M500DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si590 148.5 MHz LVDS 3.3V
590BD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 3.3V
590BD200M000DGR Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si590 200 MHz LVDS 3.3V
590DD148M500DGR Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CML SMD Si590 148.5 MHz CML 3.3V
590DD161M133DGR Skyworks有源晶振 XTAL OSC XO 161.1330MHZ CML SMD Si590 161.133 MHz CML 3.3V
590ED156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 2.5V
590FD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 2.5V
590WD156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CML SMD Si590 156.25 MHz CML 1.8V
590DD160M000DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 160 MHz CML 3.3V
590FD200M000DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 200 MHz LVDS 2.5V
590BD130M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 130 MHz LVDS 3.3V
590BD200M395DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 200.395 MHz LVDS 3.3V
590AD000388DGR Skyworks有源晶振 XTAL OSC XO 388.0000KHZ LVPECL Si590 388 kHz LVPECL 3.3V
590AB000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVPECL Si590 274 kHz LVPECL 3.3V
590AB312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVPECL Si590 312.5 MHz LVPECL 3.3V
590BB000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 3.3V
590BB300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BB400M000DG Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si590 400 MHz LVDS 3.3V
590FB000274DG Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 2.5V
590FB222M000DG Skyworks有源晶振 XTAL OSC XO 222.0000MHZ LVDS SMD Si590 222 MHz LVDS 2.5V
590FB250M000DG Skyworks有源晶振 XTAL OSC XO 250.0000MHZ LVDS SMD Si590 250 MHz LVDS 2.5V
590FB300M000DG Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 2.5V
590FB322M266DG Skyworks有源晶振 XTAL OSC XO 322.2660MHZ LVDS SMD Si590 322.266 MHz LVDS 2.5V
590FB403M000DG Skyworks有源晶振 XTAL OSC XO 403.0000MHZ LVDS SMD Si590 403 MHz LVDS 2.5V
590FB444M000DG Skyworks有源晶振 XTAL OSC XO 444.0000MHZ LVDS SMD Si590 444 MHz LVDS 2.5V
590FB500M000DG Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVDS SMD Si590 500 MHz LVDS 2.5V
590FB501M000DG Skyworks有源晶振 XTAL OSC XO 501.0000MHZ LVDS SMD Si590 501 MHz LVDS 2.5V
590NB311M040DG Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVDS SMD Si590 311.04 MHz LVDS 3.3V
590CD14M7456DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 14.7456 MHz CMOS 3.3V
590FB222M000DGR Skyworks有源晶振 XTAL OSC XO 222.0000MHZ LVDS SMD Si590 222 MHz LVDS 2.5V
590FB250M000DGR Skyworks有源晶振 XTAL OSC XO 250.0000MHZ LVDS SMD Si590 250 MHz LVDS 2.5V
590FB300M000DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 2.5V
590FB322M266DGR Skyworks有源晶振 XTAL OSC XO 322.2660MHZ LVDS SMD Si590 322.266 MHz LVDS 2.5V
590FB403M000DGR Skyworks有源晶振 XTAL OSC XO 403.0000MHZ LVDS SMD Si590 403 MHz LVDS 2.5V
590FB444M000DGR Skyworks有源晶振 XTAL OSC XO 444.0000MHZ LVDS SMD Si590 444 MHz LVDS 2.5V
590FB500M000DGR Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVDS SMD Si590 500 MHz LVDS 2.5V
590FB501M000DGR Skyworks有源晶振 XTAL OSC XO 501.0000MHZ LVDS SMD Si590 501 MHz LVDS 2.5V
590NB311M040DGR Skyworks有源晶振 XTAL OSC XO 311.0400MHZ LVDS SMD Si590 311.04 MHz LVDS 3.3V
590BB266M500DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 266.5 MHz LVDS 3.3V
590EB500M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 500 MHz LVPECL 2.5V
590BF300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590FC55M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 55 MHz LVDS 2.5V
590AD155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVPECL Si590 155.52 MHz LVPECL 3.3V
590AD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 3.3V
590BD148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si590 148.5 MHz LVDS 3.3V
590BD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 3.3V
590BD200M000DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si590 200 MHz LVDS 3.3V
590DD148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ CML SMD Si590 148.5 MHz CML 3.3V
590DD161M133DG Skyworks有源晶振 XTAL OSC XO 161.1330MHZ CML SMD Si590 161.133 MHz CML 3.3V
590ED156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si590 156.25 MHz LVPECL 2.5V
590FD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si590 156.25 MHz LVDS 2.5V
590WD156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CML SMD Si590 156.25 MHz CML 1.8V
590DD160M000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 160 MHz CML 3.3V
590FD200M000DG Skyworks有源晶振 XTAL OSCILLATOR Si590 200 MHz LVDS 2.5V
590BD200M395DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 200.395 MHz LVDS 3.3V
590BD130M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 130 MHz LVDS 3.3V
590AB000274DGR Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVPECL Si590 274 kHz LVPECL 3.3V
590AB312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVPECL Si590 312.5 MHz LVPECL 3.3V
590BB000274DGR Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 3.3V
590BB300M000DGR Skyworks有源晶振 XTAL OSC XO 300.0000MHZ LVDS SMD Si590 300 MHz LVDS 3.3V
590BB400M000DGR Skyworks有源晶振 XTAL OSC XO 400.0000MHZ LVDS SMD Si590 400 MHz LVDS 3.3V
590FB000274DGR Skyworks有源晶振 XTAL OSC XO 274.0000KHZ LVDS SMD Si590 274 kHz LVDS 2.5V
590FC275M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 275 MHz LVDS 2.5V
590AC300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVPECL 3.3V
590BC300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590MC385M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 385 MHz LVPECL 3.3V
590FG297M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 297 MHz LVDS 2.5V
590FG300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 2.5V
590BG312M700DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.7 MHz LVDS 3.3V
590BG300M000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590KG004712DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 322.265265 MHz CML 1.8V
590BC312M800DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 312.8 MHz LVDS 3.3V
590BG273M000DGR Skyworks DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 273 MHz LVDS 3.3V
590AC270M000DGR Skyworks有源晶振 XTAL OSC XO 270.0000MHZ LVPECL Si590 270 MHz LVPECL 3.3V
590AC290M122DGR Skyworks有源晶振 XTAL OSC XO 290.1220MHZ LVPECL Si590 290.122 MHz LVPECL 3.3V
590AC496M000DGR Skyworks有源晶振 XTAL OSC XO 496.0000MHZ LVPECL Si590 496 MHz LVPECL 3.3V
590AC500M000DGR Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVPECL Si590 500 MHz LVPECL 3.3V
590BC270M100DGR Skyworks有源晶振 XTAL OSC XO 270.1000MHZ LVDS SMD Si590 270.1 MHz LVDS 3.3V
590BC296M703DGR Skyworks有源晶振 XTAL OSC XO 296.7030MHZ LVDS SMD Si590 296.703 MHz LVDS 3.3V
590BC297M000DGR Skyworks有源晶振 XTAL OSC XO 297.0000MHZ LVDS SMD Si590 297 MHz LVDS 3.3V
590AC299M500DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 299.5 MHz LVPECL 3.3V
590AC500M800DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 500 MHz LVPECL 3.3V
590BC000274DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 322.265625 MHz LVDS 3.3V
590FC300M000DGR Skyworks有源晶振 XTAL OSCILLATOR Si590 300 MHz LVDS 2.5V
590BB266M500DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 266.5 MHz LVDS 3.3V
590BF300M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 300 MHz LVDS 3.3V
590EB500M000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 500 MHz LVPECL 2.5V
590AD000388DG Skyworks有源晶振 XTAL OSC XO 388.0000KHZ LVPECL Si590 388 kHz LVPECL 3.3V
590CG25M0000DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si590 25 MHz CMOS 3.3V
590AC270M000DG Skyworks有源晶振 XTAL OSC XO 270.0000MHZ LVPECL Si590 270 MHz LVPECL 3.3V
590AC290M122DG Skyworks有源晶振 XTAL OSC XO 290.1220MHZ LVPECL Si590 290.122 MHz LVPECL 3.3V

LH-6

深圳市火運電子有限公司

服務熱線：86-0755-29952551

手機聯系：136-3294-3514

Q Q聯系：969080538

郵 箱：longhusz@163.com

地 址：深圳市寶安區新安街道安樂社區二街

相關的晶振產品

FT5HNBPK10.0-T1,FOX電子晶振,福克斯晶振,10MHz
FT5HNBPK10.0-T1,FOX電子晶振,福克斯晶振,10MHz
   FT5HNBPK10.0-T1,FOX電子晶振,福克斯晶振,10MHz,編碼FT5HNBPK10.0-T1,型號:FT5HN,頻率:10MHz,尺寸:5032mm,四腳貼片晶振,3.3V晶振,監控晶振,高溫晶振,在即使在-30°C至85°C的惡劣環境也能持續且平穩的運行,低電壓晶振,石英晶振振蕩器,溫補晶振,石英拆料設計比陶瓷更好的抗沖擊性,石英金屬更是有著超好使用壽命適合在不需要經常拆箱的地方使用,
FO5HSCBE24.0-T1,福克斯晶振,3.3V,無人機晶振
FO5HSCBE24.0-T1,福克斯晶振,3.3V,無人機晶振

     FO5HSCBE24.0-T1,福克斯晶振,3.3V,無人機晶振,貼片石英晶振,10Mhz晶振,5032晶振,美國晶振,貼片晶振,音響晶振,高頻晶振振蕩器,3.3V晶振,低電源電壓晶振,高溫晶振,歐美晶振,藍牙晶振,手環晶振,無人機晶振,智能機器人晶振,高穩定晶振,航空晶振,

FO5LSJDM150.0-T1,FOX進口晶振,2.5V,石英晶振
FO5LSJDM150.0-T1,FOX進口晶振,2.5V,石英晶振
FO5LSJDM150.0-T1,FOX進口晶振,2.5V,石英晶振,進口晶振,歐美石英晶振,福克斯石英晶體振蕩器,編碼:FO5LSJDM150.0-T1,型號:FO5SL,高頻率晶振,頻率:105MHz,電壓:2.5V,超耐熱的特性,即使在-40°C至85°C的惡例環境也能持續且平穩的運行,被廣泛的運用在收音機,空調,智能手機,機頂盒等產業,
聯系火運電子
咨詢熱線：0755-29952551

手機：13632943514

QQ：969080538 qq

郵箱：longhusz@163.com

地址：深圳市寶安區新安街道安樂社區二街

點擊這里給我發消息 主站蜘蛛池模板： 精品乱码久久久久久中文字幕| a级片播放| 成人特级毛片| 天海翼一区| 国产精品成人一区无码| 麻豆一区二区三区蜜桃免费| 人妻熟女一区二区三区app下载 | 欧美最爽乱淫视频免费观看| 久久精品国产精品亚洲| 国产精品久久久久久久久久久搜索 | 精品乱人伦一区二区三区| 欧美一级网| 激情偷乱人成视频在线观看| 丰满的少妇xxxxx青青青| 亚洲啊v| 怡红院av亚洲一区二区三区h| 日韩在线精品强乱中文字幕| 久色婷婷| 欧美福利在线| 黑人一级黄色大片| 八个少妇沟厕小便漂亮各种大屁股 | 免费观看一级欧美在线视频| 国产午夜成人久久无码一区二区| av天天看| 直接在线观看的三级网址| 国产精品高清一区二区三区| 国产成人av一区二区三区在线观看| 欧美日韩人妻精品一区二区三区| 激情欧美一区二区三区中文字幕| 成人在线观看一区| 亚洲欧美激情另类| 久久99精品久久久久久| 欧美不卡在线| 国产日韩欧美综合一区二区三区| 精品一卡二卡三卡| 五月婷婷六月香| 青青久草| 国内精品久久久久影院一蜜桃| 99久久人妻精品免费二区| 中文天堂资源在线www| 少妇被躁爽到高潮无码人狍大战|
