510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510

頻率：48MHZ

尺寸：7.0x5.0mm

510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510，尺寸7.0x5.0mm，頻率48MHZ，輸出邏輯CMOS，OSC振蕩器，XO時鐘振蕩器，CMOS輸出晶振，SMD振蕩器，四腳有源晶振，有源晶體振蕩器，石英晶體振蕩器，有源振蕩器，低電壓振蕩器，低功耗有源晶振，低抖動有源晶振，7050mm有源晶振，48MHZ有源晶振，路由器專用晶振，光纖通道有源晶振，電信專用晶振，交換機晶振，具有低抖動高品質的特點，很適合SONET/SDH/OTN，關于 Gigabit Ethernet，光纖通道/SAS/SATA，關于PCI Express，3G-SDI/HD-SDI/SDI 電信，交換機/路由器，FPGA/ASIC，時鐘生成等領域。

Si510/511 XO采用Skyworks Solutions的先進DSPLL技術以提供從100kHz到250MHz的任何頻率。與傳統XO不同其中每個輸出頻率需要不同的晶體，Si510/511有源晶振使用一塊固定水晶和Skyworks Solutions的專有DSPLL合成器，以生成該范圍內的任何頻率。此IC基于該方法允許晶體諧振器提供增強的可靠性，改進的機械堅固性和優異的穩定性。此外該解決方案提供卓越的電源噪聲抑制，簡化了低抖動時鐘在嘈雜的環境中生成。Crystal ESR和DLD分別為生產測試，以保證性能和提高可靠性。510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510.

訂購熱線：0755-29952551

LH-1

LH-2

510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510 參數表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

0.1

—

250

MHz

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum V DD until output
frequency (FO) within specification

—

Disable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

Enable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

*Note: Total stability includes initial accuracy, operating temperature, supply voltage change, load change, shock and vibration
(not under operation), and 10 years aging at 40 oC.

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
CMOS Output Logic High	V OH		0.85 x V DD	—	—	V
CMOS Output Logic Low	VOL		—	—	0.15 x V DD	V
CMOS Output Logic High Drive	I OH	3.3 V	–8	—	—	mA
		2.5 V	–6	—	—	mA
		1.8 V	–4	—	—	mA
CMOS Output Logic Low Drive	I OL	3.3 V	8	—	—	mA
		2.5 V	6	—	—	mA
		1.8 V	4	—	—	mA
CMOS Output Rise/Fall Time (20 to 80% V DD)	TR/T F	0.1 to 212.5 MHz, CL = 15 pF	0.45	0.8	1.2	ns
		0.1 to 212.5 MHz, CL = no load	0.3	0.6	0.9	ns
LVPECL Output Rise/Fall Time (20 to 80% VDD)	TR/T F		100	—	565	ps
HCSL Output Rise/Fall Time (20 to 80% VDD)	TR/T F		100	—	470	ps
LVDS Output Rise/Fall Time (20 to 80% VDD)	TR/T F		350	—	800	ps
LVPECL Output Common Mode	VOC	50 Ω to V DD – 2 V, single-ended	—	V DD – 1.4 V	—	V
LVPECL Output Swing	VO	50 Ω to V DD – 2 V, single-ended	0.55	0.8	0.90	VPPSE
LVDS Output Common Mode	VOC	100 Ω line-line V DD= 3.3/2.5 V	1.13	1.23	1.33	V
		100 Ω line-line, V DD= 1.8 V	0.83	0.92	1.00	V
LVDS Output Swing	VO	Single-ended, 100 Ω differential termination	0.25	0.35	0.45	VPPSE
HCSL Output Common Mode	VOC	50 Ω to ground	0.35	0.38	0.42	V
HCSL Output Swing	VO	Single-ended	0.58	0.73	0.85	VPPSE
Duty Cycle	DC	All formats	48	50	52	%

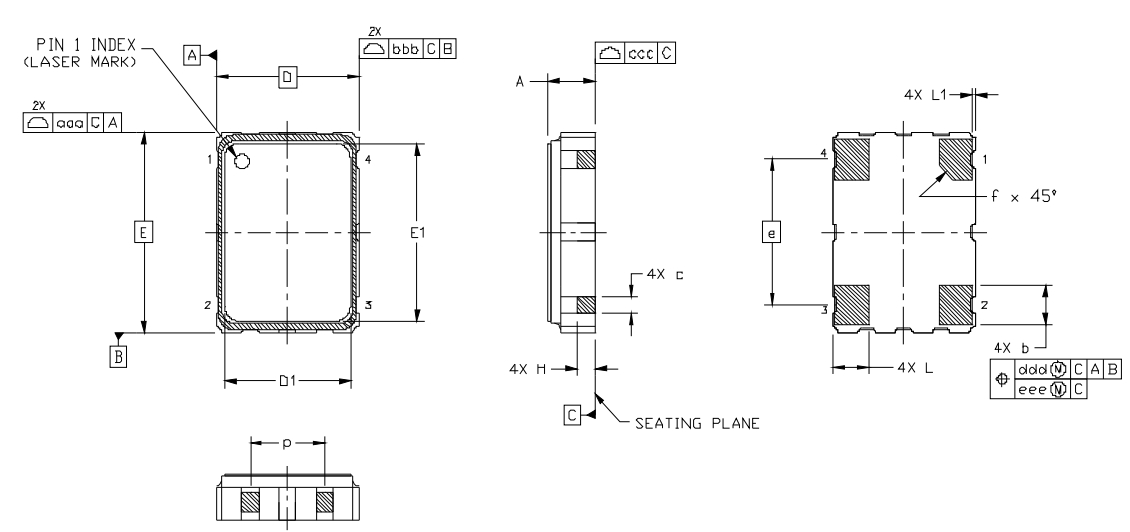

510CCA48M0000AAG|6G路由器晶振|Skyworks有源貼片晶振Si510 尺寸圖

有源石英晶振產品特性：

支持來自的任何頻率100kHz至250MHz

低抖動操作

2-4周交付周期

總體穩定性包括10年變老

綜合生產試驗

覆蓋范圍包括晶體ESR和DLD

用于電源的片上LDO調節器

電源噪聲濾波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS輸出選項

可選集成1:2 CMOS扇出緩存

OE和接通電源

行業標準5 x 7、3.2 x 5，和2.5 x 3.2毫米封裝

無鉛，符合RoHS

–40至85℃操作

更多相關Renesas晶振型號

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply
510CBA12M0000BAG	Skyworks有源晶振	XTAL OSC XO 12.0000MHZ CMOS SMD	Si510	12 MHz	CMOS	3.3V
510ABA100M000BAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVPECL	Si510	100 MHz	LVPECL	3.3V
510FBA000110BAG	Skyworks有源晶振	XTAL OSC XO 148.35165MHZ LVDS	Si510	148.35165 MHz	LVDS	2.5V
511BBA155M520BAG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si511	155.52 MHz	LVDS	3.3V
511BBA000110AAG	Skyworks有源晶振	XTAL OSC XO 148.35165MHZ LVDS	Si511	148.35165 MHz	LVDS	3.3V
510BBA155M520AAG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si510	155.52 MHz	LVDS	3.3V
510ABA100M000AAG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVPECL	Si510	100 MHz	LVPECL	3.3V
511FBA212M500BAG	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si511	212.5 MHz	LVDS	2.5V
511FBA212M500AAG	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si511	212.5 MHz	LVDS	2.5V
510JCA135M000BAG	Skyworks有源晶振	XTAL OSC XO 135.0000MHZ LVDS SMD	Si510	135 MHz	LVDS	1.8V
531EC200M000DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si531	200 MHz	LVPECL	2.5V
531FC000110DG	Skyworks有源晶振	XTAL OSC XO 148.35165MHZ LVDS	Si531	148.35165 MHz	LVDS	2.5V
570BBC000876DG	Skyworks有源晶振	XTAL OSC XO 49.87013MHZ LVDS SMD	Si570	49.87013 MHz	LVDS	3.3V
598ACA000105DG	Skyworks有源晶振	XTAL OSC XO 622.0800MHZ LVPECL	Si598	622.08 MHz	LVPECL	3.3V
565AAA1000M00BBG	Skyworks有源晶振	XTAL OSC VCXO 1.0000GHZ SMD	Ultra™ Si565	1 GHz	LVPECL	2.5V, 3.3V
514CCC000148AAG	Skyworks有源晶振	XTAL OSC XO 24.5760MHZ CMOS SMD	Si514	24.576 MHz	CMOS	3.3V
570KCB000121DG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ CML SMD	Si570	100 MHz	CML	1.8V
564DABA002006ABG	Skyworks有源晶振	XTAL OSC XO 1.61125GHZ CML SMD	Ultra™ Si564	1.61125 GHz	CML	1.8V, 2.5V, 3.3V
569AAAA000126BBG	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVPECL	Ultra™ Si569	200 MHz	LVPECL	2.5V, 3.3V
510FBA000149AAG	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVDS	Si510	74.175824 MHz	LVDS	2.5V
511ABA74M2500AAG	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVPECL	Si511	74.25 MHz	LVPECL	3.3V
510FBA212M500BAG	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si510	212.5 MHz	LVDS	2.5V
510CCA54M0000BAG	Skyworks有源晶振	XTAL OSC XO 54.0000MHZ CMOS SMD	Si510	54 MHz	CMOS	3.3V
510CCA12M0000AAG	Skyworks有源晶振	XTAL OSC XO 12.0000MHZ CMOS SMD	Si510	12 MHz	CMOS	3.3V
510CCA48M0000AAG	Skyworks有源晶振	XTAL OSC XO 48.0000MHZ CMOS SMD	Si510	48 MHz	CMOS	3.3V
510NBA125M000BAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ CMOS SMD	Si510	125 MHz	CMOS	3.3V
510CCA156M250AAG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CMOS SMD	Si510	156.25 MHz	CMOS	3.3V
531AA156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si531	156.25 MHz	LVPECL	3.3V
531AB156M250DG	Skyworks有源晶振	XO-DIFFSE SINGLEFREQ OE_PIN1 10	Si531	156.25 MHz	LVPECL	3.3V
530BC114M285DG	Skyworks有源晶振	XO-DIFFSE SINGLEFREQ OE_PIN2 10	Si530	114.285 MHz	LVDS	3.3V
530CC19M2000DG	Skyworks有源晶振	XO-DIFFSE SINGLEFREQ OE_PIN2 10	Si530	19.2 MHz	CMOS	3.3V
531AC622M080DG	Skyworks有源晶振	XTAL OSC XO 622.0800MHZ LVPECL	Si531	622.08 MHz	LVPECL	3.3V
550BJ25M0000DG	Skyworks有源晶振	VCXO DIFFSE SINGLE FREQ 10-14	Si550	25 MHz	LVDS	3.3V
564AAAA002021BBG	Skyworks有源晶體振蕩器	XTAL OSC XO 250.0000MHZ LVPECL	Ultra™ Si564	250 MHz	LVPECL	2.5V, 3.3V
564BACA001478BBG	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Ultra™ Si564	100 MHz	LVDS	1.8V, 2.5V, 3.3V
569DCBA001908BBG	Skyworks有源晶振	XTAL OSC VCXO 1.28127409GHZ CML	Ultra™ Si569	1.28127409 GHz	CML	1.8V, 2.5V, 3.3V
569AAAA000112ABG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Ultra™ Si569	10 MHz	LVPECL	2.5V, 3.3V
564BACA001989BBG	Skyworks有源晶振	XTAL OSC XO 2.0480GHZ LVDS SMD	Ultra™ Si564	2.048 GHz	LVDS	1.8V, 2.5V, 3.3V
510CBA156M250AAG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ CMOS SMD	Si510	156.25 MHz	CMOS	3.3V
510CBA30M0000AAG	Skyworks有源晶振	XTAL OSC XO 30.0000MHZ CMOS SMD	Si510	30 MHz	CMOS	3.3V
500DLAA200M000ACF	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si500D	200 MHz	LVDS	2.5V
511ABA200M000BAG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si511	200 MHz	LVPECL	3.3V
511MCA25M0000BAG	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ CMOS SMD	Si511	25 MHz	CMOS	3.3V
510JCA74M2500BAG	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si510	74.25 MHz	LVDS	1.8V
545AAA125M000BAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Ultra™ Si545	125 MHz	LVPECL	2.5V, 3.3V
530CA26M0000DG	Skyworks有源晶振	XTAL OSC XO 26.0000MHZ CMOS SMD	Si530	26 MHz	CMOS	3.3V
530EB50M0000DGR	Skyworks有源晶振	XTAL OSC XO 50.0000MHZ LVPECL	Si530	50 MHz	LVPECL	2.5V
590FD297M000DG	Skyworks有源晶振	XTAL OSC XO 297.0000MHZ LVDS SMD	Si590	297 MHz	LVDS	2.5V
531FC25M0000DGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	Si531	25 MHz	LVDS	2.5V
514BCA001826BAG	Skyworks有源晶振	XTAL OSC XO 216.9600MHZ LVDS SMD	Si514	216.96 MHz	LVDS	3.3V
531AC187M500DG	Skyworks有源晶振	XTAL OSC XO 187.5000MHZ LVPECL	Si531	187.5 MHz	LVPECL	3.3V
530EA312M500DG	Skyworks有源晶振	XTAL OSC XO 312.5000MHZ LVPECL	Si530	312.5 MHz	LVPECL	2.5V
