當前位置：首頁 » 進口晶振 » PETERMANN晶振 » 6G移動通信晶振\M2012-32.768kHz-±20ppm-9pF\德國進口彼得曼晶振

$6G移動通信晶振\M2012-32.768kHz-±20ppm-9pF\德國進口彼得曼晶振$

prevnext

6G移動通信晶振\M2012-32.768kHz-±20ppm-9pF\德國進口彼得曼晶振

頻率：32.768KHZ

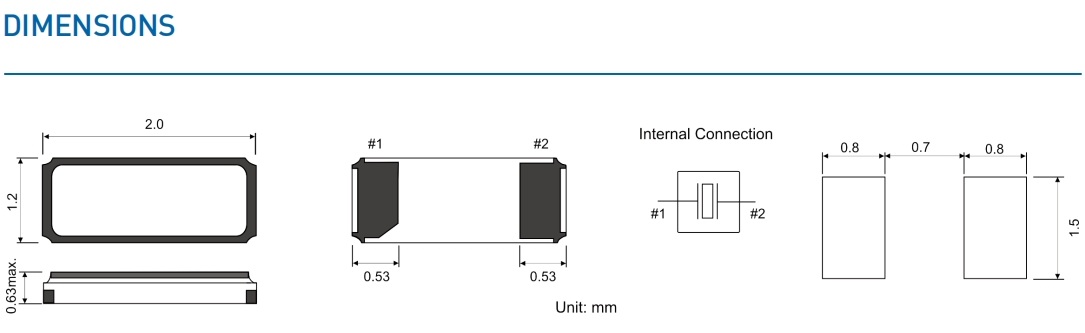

尺寸：2.0*1.2mm

6G移動通信晶振\M2012-32.768kHz-±20ppm-9pF\德國進口彼得曼晶振，尺寸2.0*1.2mm，頻率32.768KHZ，PETERMANN晶振，德國進口晶振，彼得曼音叉晶體，兩腳貼片晶振，2012mm無源晶體，石英晶體諧振器，石英晶體，無源貼片晶振，32.768無源晶體，石英無源晶體，水晶振動子，進口音叉晶振，32.768KHZ貼片晶振，時鐘專用晶振，無線網絡晶振，移動通信晶振，低成本無源晶振，小型設備晶振，娛樂設備晶振，輕薄型晶體，綠色環保晶振，高質量晶振，高性能晶振，低損耗石英晶體，具有低損耗高質量輕薄型的特點。

石英晶體產品超級適合用于優秀的時鐘發生器的CPU，無線網絡，時計產品，移動通信，娛樂設備，小型設備，儀器設備晶振等領域.6G移動通信晶振\M2012-32.768kHz-±20ppm-9pF\德國進口彼得曼晶振.

訂購熱線：0755-29952551

LH-1

LH-2

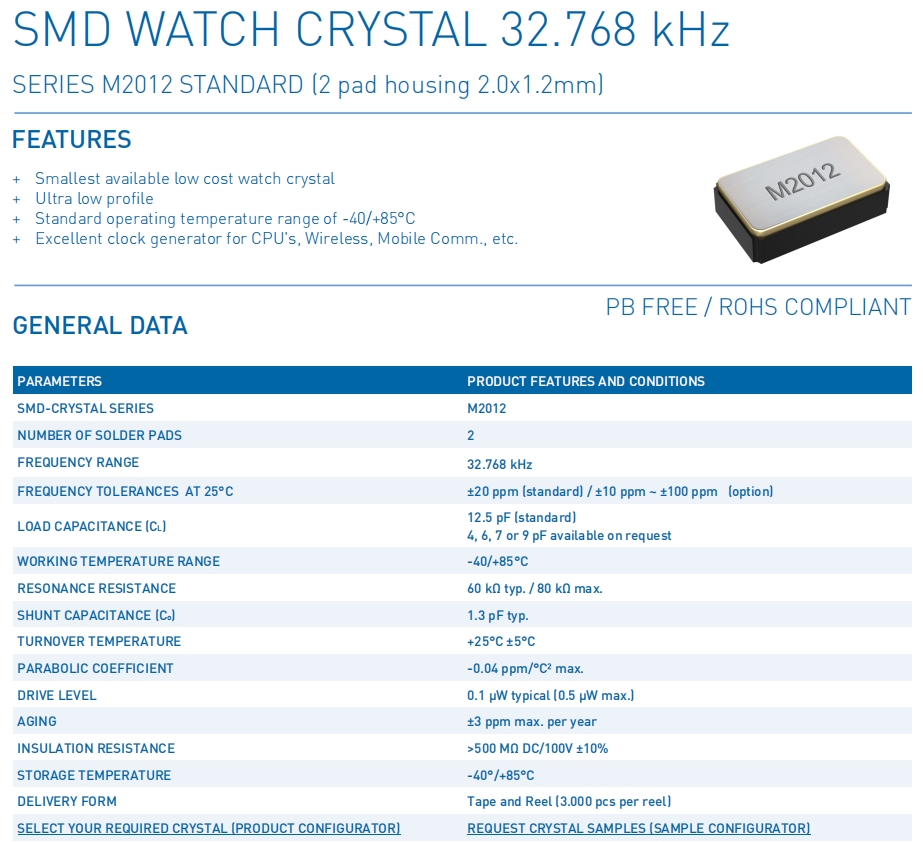

6G移動通信晶振\M2012-32.768kHz-±20ppm-9pF\德國進口彼得曼晶振 參數表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES	M2012
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	9 pF (standard) 4.6.7 and 9.0 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C
RESONANCE RESISTANCE	60 kΩ typ,/80 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.04ppm/°C²
DRIVE LEVEL	0.1 μW typical(0.5 μW max.)
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-40/+85°C
DELIVERY FORM	Tape and Reel (3.000 pcs per reel)
