頻率：12 MHz
尺寸：5.0*3.2mm
LFXTAL032878BULK,英國進口IQD晶振,環保晶振,18pF,石英晶體諧振器,四腳貼片,石英無源晶振,伊克德進口晶振,編碼 LFXTAL032878BULK,精度±50ppm,頻率12MHz,5032封裝,吸塵器晶振,遙控汽車晶振,兒童電話手表晶振,手電筒晶振,智能家居晶振,
LFXTAL032878BULK,英國進口IQD晶振,環保晶振,18pF
| 原廠編碼 | LFXTAL032878BULK |
| 頻率 | 12MHz |
| 廠家 | IQD晶振 |

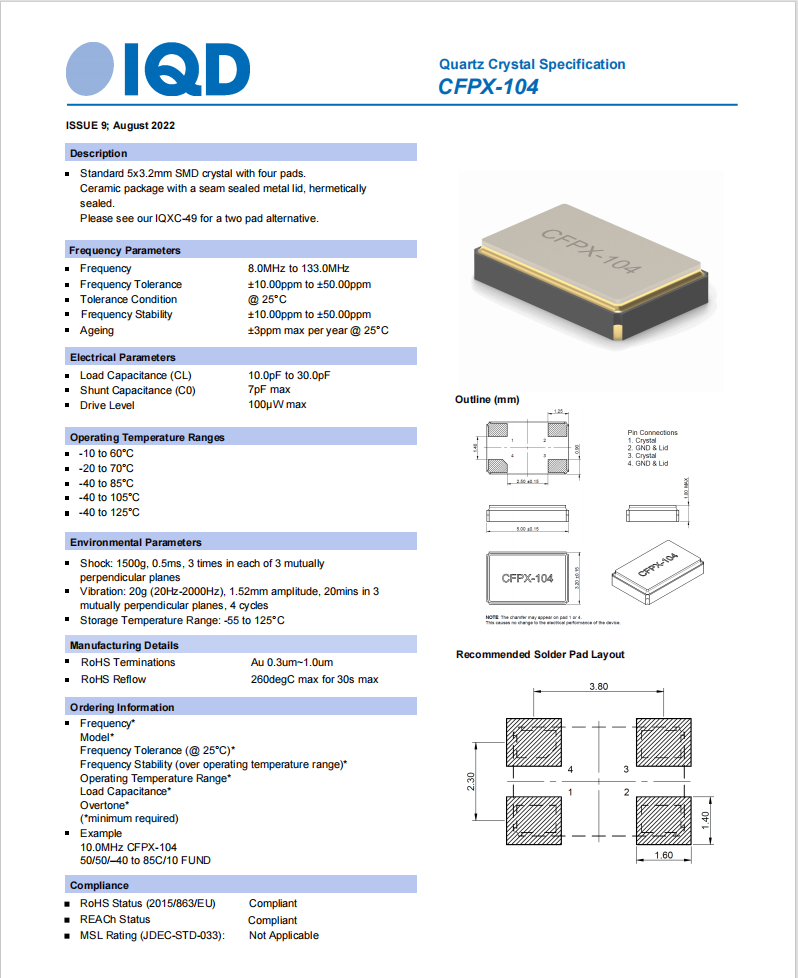

| 型號 | CFPX-104 |
| 頻率偏差 | ±50ppm |
| 負載電容 | 18pF |
| 工作溫度 | -10°C至60°C |

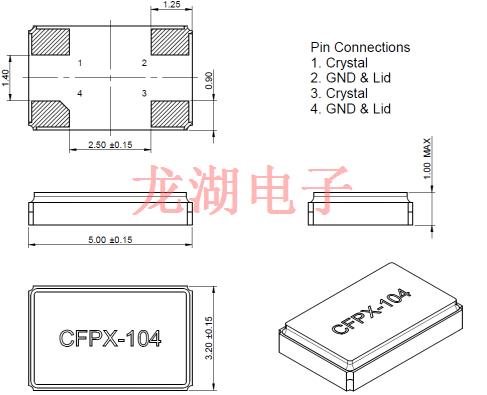

| 尺寸 | 5.0*3.2mm |
| Mfr Part # | Mfr | Series | Frequency | Frequency Tolerance | Load Capacitance |
| LFXTAL056808REEL | IQD 進口晶振 | CFPX-104 | 20 MHz | ±20ppm | 18pF |
| LFXTAL075997REEL | IQD 進口晶振 | CFPX-104 | 9.9 MHz | - | - |
| LFXTAL033265BULK | IQD 進口晶振 | CFPX-104 | 20 MHz | ±50ppm | 18pF |
| LFXTAL059523BULK | IQD 進口晶振 | CFPX-104 | 12.288 MHz | ±20ppm | 18pF |
| LFXTAL056808BULK | IQD 進口晶振 | CFPX-104 | 20 MHz | ±20ppm | 18pF |
| LFXTAL059529BULK | IQD 進口晶振 | CFPX-104 | 18.432 MHz | ±20ppm | 18pF |
| LFXTAL033328REEL | IQD 進口晶振 | CFPX-104 | 14.7456 MHz | ±50ppm | 18pF |
| LFXTAL059524REEL | IQD 進口晶振 | CFPX-104 | 13 MHz | ±20ppm | 18pF |
| LFXTAL059533REEL | IQD 進口晶振 | CFPX-104 | 27 MHz | ±20ppm | 18pF |
| LFXTAL033265REEL | IQD 進口晶振 | CFPX-104 | 20 MHz | ±50ppm | 18pF |
| LFXTAL033643REEL | IQD 進口晶振 | CFPX-104 | 14.31818 MHz | ±50ppm | 18pF |
| LFXTAL033644REEL | IQD 進口晶振 | CFPX-104 | 24.576 MHz | ±50ppm | 18pF |
| LFXTAL059477REEL | IQD 進口晶振 | CFPX-104 | 12.8 MHz | ±10ppm | 15pF |
| LFXTAL059526REEL | IQD 進口晶振 | CFPX-104 | 14.31818 MHz | ±20ppm | 18pF |
| LFXTAL059529REEL | IQD 進口晶振 | CFPX-104 | 18.432 MHz | ±20ppm | 18pF |
| LFXTAL059535REEL | IQD 進口晶振 | CFPX-104 | 32 MHz | ±20ppm | 18pF |
| LFXTAL059537REEL | IQD 進口晶振 | CFPX-104 | 40 MHz | ±20ppm | 18pF |
| LFXTAL059539REEL | IQD 進口晶振 | CFPX-104 | 48 MHz | ±20ppm | 18pF |
| LFXTAL065460REEL | IQD 進口晶振 | CFPX-104 | 30 MHz | ±10ppm | 10pF |
| LFXTAL072404REEL | IQD 進口晶振 | CFPX-104 | 26 MHz | ±20ppm | 18pF |
| LFXTAL065111REEL | IQD 進口晶振 | CFPX-104 | 12 MHz | ±50ppm | 18pF |
