頻率：32.768KHZ
尺寸：1.6x1.0mm
Geyer32.768K音叉晶振,12.87174時鐘晶振,KX-327FT兩腳貼片晶振，尺寸1.6x1.0mm，頻率32.768KHZ，格耶無源晶振，丹麥進口晶振，石英水晶振動子，石英晶振，無源晶振，無源貼片晶振，SMD晶振，無源石英晶振，1610mm小體積晶振，32.768K音叉晶體，SMD無源晶體，石英晶體諧振器，環保晶振，輕薄型晶體，32.768KHZ貼片晶振，時鐘應用晶振，智能電表專用晶振，電話機晶振，娛樂設備晶振，無線網絡晶振，通信應用晶振，數碼相機晶振，游戲機晶振，高品質晶振，高性能晶振，低損耗晶振，低功耗晶振，具有高品質低損耗的特點。
32.768K晶振產品可滿足不同應用程序的要求，適合用于時鐘應用，智能電表，電話機，娛樂設備，無線網絡，通信應用，數碼相機，游戲機等領域.Geyer32.768K音叉晶振,12.87174時鐘晶振,KX-327FT兩腳貼片晶振.
Geyer32.768K音叉晶振,12.87174時鐘晶振,KX-327FT兩腳貼片晶振，尺寸1.6x1.0mm，頻率32.768KHZ，格耶無源晶振，丹麥進口晶振，石英水晶振動子，石英晶振，無源晶振，無源貼片晶振，SMD晶振，無源石英晶振，1610mm小體積晶振，32.768K音叉晶體，SMD無源晶體，石英晶體諧振器，環保晶振，輕薄型晶體，32.768KHZ貼片晶振，時鐘應用晶振，智能電表專用晶振，電話機晶振，娛樂設備晶振，無線網絡晶振，通信應用晶振，數碼相機晶振，游戲機晶振，高品質晶振，高性能晶振，低損耗晶振，低功耗晶振，具有高品質低損耗的特點。
32.768K晶振產品可滿足不同應用程序的要求，適合用于時鐘應用，智能電表，電話機，娛樂設備，無線網絡，通信應用，數碼相機，游戲機等領域.Geyer32.768K音叉晶振,12.87174時鐘晶振,KX-327FT兩腳貼片晶振.

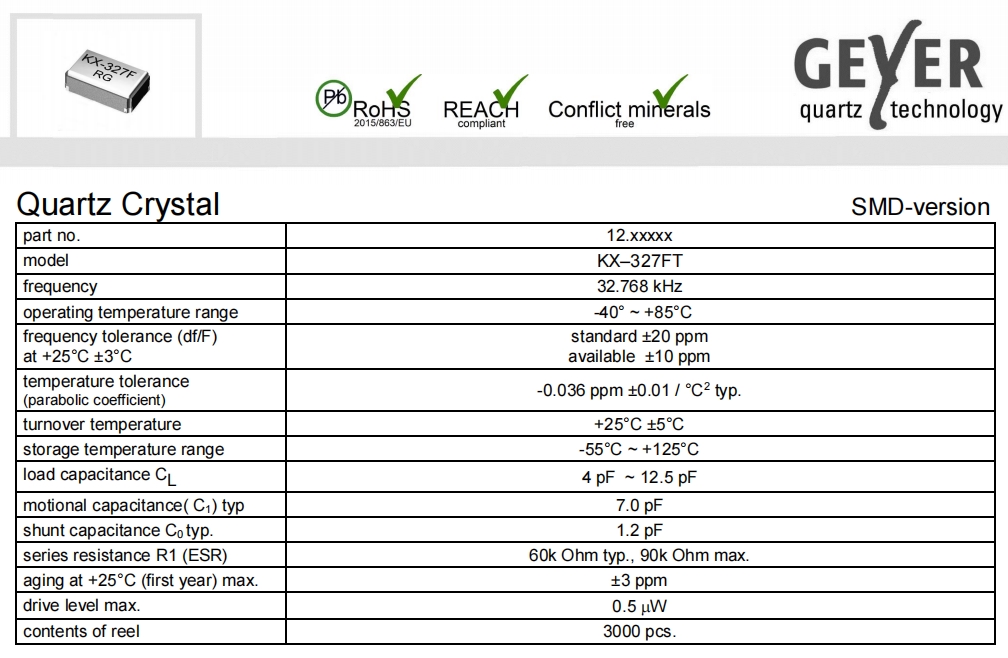

Geyer32.768K音叉晶振,12.87174時鐘晶振,KX-327FT兩腳貼片晶振 參數表
| part no. | 12.xxxxx | ||||
| model | KX–327FT | ||||
| frequency | 32.768 kHz | ||||
| operating temperature range | -40° ~ +85°C | ||||
|
frequency tolerance (df/F) at +25°C ±3°C |
standard ±20 available ±10 |
ppm ppm |
|||
|
temperature tolerance (parabolic coefficient) |
-0.036 ppm ±0.01 / °C2 typ. | ||||
| turnover temperature | +25°C ±5°C | ||||
| storage temperature range | -55°C ~ +125°C | ||||
| load capacitance CL | 4 pF ~ 12.5 pF | ||||
| motional capacitance( C1) typ | 7.0 pF | ||||
| shunt capacitance C0 typ. | 1.2 pF | ||||
| series resistance R1 (ESR) | 60k Ohm typ., 90k Ohm max. | ||||
| aging at +25°C (first year) max. | ±3 ppm | ||||
| drive level max. | 0.5 μW | ||||
| contents of reel | 3000 pcs. | ||||

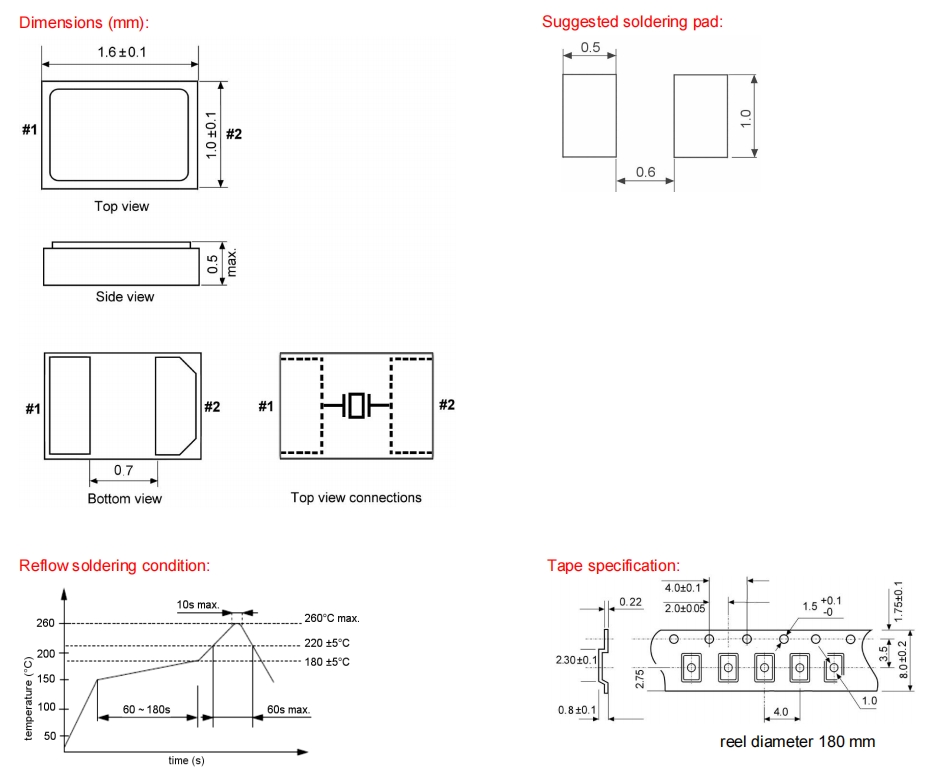

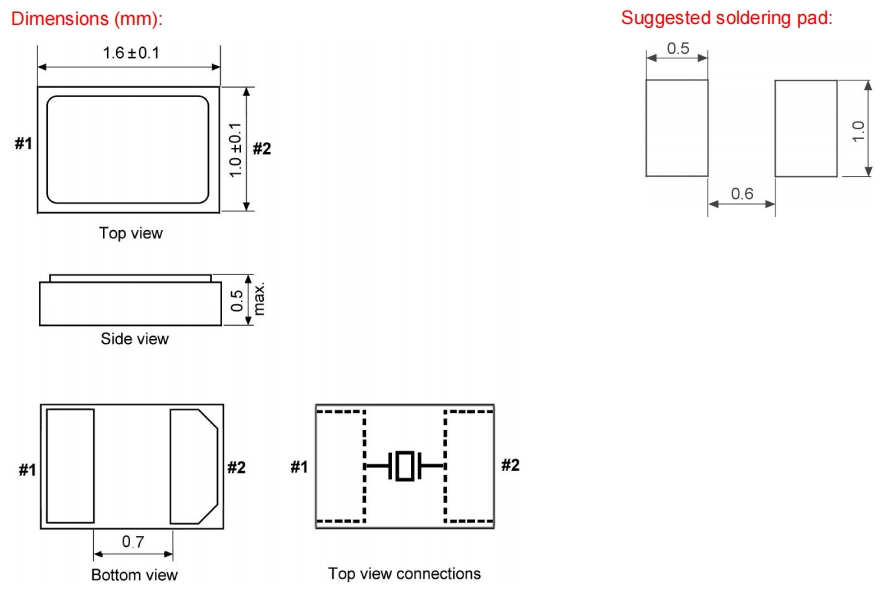

Geyer32.768K音叉晶振,12.87174時鐘晶振,KX-327FT兩腳貼片晶振 尺寸圖
Geyer32.768K音叉晶振,12.87174時鐘晶振,KX-327FT兩腳貼片晶振
SMD晶體產品特點:
1.6x1.0mm單元
符合RoHS無鉛
非常低的老化
| Mfr Part # | Mfr | Description | Series | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance |
| 12.85517 | Geyer晶振 | CYSTAL 54.0MHZ 8PF SMD | KX-5T | 54 MHz | ±100ppm | ±30ppm | 8pF |
| 12.89017 | Geyer晶振 | Crystal 13.560Mhz SMD KX-9A 16pF | KX-9A | 13.56 MHz | ±50ppm | ±30ppm | 16pF |
| 12.89082 | Geyer晶振 | Crystal 26.0Mhz SMD KX-9AT 16pF, | KX-9AT | 26 MHz | ±50ppm | ±30ppm | 16pF |
| 12.60075 | Geyer晶振 | Cystal 30.0Mhz 8pF SMD | KX-7 | 30 MHz | ±50ppm | ±30ppm | 8pF |
| 12.89155 | Geyer晶振 | Crystal 32.0Mhz SMD KX-9AT 16pF, | KX-9AT | 32 MHz | ±30ppm | ±30ppm | 16pF |
| 12.88522 | Geyer晶振 | Crystal 11.059200Mhz 12pF SMD | KX-7T | 11.0592 MHz | ±50ppm | ±30ppm | 12pF |
| 12.88752 | Geyer晶振 | Crystal 10.0Mhz 12pF SMD | KX-7 | 10 MHz | ±50ppm | ±30ppm | 12pF |
| 12.85569 | Geyer晶振 | CYSTAL 27.120MHZ 8PF SMD | KX-5T | 27.12 MHz | ±15ppm | ±10ppm | 8pF |
| 12.88565 | Geyer晶振 | Crystal 8.0Mhz 12pF SMD | KX-7E | 8 MHz | ±50ppm | ±30ppm | 12pF |
| 12.85538 | Geyer晶振 | CYSTAL 24.5760MHZ 8PF SMD | KX-5T | 24.576 MHz | ±100ppm | ±30ppm | 8pF |
| 12.86533 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6T | 26 MHz | ±100ppm | ±30ppm | 10pF |
| 12.89209 | Geyer晶振 | Crystal 16.0Mhz SMD KX-9AE 20pF, | KX-9AE | 16 MHz | ±50ppm | ±30ppm | 20pF |
| 12.8652 | Geyer晶振 | Cystal 27.0Mhz 10pF SMD | KX-6 | 27 MHz | ±50ppm | ±30ppm | 10pF |
| 12.86574 | Geyer晶振 | Crystal 27.0Mhz 8pF SMD | KX-6F | 27 MHz | ±150ppm | ±30ppm | 8pF |
| 12.85541 | Geyer晶振 | CYSTAL 30.0MHZ 8PF SMD | KX-5 | 30 MHz | ±30ppm | ±30ppm | 8pF |
| 12.84818 | Geyer晶振 | Crystal 24.0MHz 8pF SMD | KX-4 | 24 MHz | ±50ppm | ±30ppm | 8pF |
| 12.86527 | Geyer晶振 | Cystal 20.0Mhz 10pF SMD | KX-6T | 20 MHz | ±15ppm | ±10ppm | 10pF |
| 12.85534 | Geyer晶振 | CYSTAL 27.0MHZ 8PF SMD | KX-5T | 27 MHz | ±50ppm | ±30ppm | 8pF |
| 12.86505 | Geyer晶振 | Cystal 26.0Mhz 10pF SMD | KX-6 | 26 MHz | ±50ppm | ±30ppm | 10pF |
| 12.60024 | Geyer晶振 | Cystal 27.0Mhz 12pF SMD | KX-7E | 27 MHz | ±100ppm | ±30ppm | 12pF |
| 12.84803 | Geyer晶振 | Crystal 26.0MHz 8pF SMD | KX-4 | 26 MHz | ±20ppm | ±10ppm | 8pF |
| 12.85518 | Geyer晶振 | CYSTAL 20.0MHZ 8PF SMD | KX-5E | 20 MHz | ±50ppm | ±30ppm | 8pF |
| 12.8873 | Geyer晶振 | Crystal 26.0Mhz 12pF SMD | KX-7T | 26 MHz | ±50ppm | ±30ppm | 12pF |
| 12.86556 | Geyer晶振 | Crystal 40.0Mhz 8pF SMD | KX-6T | 40 MHz | ±20ppm | ±10ppm | 8pF |
| 12.88643 | Geyer晶振 | Crystal 14.3181800Mhz 12pF SMD | KX-7T | 14.31818 MHz | ±50ppm | ±30ppm | 12pF |
| 12.86511 | Geyer晶振 | Crystal 18.4320Mhz 10pF SMD | KX-6 | 18.432 MHz | ±50ppm | ±30ppm | 10pF |
| 12.88523 | Geyer晶振 | Crystal 40.0Mhz 12pF SMD | KX-7F | 40 MHz | ±50ppm | ±30ppm | 12pF |
| 12.89288 | Geyer晶振 | Crystal 24.5760Mhz SMD KX-9AT 20 | KX-9AT | 24.576 MHz | ±30ppm | ±20ppm | 20pF |
| 12.86536 | Geyer晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6 | 14.31818 MHz | ±50ppm | ±30ppm | 10pF |
| 12.89029 | Geyer晶振 | Crystal 27.0Mhz SMD KX-9A 16pF, | KX-9A | 27 MHz | ±50ppm | ±30ppm | 16pF |
| 12.88799 | Geyer晶振 | Crystal 12.0Mhz 10pF SMD | KX-7 | 12 MHz | ±30ppm | ±30ppm | 10pF |
| 12.8481 | Geyer晶振 | Crystal 48.0MHz 8pF SMD | KX-4 | 48 MHz | ±50ppm | ±30ppm | 8pF |
| 12.84814 | Geyer晶振 | Crystal 32.0MHz 8pF SMD | KX-4 | 32 MHz | ±15ppm | ±10ppm | 8pF |
| 12.88756 | Geyer晶振 | Crystal 10.0Mhz 12pF SMD | KX-7E | 26 MHz | ±50ppm | ±10ppm | 12pF |
| 12.8556 | Geyer晶振 | CYSTAL 16.0MHZ 8PF SMD | KX-5T | 16 MHz | ±30ppm | ±30ppm | 8pF |
| 12.86561 | Geyer晶振 | Crystal 40.0Mhz 10pF SMD | KX-6T | 40 MHz | ±20ppm | ±10ppm | 10pF |
| 12.8877 | Geyer晶振 | Crystal 30.0Mhz 12pF SMD | KX-7T | 30 MHz | ±10ppm | ±10ppm | 12pF |
| 12.86564 | Geyer晶振 | Crystal 14.318180Mhz 10pF SMD | KX-6T | 14.31818 MHz | ±100ppm | ±30ppm | 10pF |
| 12.86592 | Geyer晶振 | Crystal 25.0Mhz SMD KX-6T 12pF, | KX-6T | 25 MHz | ±20ppm | ±10ppm | 12pF |
| 12.87159 | Geyer晶振 | CRYSTAL 32.7680kHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 12.5pF |
| 12.87163 | Geyer晶振 | CRYSTAL 32.768KHZ 7PF SMD無源晶體 | KX-327RT | 32.768 kHz | -0.036ppm | ±20ppm | 7pF |
| 12.87151 | Geyer晶振 | CRYSTAL 32.7680kHz 9pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±30ppm | 9pF |
| 12.8717 | Geyer晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327FT | 32.768 kHz | - | ±20ppm | 12.5pF |
| 12.87148 | Geyer晶振 | CRYSTAL 32.7680KHZ 7PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 7pF |
| 12.87106 | Geyer晶振 | CRYSTAL 32.768KHZ 7PF SMD | KX-327XST | 32.768 kHz | ±20ppm | ±20ppm | 7pF |
| 12.8716 | Geyer晶振 | CYSTAL 32.7680KHZ 12.5PF SMD | KX-327RT | 32.768 kHz | ±20ppm | ±20ppm | 12.5pF |
| 12.87143 | Geyer晶振 | CRYSTAL 32.768KHz 9pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 9pF |
| 12.84801 | Geyer晶振 | Crystal 26.0MHz 8pF SMD | KX-4 | 26 MHz | ±50ppm | ±30ppm | 8pF |
| 12.8718 | Geyer晶振 | Crystal 32.7680kHz 9pF SMD | KX-327NHF | 32.768 kHz | -0.03ppm | ±20ppm | 9pF |
| 12.87147 | Geyer晶振 | CRYSTAL 32.768KHz 7pF SMD | KX-327NHT | 32.768 kHz | - | ±10ppm | 7pF |
| 12.87081 | Geyer晶振 | CRYSTAL 32.768KHZ 6PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 6pF |
| 12.87149 | Geyer晶振 | CRYSTAL 32.7680KHZ 9PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 9pF |
| 12.87156 | Geyer晶振 | CRYSTAL 32.768KHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 12.5pF |
| 12.87154 | Geyer晶振 | CRYSTAL 32.768KHz 12.5pF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 12.5pF |
| 12.87174 | Geyer晶振 | CRYSTAL 32.768KHz 7pF SMD | KX-327FT | 32.768 kHz | -0.036ppm | ±20ppm | 7pF |
| 12.87114 | Geyer晶振 | Cystal 32.7680Khz 12.5pF SMD | KX-327ST | 32.768 kHz | -0.034ppm, ±0.006ppm | ±20ppm | 12.5pF |
| 12.8715 | Geyer晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327NHT | 32.768 kHz | -0.035ppm | ±20ppm | 12.5pF |
| 12.87181 | Geyer晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327NHF | 32.768 kHz | -0.03ppm | ±20ppm | 12.5pF |
| 12.60023 | Geyer晶振 | Cystal 48.0Mhz 12pF SMD | KX-7E | 48 MHz | ±50ppm | ±30ppm | 12pF |
| 12.85559 | Geyer晶振 | CYSTAL 40.0MHZ 8PF SMD | KX-5 | 40 MHz | ±50ppm | ±30ppm | 8pF |
