頻率：20MHz
尺寸：2.0*1.6mm

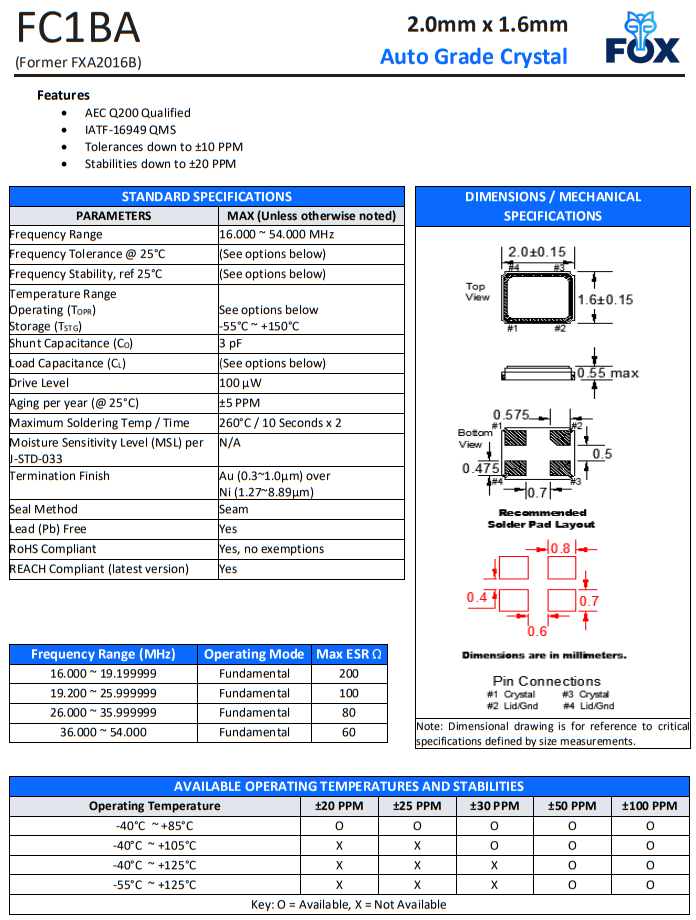

FC1BAEBDI20.0-T1,石英晶體諧振器,福克斯諧振器,輕薄型晶振,四腳晶振,2016mm貼片晶振,石英晶體諧振器,石英貼片晶振,抗沖擊晶振,無鉛環保晶振,高可靠性晶振,抗振晶振,低抖動晶振,超小型晶振,心電圖晶振,數字熱水表晶振,計算機晶振,電腦主機晶振,筆記本電腦晶振,數控車床控制板晶振,移動電話晶振,數碼相機晶振,藍牙晶振,
FC1BAEBDI20.0-T1,石英晶體諧振器,福克斯諧振器,輕薄型晶振
| 原廠編碼 | FC1BAEBDI20.0-T1 |
| 頻率 | 20MHz |
| 廠家 | FOX晶振 |
| 型號 | FC1BA |
| 頻率偏差 | ±50ppm |
| 負載電容 | 8pF |
| 工作溫度 | -40°C至125°C |

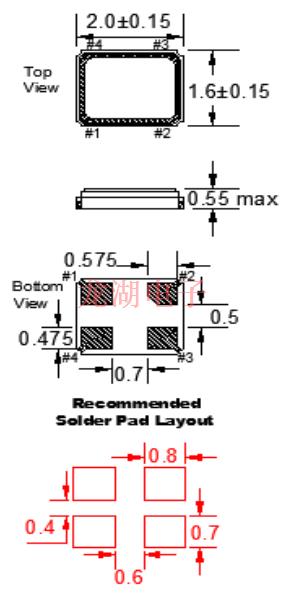

| 尺寸 | 2.0*1.6mm |
FC1BAEBDI20.0-T1,石英晶體諧振器,福克斯諧振器,輕薄型晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 頻率容差 | 負載電容 |
| FC2BAEBEI12.0-T1 | Fox crystal | FC2BA | 12 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI16.0-T1 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI20.0-T1 | Fox crystal | FC2BA | 20 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI24.0-T1 | Fox crystal | FC2BA | 24 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI40.0-T1 | Fox crystal | FC2BA | 40 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBGI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
| FC2BSBBMM16.0-T1 | Fox crystal | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC2BSBBMM16.0-T3 | Fox crystal | FC2BS | 16 MHz | ±50ppm | ±50ppm | 20 pF |
| FC3BABBKM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±50ppm | 16 pF |
| FC3BACAGI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 12 pF |
| FC3BACALI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±100ppm | ±30ppm | 18 pF |
| FC3BACBDI16.0-T3 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±30ppm | 8 pF |
| FC3BACCGM20.0-T3 | Fox crystal | FC3BA | 20 MHz | ±30ppm | ±30ppm | 12 pF |
| FC3BACCLP12.0-T3 | Fox crystal | FC3BA | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| FC3BAEBDI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI16.0-T1 | Fox crystal | FC3BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI20.0-T1 | Fox crystal | FC3BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI40.0-T1 | Fox crystal | FC3BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBDI8.0-T1 | Fox crystal | FC3BA | 8 MHz | ±50ppm | ±20ppm | 8 pF |
| FC3BAEBGI12.0-T1 | Fox crystal | FC3BA | 12 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI24.0-T1 | Fox crystal | FC3BA | 24 MHz | ±50ppm | ±20ppm | 12 pF |
| FC3BAEBGI25.0-T1 | Fox crystal | FC3BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
深圳市龍湖電子有限公司
服務熱線：86-0755-29952551
手機聯系：136-3294-3514
Q Q聯系：969080538
郵 箱：longhusz@163.com
地 址：深圳市寶安區新安街道安樂社區二街
貼片晶振本身體積小,超薄型石英晶體諧振器,特別適用于有目前高速發展的高端電子數碼產品,因?yàn)榫д癖旧硇⌒突枨蟮氖袌?chǎng)領域,小型,薄型是對應陶瓷諧振器（偏差大）和普通的石英晶體諧振器（偏差小）的中間領域的一種性價比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航HDD, SSD, USB, Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性.
貼片晶振本身體積小,超薄型石英晶體諧振器,特別適用于有目前高速發展的高端電子數碼產品,因?yàn)榫д癖旧硇⌒突枨蟮氖袌?chǎng)領域,小型,薄型是對應陶瓷諧振器（偏差大）和普通的石英晶體諧振器（偏差小）的中間領域的一種性價比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航HDD, SSD, USB, Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性.
