頻率：25MHZ
尺寸：7.0×5.0mm
CX5物聯網晶振,Cardinal薄型晶體,CX5Z-A2B2C5-40-25D18，尺寸7.0×5.0mm，頻率25MHZ，卡迪納爾晶振，歐美進口晶振，進口無源晶振，四腳貼片晶振，石英貼片晶振，石英晶體諧振器，石英振動子，7050mm石英晶振，SMD晶振，無源晶振，石英晶振，輕薄型晶振，25MHZ貼片晶振，物聯網晶振，儀器設備晶振，智能手機晶振，藍牙晶振，無線網絡晶振，數碼電子專用晶振，以太網晶振，數字音頻晶振，低損耗晶振，低功耗晶振，高質量晶振，具備良好的可靠性能。
7050晶振產品常常應用于物聯網，儀器設備，智能手機，藍牙，無線網絡，數碼電子專，以太網，數字音頻等領域.CX5物聯網晶振,Cardinal薄型晶體,CX5Z-A2B2C5-40-25D18.
CX5物聯網晶振,Cardinal薄型晶體,CX5Z-A2B2C5-40-25D18，尺寸7.0×5.0mm，頻率25MHZ，卡迪納爾晶振，歐美進口晶振，進口無源晶振，四腳貼片晶振，石英貼片晶振，石英晶體諧振器，石英振動子，7050mm石英晶振，SMD晶振，無源晶振，石英晶振，輕薄型晶振，25MHZ貼片晶振，物聯網晶振，儀器設備晶振，智能手機晶振，藍牙晶振，無線網絡晶振，數碼電子專用晶振，以太網晶振，數字音頻晶振，低損耗晶振，低功耗晶振，高質量晶振，具備良好的可靠性能。
7050晶振產品常常應用于物聯網，儀器設備，智能手機，藍牙，無線網絡，數碼電子專，以太網，數字音頻等領域.CX5物聯網晶振,Cardinal薄型晶體,CX5Z-A2B2C5-40-25D18.
CX5物聯網晶振,Cardinal薄型晶體,CX5Z-A2B2C5-40-25D18 參數表
| Parameter | Min | Typ | Max | Unit | Condition | ||||||||||||||||||||||||||||||
| Frequency Range |
|
25.0 |
|
MHz | |||||||||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±50 | ppm | at +25oC ± 3oC, see part number guide below for available options | ||||||||||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | |||||||||||||||||||||||||||||||
| Equivalent Series Resistance (ESR) | - | - |
45 40 35 30 25 80 |
Ω |
7.3728 MHz ≤ Freq < 9 MHz 9 MHz ≤ Freq <13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq ≤ 36 MHz 30 MHz ≤ Freq < 48 MHz (3rd Overtone) |
||||||||||||||||||||||||||||||
| Drive Level | - | - | 100 | µW | Use 10µW for testing | ||||||||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | ||||||||||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±3 | ppm | for the first year | ||||||||||||||||||||||||||||||
| - | - | ±2 | ppm | after the first year | |||||||||||||||||||||||||||||||

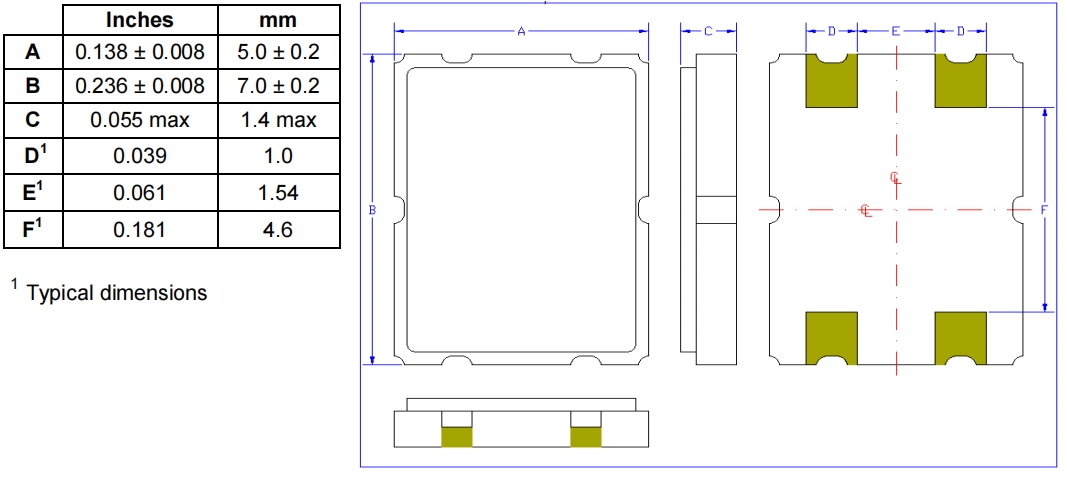

CX5物聯網晶振,Cardinal薄型晶體,CX5Z-A2B2C5-40-25D18 尺寸圖
CX5物聯網晶振,Cardinal薄型晶體,CX5Z-A2B2C5-40-25D18
SMD crystal產品特點:
小型薄型表面貼裝水晶。
包裝是自動表面安裝的理想選擇組裝和回流實踐。
磁帶和卷軸包裝。
AT切割水晶
| Manufacturer Part Number 原廠編碼 | 晶振廠家 | Description 參數 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Operating Temperature 工作溫度 |
| CX5Z-A5B2C5-70-7.37280D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CX5 | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-12.288D18 | Cardinal晶振 | CRYSTAL 12.2880MHZ 18PF SMD | CX532 | 12.288MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX532 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CX5 | 7.3728MHz | ±50ppm | -40°C ~ 125°C |
| CX325Z-A5B2C5-50-20.0D18 | 卡迪納爾晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX325 | 20MHz | ±50ppm | -20°C ~ 70°C |
| CX635A-A5B2C3-40-18.432D13 | 卡迪納爾晶振 | CRYSTAL 18.4320MHZ 13PF SMD | CX635A | 18.432MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-12.0D18 | 卡迪納爾晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX5 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CX5 | 24.576MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -10°C ~ 70°C |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX5 | 16MHz | ±50ppm | -10°C ~ 60°C |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CRYSTAL 19.6608MHZ 18PF SMD | CX532 | 19.6608MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CRYSTAL 33.0000MHZ 18PF SMD | CX532 | 33MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CRYSTAL 17.7456MHZ 18PF SMD | CX532 | 14.7456MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CRYSTAL 50.0000MHZ 18PF SMD | CX532 | 50MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CRYSTAL 30.0000MHZ 18PF SMD | CX532 | 30MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX532 | 27MHz | ±30ppm | -20°C ~ 70°C |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX532 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX532 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX5 | 12MHz | ±50ppm | -40°C ~ 85°C |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX5 | 12MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CX5 | 10MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX5 | 25MHz | ±50ppm | -20°C ~ 70°C |
| CX635BZ-A1B2C3-80-14.31818D20 | Cardinal晶振 | CRYSTAL 14.31818MHZ 20PF SMD | CX635B | 14.31818MHz | ±50ppm | -10°C ~ 70°C |
| CX532Z-A5B3C5-70-18.432D18 | Cardinal晶振 | CRYSTAL 18.4320MHZ 18PF SMD | CX532 | 18.432MHz | ±30ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-25.0D18 | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CX532 | 25MHz | ±30ppm | -40°C ~ 85°C |
