安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M

頻率：52MHZ

尺寸：2.0x1.6mm

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M，尺寸2.0x1.6mm，頻率52MHZ，Aker無源晶振，進口貼片晶振，四腳貼片晶振，石英貼片晶振，水晶振動子，石英晶體諧振器，無源貼片晶振，無源晶振，SMD無源晶體，無源石英晶體，SMD晶振，石英晶振，2016mm貼片晶振，環保晶振，低耗能晶振，低損耗晶振，低功耗晶振，高品質晶振，微處理器晶振，娛樂設備晶振，可穿戴設備晶振，儀器設備晶振，汽車音響晶振，娛樂設備晶振，游戲設備晶振，便攜式設備晶振，數字視頻晶振，物聯網晶振，具有低功耗高品質的特點.

石英晶體產品超級適合用于微處理器，娛樂設備，可穿戴設備，儀器設備，汽車音響，娛樂設備，游戲設備，便攜式設備，數字視頻，物聯網等領域。安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M.

訂購熱線：0755-29952551
QQ咨詢 財富通

Abracon-2

LH-1

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M，尺寸2.0x1.6mm，頻率52MHZ，Aker無源晶振，進口貼片晶振，四腳貼片晶振，石英貼片晶振，水晶振動子，石英晶體諧振器，無源貼片晶振，無源晶振，SMD無源晶體，無源石英晶體，SMD晶振，石英晶振，2016mm貼片晶振，環保晶振，低耗能晶振，低損耗晶振，低功耗晶振，高品質晶振，微處理器晶振，娛樂設備晶振，可穿戴設備晶振，儀器設備晶振，汽車音響晶振，娛樂設備晶振，游戲設備晶振，便攜式設備晶振，數字視頻晶振，物聯網晶振，具有低功耗高品質的特點.

石英晶體產品超級適合用于微處理器，娛樂設備，可穿戴設備，儀器設備，汽車音響，娛樂設備，游戲設備，便攜式設備，數字視頻，物聯網等領域。安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M.

LH-2

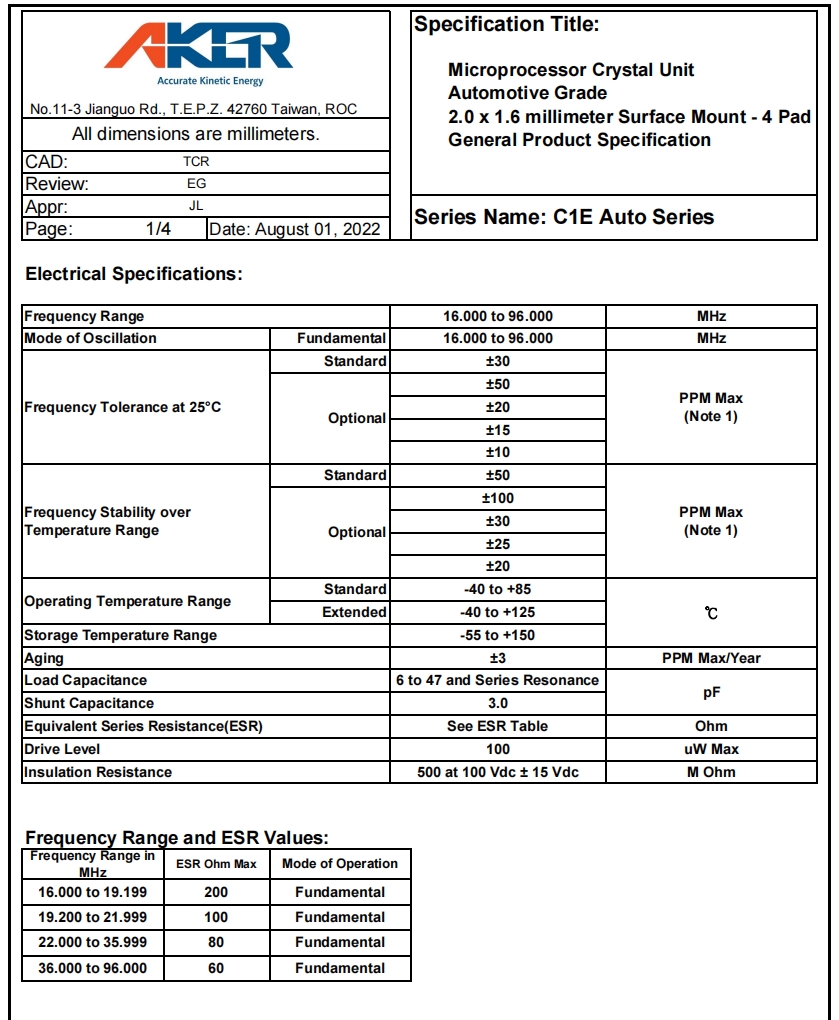

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M        參數表

Frequency Range 52.000 MHz
Mode of Oscillation Fundamental 16.000 to 96.000 MHz
Frequency Tolerance at 25°C Standard ±30 PPM Max
(Note 1)
Optional ±50
±20
±15
±10
Frequency Stability over
Temperature Range 		Standard ±50 PPM Max
(Note 1)
Optional ±100
±30
±25
±20
Operating Temperature Range Standard -40 to +85 ℃
Extended -40 to +125
Storage Temperature Range -55 to +150
Aging ±3 PPM Max/Year
Load Capacitance 6 to 47 and Series Resonance pF
Shunt Capacitance 3.0
Equivalent Series Resistance(ESR) See ESR Table Ohm
Drive Level 100 uW Max
Insulation Resistance 500 at 100 Vdc ± 15 Vdc M Ohm
LH-3

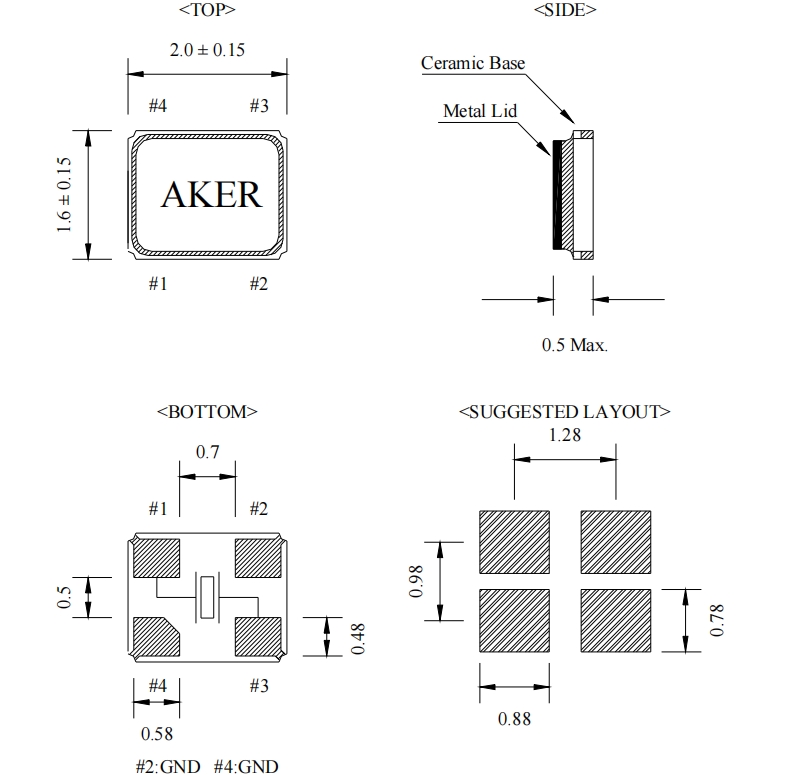

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M        尺寸圖

C1E

安基2016mm晶振,C1E微處理器晶振,C1E-52.000-8-1012-X-M

產品特點:

微處理器貼片晶體單元

汽車等級

2.0x1.6毫米表面安裝-4個襯墊

通用產品規范


C1E 1

Mfr Part # 晶振廠家 Description Series Frequency Frequency Stability Frequency Tolerance
C3E-8.000-12-1020-M Aker Technology Corp CRYSTAL 8MHZ 12PF SMD C3E 8 MHz ±10ppm ±20ppm
C2E-12.000-8-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 8PF SMD AEC-Q200 C2E X1 12 MHz ±50ppm ±20ppm
C3E-16.000-10-2050-X1-R Aker Technology Corp CRYSTAL 10MHZ 10PF SMD AEC-Q200 C3E X1 10 MHz ±50ppm ±20ppm
C3E-30.000-8-2050-X1-R Aker Technology Corp CRYSTAL 30MHZ 8PF SMD AEC-Q200 C3E X1 30 MHz ±50ppm ±20ppm
C7S-12.000-12-3030-X-R Aker Technology Corp CRYSTAL 12MHZ 12PF SMD C7S 12 MHz ±30ppm ±30ppm
C7S-8.000-18-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C7S 8 MHz ±20ppm ±10ppm
C7S-8.000-18-1030-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD C7S 8 MHz ±30ppm ±10ppm
CA4-16.000-18-3050-R Aker Technology Corp CRYSTAL 16MHZ 18PF SMD CA4 16 MHz ±50ppm ±30ppm
CA4-8.000-16-3050-R Aker Technology Corp CRYSTAL 8.000MHZ 16PF SMD CA4 8 MHz ±50ppm ±30ppm
C3E-8.000-10-1020-M Aker Technology Corp CRYSTAL 8MHZ 10PF SMD C3E 8 MHz ±20ppm ±10ppm
C16-96.000-8-1520-X2-R Aker Technology Corp CRYSTAL 96MHZ 8PF SMD - 96 MHz ±15ppm ±20ppm
C1E-76.800-10-1012-X-M Aker Technology Corp CRYSTAL 76.8MHZ 10PF SMD C1E 76.8 MHz ±10ppm ±10ppm
C1E-80.000-10-1015-X-M Aker Technology Corp CRYSTAL 80MHZ 10PF SMD C1E 80 MHz ±10ppm ±10ppm
C1E-76.800-8-1012-X-M Aker Technology Corp CRYSTAL 76.8MHZ 8PF SMD C1E 46.8 MHz ±10ppm ±10ppm
C1E-80.000-8-1015-X-M Aker Technology Corp CRYSTAL 80MHZ8PF SMD C1E 80 MHz ±10ppm ±10ppm
C3E-24.576-12-3030-X-R Aker Technology Corp CRYSTAL 24.5760MHZ 12PF SMD C3E 24.576 MHz ±30ppm ±30ppm
C3E-30.000-12-1020-X-R Aker Technology Corp CRYSTAL 30MHZ 12PF SMD C3E 30 MHz ±10ppm ±20ppm
C3E-12.000-12-1015-R Aker Technology Corp CRYSTAL 12.0000MHZ 12PF SMD C3E 12 MHz ±15ppm ±10ppm
C3E-25.000-8-1015-X-R Aker Technology Corp CRYSTAL 25.0000MHZ 8PF SMD C3E 25 MHz ±15ppm ±10ppm
C3E-26.000-10-1015-X-R3 Aker Technology Corp CRYSTAL 26.0000MHZ 10PF SMD C3E 26 MHz ±15ppm ±10ppm
C16-26.000-8-1010-R Aker Technology Corp CRYSTAL 26MHZ 8PF SMD C16 26 MHz ±10ppm ±10ppm
C3E-16.000-8-2050-X1-R Aker Technology Corp CRYSTAL 16MHZ 8PF SMD AEC-Q200 C3E X1 16 MHz ±50ppm ±20ppm
C3E-8.000-12-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 12PF SMD C3E 8 MHz ±20ppm ±10ppm
C2E-12.000-10-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 10PF SMD AEC-Q200 C2E X1 12 MHz ±50ppm ±20ppm
C1E-96.000-8-1216-X2-R Aker Technology Corp CRYSTAL 96MHZ 8PF SMD C1E X2 96 MHz ±16ppm ±12ppm
C3E-12.000-12-3030-X-R Aker Technology Corp CRYSTAL 12.0000MHZ 12PF SMD C3E 12 MHz ±30ppm ±30ppm
C3E-27.120-12-1010-R Aker Technology Corp CRYSTAL 27.1200MHZ 12PF SMD C3E 27.12 MHz ±10ppm ±10ppm
C3E-24.576-12-1010-R Aker Technology Corp CRYSTAL 24.5760MHZ 12PF SMD C3E 24.576 MHz ±10ppm ±10ppm
C3E-16.000-12-1015-R Aker Technology Corp CRYSTAL 16.0000MHZ 12PF SMD C3E 16 MHz ±15ppm ±10ppm
C3E-13.560-12-1530-X-R Aker Technology Corp CRYSTAL 13.5600MHZ 12PF SMD C3E 13.56 MHz ±30ppm ±15ppm
C2E-16.000-10-1010-R Aker Technology Corp CRYSTAL 16.0000MHZ 10PF SMD C2E 16 MHz ±10ppm ±10ppm
C1E-24.000-10-1015-M Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C1E 24 MHz ±15ppm ±10ppm
C2E-25.000-10-3030-X-M Aker Technology Corp CRYSTAL 25.0000MHZ 10PF SMD C2E 25 MHz ±30ppm ±30ppm
C2E-48.000-10-1020-X-R Aker Technology Corp CRYSTAL 48MHZ SMD FOR WIFI C2E 48 MHz ±20ppm ±10ppm
C3E-20.000-10-3050-X1-R Aker Technology Corp CRYSTAL 20MHZ 10PF SMD AEC-Q200 C3E X1 20 MHz ±50ppm ±30ppm
C1E-96.000-9.9-1216-X2-R Aker Technology Corp CRYSTAL 96MHZ 9.9PF SMD C1E 96 MHz ±16ppm ±12ppm
C1E-52.000-8-1012-X-M Aker Technology Corp CRYSTAL 52MHZ 10PF SMD C1E 52 MHz ±10ppm ±10ppm
C1E-52.000-10-1012-X-M Aker Technology Corp CRYSTAL 52MHZ 8PF SMD C1E 52 MHz ±10ppm ±10ppm
C3E-27.120-12-1020-X-R Aker Technology Corp CRYSTAL 27.120MHZ 12PF SMD C3E 27.12 MHz ±10ppm ±20ppm
C3E-16.000-9-1010-R Aker Technology Corp CRYSTAL 16MHZ 9PF SMD C3E 16 MHz ±10ppm ±10ppm
C5S-24.000-20-3030-X-R Aker Technology Corp CRYSTAL 24MHZ 20PF SMD C5S 24 MHz ±30ppm ±30ppm
C5S-12.000-16-5050-X-R Aker Technology Corp CRYSTAL 12MHZ 16PF SMD C5S 12 MHz ±50ppm ±50ppm
C5S-20.000-20-3050-X-R Aker Technology Corp CRYSTAL 20MHZ 20PF SMD C5S 20 MHz ±30ppm ±50ppm
C5S-12.000-16-3030-X-R Aker Technology USA CRYSTAL 12.0000MHZ 16PF SMD C5S 12 MHz ±30ppm ±30ppm
C5S-8.000-12-2020-X-R Aker Technology Corp CRYSTAL 8MHZ 12PF SMD C5S 8 MHz ±20ppm ±20ppm
C6S-16.000-12-5050-X-R Aker Technology Corp CRYSTAL 16MHZ 12PF SMD C6S 16 MHz ±50ppm ±50ppm
C2E-20.000-10-2050-X1-R Aker Technology Corp CRYSTAL 20MHZ 10PF SMD AEC-Q200 C2E X1 20 MHz ±50ppm ±20ppm
C5S-8.000-18-3030-X-R Aker Technology USA CRYSTAL 8.0000MHZ 18PF SMD C5S 8 MHz ±30ppm ±30ppm
C5S-8.000-16-3030-X-R Aker Technology USA CRYSTAL 8.0000MHZ 16PF SMD C5S 8 MHz ±30ppm ±30ppm
C3E-16.000-8-50100-X1-R Aker Technology Corp CRYSTAL 16.0000MHZ 8PF SMD C3E 16 MHz ±100ppm ±50ppm
C1E-32.000-8-1015-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 8PF SMD C1E 32 MHz ±15ppm ±10ppm
C3E-16.000-8-50150-A-X3-R Aker Technology Corp UWB CRYSTAL, 3225, 16.000MHZ, 8P C3E Auto 16 MHz ±150ppm ±50ppm
C1E-40.000-8-1030-A-X2-R Aker Technology Corp UWB CRYSTAL, 2016, 40.000MHZ, 8P C1E Auto 40 MHz ±30ppm ±10ppm
C1E-40.000-8-1550-X1-R Aker Technology Corp UWB CRYSTAL, 2016, 40.0000MHZ, 8 C1E 40 MHz ±50ppm ±15ppm
C1E-16.000-10-1520-X-R Aker Technology Corp UWB CRYSTAL, 2016, 16.000MHZ, 10 C1E 16 MHz ±20ppm ±15ppm
C3E-8.000-8-10150-A-X3-R Aker Technology Corp UWB CRYSTAL, 3225, 8.000MHZ, 8PF C3E Auto 8 MHz ±150ppm ±10ppm
C1E-55.200-8-1035-A-X2-R Aker Technology Corp UWB CRYSTAL, 2016, 55.200MHZ, 8P C1E Auto 55.2 MHz ±35ppm ±10ppm
C16-40.000-8-1020-A-X-R Aker Technology Corp UWB CRYSTAL, 1612, 40.0000MHZ, 8 C16 Auto 40 MHz ±20ppm ±10ppm
C1E-48.000-8-1020-X2-M Aker Technology Corp CRYSTAL 48MHZ 8PF SMD C1E 48 MHz ±10ppm ±10ppm
C1E-48.000-10-1020-X2-M Aker Technology Corp CRYSTAL 48MHZ 10PF C1E 48 MHz ±10ppm ±10ppm
C1E-40.000-8-1050-A-X1-R Aker Technology Corp CRYSTAL, 1612, 40.000MHZ, 8PF, S C1E Auto 40 MHz ±50ppm ±10ppm
C3E-16.000-8-10150-A-X3-R Aker Technology Corp CRYSTAL, 3225, 16.000MHZ, 8PF, S C3E Auto 16 MHz ±150ppm ±10ppm
C1E-32.000-8-1550-A-X1-R Aker Technology Corp CRYSTAL, 1612, 32.000MHZ, 8PF, S C1E Auto 32 MHz ±50ppm ±15ppm
C1E-24.000-8-1050-A-X1-R Aker Technology Corp CRYSTAL, 1612, 24.000MHZ, 8PF, S C1E Auto 24 MHz ±50ppm ±10ppm
C1E-25.000-12-1050-A-X1-R Aker Technology Corp CRYSTAL, 1612, 25.000MHZ, 12PF, C1E Auto 25 MHz ±50ppm ±10ppm
C3E-24.000-12-1050-A-X1-R Aker Technology Corp CRYSTAL, 3225, 24.000MHZ, 12PF, C3E無源晶振 24 MHz ±50ppm ±10ppm
C3E-8.000-8-1080-A-X1-R Aker Technology Corp CRYSTAL, 3225, 8.000MHZ, 8PF, SM C3E Auto 8 MHz ±80ppm ±10ppm
C1E-16.000-12-20100-A-X1-R Aker Technology Corp CRYSTAL, 2016, 16.000MHZ, 12PF, C1E Auto 16 MHz ±100ppm ±20ppm
C3E-16.000-12-2050-A-X1-R Aker Technology Corp CRYSTAL, 3225, 16.000MHZ, 12PF, C3E Auto 16 MHz ±50ppm ±20ppm
C5S-24.000-18-20100-A-X1-R Aker Technology Corp CRYSTAL, 5032 ,24.000MHZ, 18PF, C5S Auto - ±100ppm ±20ppm
C2E-19.200-13-2030-X-R Aker Technology USA CRYSTAL 19.2MHz 13PF SMD C2E 19.2 MHz ±30ppm ±20ppm
