首頁 NDK晶振

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器

產品簡介

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器，尺寸2.5x2.0mm，頻率33MHZ，輸出邏輯CMOS，日本電波石英晶振，日本進口晶振，進口有源振蕩器，時鐘晶體振蕩器，Clock Oscillator，石英有源晶振，貼片有源晶振，有源晶體振蕩器，2520mm有源晶振，移動通信有源晶振，便攜式設備有源晶振，筆記本電腦有源晶振，可視化設備有源晶振，智能穿戴有源晶振，游戲設備有源晶振，娛樂設備有源晶振，低電壓有源晶振，低抖動有源晶振，低耗能有源晶振，低相位有源晶振，低相位有源晶振，具有低抖動低相位的特點。

OSC晶振產品非常適合用于移動通信晶振，便攜式設備，筆記本電腦，可視化設備，智能穿戴，游戲設備，娛樂設備等應用場景.NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器.

產品詳情

Abracon-2

LH-1

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器，尺寸2.5x2.0mm，頻率33MHZ，輸出邏輯CMOS，日本電波石英晶振，日本進口晶振，進口有源振蕩器，時鐘晶體振蕩器，Clock Oscillator，石英有源晶振，貼片有源晶振，有源晶體振蕩器，2520mm有源晶振，移動通信有源晶振，便攜式設備有源晶振，筆記本電腦有源晶振，可視化設備有源晶振，智能穿戴有源晶振，游戲設備有源晶振，娛樂設備有源晶振，低電壓有源晶振，低抖動有源晶振，低耗能有源晶振，低相位有源晶振，低相位有源晶振，具有低抖動低相位的特點。

OSC晶振產品非常適合用于移動通信晶振，便攜式設備，筆記本電腦，可視化設備，智能穿戴，游戲設備，娛樂設備等應用場景.NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器.LH-2

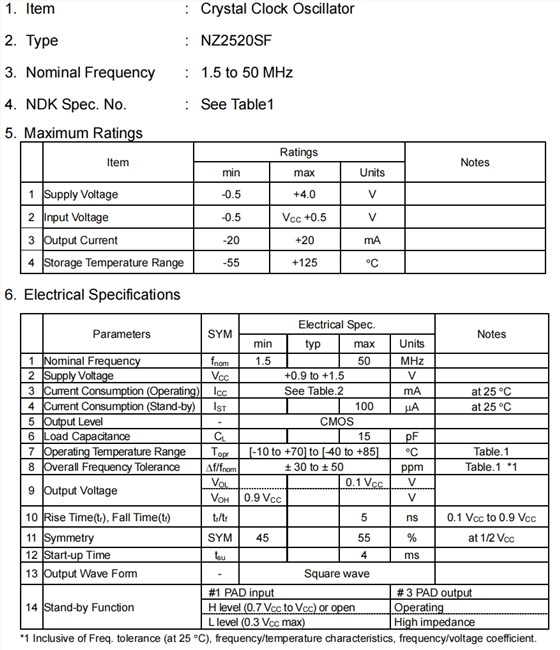

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器參數表

Item Ratings Notes
min max Units
Supply Voltage -0.5 +4.0 V
Input Voltage -0.5 VCC+0.5 V
Output Current -20 +20 mA
Storage Temperature Range -55 +125 。C
Parameters SYM Electrical Spec. Notes
min typ max Units
Nominal Frequency fnom
33
MHz
Supply Voltage VCC +0.9 to +1.5 V
Current Consumption (Operating) ICC See Table.2 mA at 25。C
Current Consumption (Stand-by) IST 100 μA at 25。C
Output Level - CMOS
Load Capacitance CL 15 pF
Operating Temperature Range Topr [- 10 to +70] to [-40 to +85] 。C Table.1
Overall Frequency Tolerance Δf/fnom ± 30 to ± 50 ppm Table.1* 1
Output Voltage VOL 0.1 VCC V
VOH 0.9 VCC V
Rise Time(tr), Fall Time(tf) tr/tf 5 ns 0.1 VCCto 0.9 VCC
Symmetry SYM 45 55 % at 1/2 VCC
Start-up Time tsu 4 ms
Output Wave Form - Square wave
Stand-by Function #1 PAD input # 3 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance
LH-3

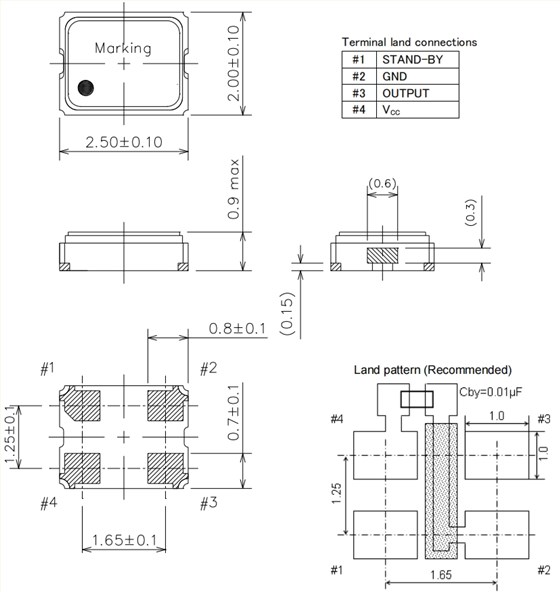

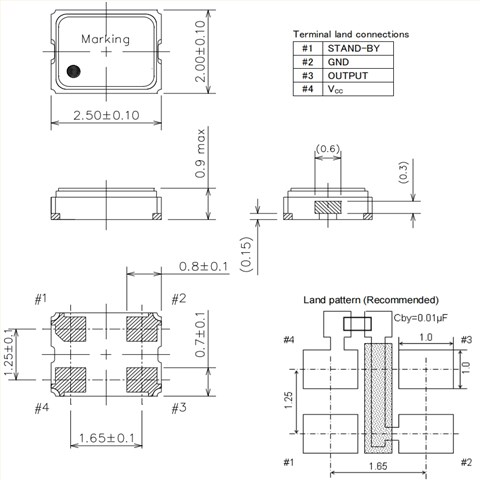

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器 尺寸圖

NZ2520SF

NZ2520SF-33MHZ-NSA3468C,NDK便攜式設備晶振,NZ2520SF時鐘振蕩器

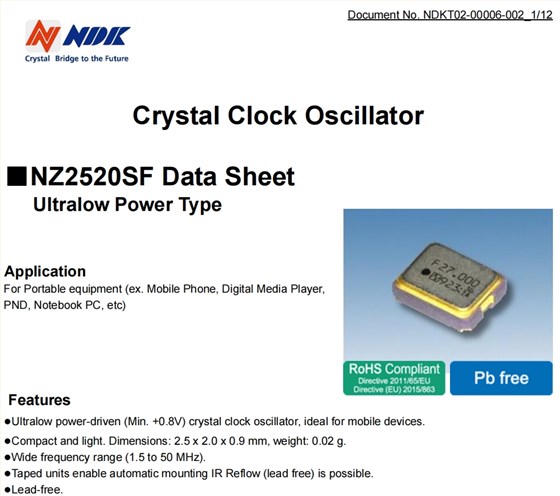

產品特點:

超低功率驅動（最小+0.8V）石英晶體振蕩器，非常適合移動設備。

小巧輕便。尺寸：2.5 x 2.0 x 0.9毫米，重量：0.02克。

寬頻率范圍（1.5至50 MHz）。

磁帶裝置可實現自動安裝IR回流（無鉛）。

NZ2520SF 1

NZ2520SF 2

進口晶振型號 Nominal frequency[MHz] Specification number Manufacturer Package size(LxW)[mm] Output specification Operating temperature rang[℃]
NZ2520SDA 24MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 24.576MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 25MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 27MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 45.1584MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 48MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 49.152MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SDA 50MHZ NSC5083D NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 24MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 24.54MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 25MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 26MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 27MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 33MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 33.33MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 38.4MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 50MHZ NSA3468E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 24MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 24.54MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 25MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 26MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 27MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 33MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 33.33MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 38.4MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 50MHZ NSA3477E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 24MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 24.54MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 25MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 26MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 27MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 33MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 33.33MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 38.4MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 50MHZ NSA3469E NDK晶振 2.5x2.0 CMOS -40~+85
NZ2520SF 24MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 24.54MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 25MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 26MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 27MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 33MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 33.33MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 38.4MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 50MHZ NSA3468C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 24MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 24.54MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 25MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 26MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 27MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 33MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 33.33MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 38.4MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 50MHZ NSA3477C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 24MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 24.54MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 25MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 26MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 27MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 33MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 33.33MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 38.4MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
NZ2520SF 50MHZ NSA3469C NDK晶振 2.5x2.0 CMOS -10~+70
2725T 4.096MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 10MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 12MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 12.5MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 16MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 24MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 25MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 33MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 50MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 66.66MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 74.25MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 100MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 125MHZ NSA6293A NDK晶振 5.0x3.2 CMOS -20~+70
2725T 4.096MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 10MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 12MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 12.5MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 16MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 24MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 25MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 33MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 50MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 66.66MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 74.25MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 100MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 125MHZ NSA6293B NDK晶振 5.0x3.2 CMOS -10~+70
2725T 4.096MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 10MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 12MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 12.5MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 16MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 24MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 25MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 33MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 50MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 66.66MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 74.25MHZ NSA6293F NDK晶振 5.0x3.2 CMOS -40~+105
2725T 4.096MHZ NSA6293D NDK晶振 5.0x3.2 CMOS -40~+85
2725T 10MHZ NSA6293D NDK晶振 5.0x3.2 CMOS -40~+85
2725T 12MHZ NSA6293D NDK晶振 5.0x3.2 CMOS -40~+85
2725T 12.5MHZ NSA6293D NDK晶振 5.0x3.2 CMOS -40~+85
2725T 16MHZ NSA6293D NDK晶振 5.0x3.2 CMOS -40~+85
