NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振，尺寸2.5x2.0mm，頻率32MHZ，輸出邏輯CMOS，日本進口晶振，NDK有源晶振，有源晶體振蕩器，石英有源晶振，有源晶體振蕩器，CMOS輸出晶振，2520mm有源晶振，SPXO有源振蕩器，六腳有源晶振，高精度有源晶振，低抖動有源晶振，低電壓有源晶振，低相位有源晶振，低相噪有源振蕩器，汽車導航有源晶振，汽車音響有源晶振，攝像頭有源晶振，單反相機有源晶振，數碼相機有源晶振，儀器儀表有源晶振，測試設備有源晶振，娛樂設備有源晶振，具有高精度低電壓的特點。
有源石英晶振產品比較常用于汽車導航、汽車音響、攝像頭，還廣泛適用于數碼相機、單反相機，測試設備，儀器儀表等應用。NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振.

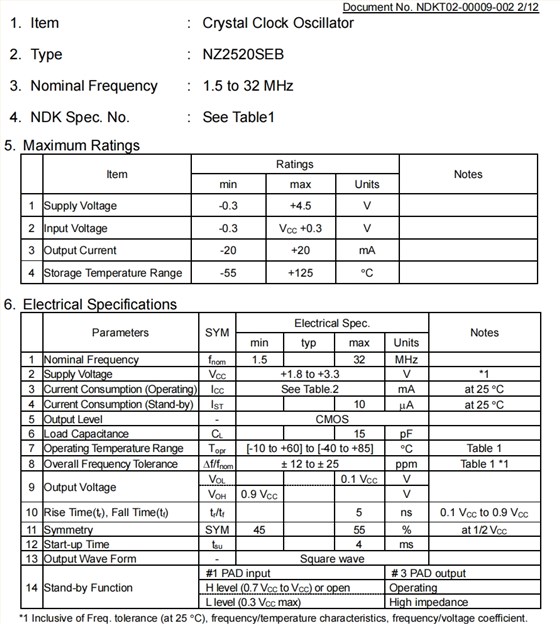

NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振參數表
| Item | Ratings | Notes | ||||||||||||||||||||
| min | max | Units | ||||||||||||||||||||
| Supply Voltage | -0.3 | +4.5 | V | |||||||||||||||||||
| Input Voltage | -0.3 | VCC+0.3 | V | |||||||||||||||||||
| Output Current | -20 | +20 | mA | |||||||||||||||||||
| Storage Temperature Range | -55 | +125 | 。C | |||||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||||
| min | typ | max | Units | |||||||||||||||||||
| Nominal Frequency | fnom |
|
32 |
|
MHz | |||||||||||||||||
| Supply Voltage | VCC | +1.8 to +3.3 | V | *1 | ||||||||||||||||||
| Current Consumption (Operating) | ICC | See Table.2 | mA | at 25。C | ||||||||||||||||||
| Current Consumption (Stand-by) | IST | 10 | μA | at 25。C | ||||||||||||||||||
| Output Level | - | CMOS | ||||||||||||||||||||
| Load Capacitance | CL | 15 | pF | |||||||||||||||||||
| Operating Temperature Range | Topr | [- 10 to +60] to [-40 to +85] | 。C | Table 1 | ||||||||||||||||||
| Overall Frequency Tolerance | Δf/fnom | ± 12 to ± 25 | ppm | Table 1 *1 | ||||||||||||||||||
| Output Voltage | VOL | 0.1 VCC | V | |||||||||||||||||||
| VOH | 0.9 VCC | V | ||||||||||||||||||||
| Rise Time(tr), Fall Time(tf) | tr/tf | 5 | ns | 0.1 VCCto 0.9 VCC | ||||||||||||||||||
| Symmetry | SYM | 45 | 55 | % | at 1/2 VCC | |||||||||||||||||
| Start-up Time | tsu | 4 | ms | |||||||||||||||||||
| Output Wave Form | - | Square wave | ||||||||||||||||||||
| Stand-by Function | #1 PAD input | # 3 PAD output | ||||||||||||||||||||
| H level (0.7 VCCto VCC) or open | Operating | |||||||||||||||||||||
| L level (0.3 VCCmax) | High impedance | |||||||||||||||||||||

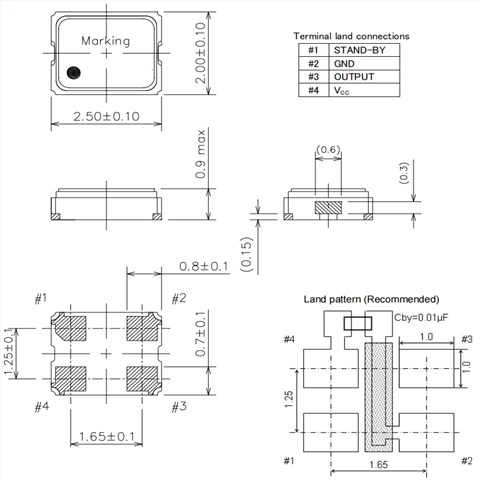

NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振 尺寸圖
NZ2520SEB單反相機晶振,NZ2520SEB-32MHZ-NSC5284B,日本電波SPXO晶振

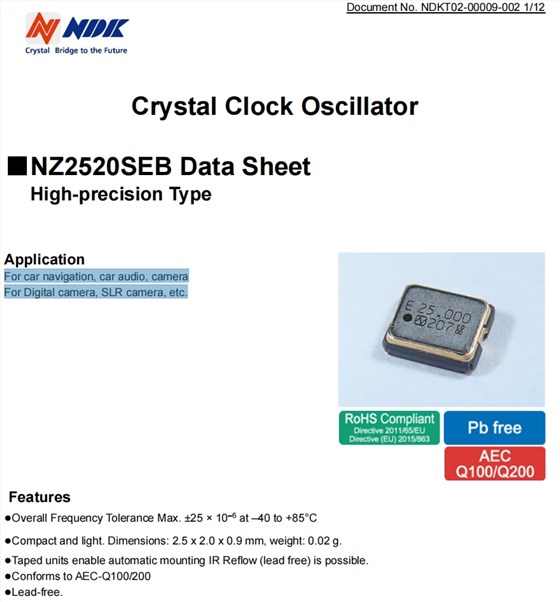

OSC晶振產品特點:
在–40至+85°C時，總體頻率公差最大值為±25×10–6
小巧輕便。尺寸：2.5 x 2.0 x 0.9毫米，重量：0.02克。
磁帶裝置可實現自動安裝IR回流（無鉛）。
符合AEC-Q100/200
無鉛。
| Model | Nominal frequency[MHz] | Specification number | 晶振廠家 | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] |
| NZ2520SEB | 25MHZ | NSC5283D | NDK晶振 | 2.5x2.0 | CMOS | -20~+70 |
| NZ2520SEB | 26MHZ | NSC5283D | NDK晶振 | 2.5x2.0 | CMOS | -20~+70 |
| NZ2520SEB | 32MHZ | NSC5283D | NDK晶振 | 2.5x2.0 | CMOS | -20~+70 |
| NZ2520SEB | 8MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12.288MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 15.625MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 16MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 24MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 25MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 26MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 32MHZ | NSC5284A | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 8MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12.288MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 15.625MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 16MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 24MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 25MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 26MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 32MHZ | NSC5284B | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 8MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12.288MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 15.625MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 16MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 24MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 25MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 26MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 32MHZ | NSC5284C | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 8MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 12.288MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 15.625MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 16MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 24MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 25MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 26MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SEB | 32MHZ | NSC5284D | NDK晶振 | 2.5x2.0 | CMOS | -10~+60 |
| NZ2520SDA | 22.5792MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 24MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 24.576MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 25MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 27MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 45.1584MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 48MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 49.152MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 50MHZ | NSC5083A | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 22.5792MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 24MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 24.576MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 25MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 27MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 45.1584MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 48MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 49.152MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 50MHZ | NSC5083B | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 22.5792MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 24MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 24.576MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 25MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 27MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 45.1584MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 48MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 49.152MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 50MHZ | NSC5083C | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
| NZ2520SDA | 22.5792MHZ | NSC5083D | NDK晶振 | 2.5x2.0 | CMOS | -40~+85 |
