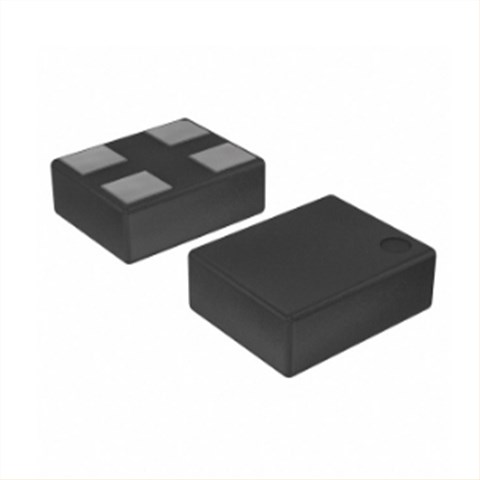

6G物聯網晶振,DSC6102JI2A-100.0000,Microchip有源晶振，尺寸2.5*2.0mm，頻率100MHZ，歐美有源晶振，有源貼片晶振，有源晶體振蕩器，OSC晶振，輕薄型晶振，低抖動振蕩器，2520mm有源晶振，低電壓振蕩器，DSC61xx系列MEMS振蕩器結合了行業領先的低功耗和具有特殊頻率的超小型封裝穩定性和隨溫度的抖動性能。這個單輸出DSC61xx MEMS有源晶體振蕩器非常出色用作小型時鐘參考的選擇，電池供電設備，如可穿戴和物聯網（IoT）設備，其中體積小功耗和長期可靠性至上的它們還滿足嚴格的機械汽車的耐久性和可靠性要求電子委員會標準Q100（AEC-Q100），因此它們也非常適合發動機罩下的應用。
DSC61xx系列有超小型1.6毫米x 1.2毫米和2.0毫米x 1.6毫米包裝。其他包裝尺寸包括：2.5毫米x 2.0毫米和3.2毫米x 2.5毫米。這些包裝是“插入式”標準4針CMOS石英晶體的替代品石英晶體振蕩器。低功耗/便攜式應用：物聯網，嵌入式/智能設備，消費者：家庭醫療保健、健身設備、家庭自動化，汽車：后視/全方位攝像頭，信息娛樂系統，工業：建筑/工廠自動化，監控攝像頭等領域。6G物聯網晶振,DSC6102JI2A-100.0000,Microchip有源晶振.
6G物聯網晶振,DSC6102JI2A-100.0000,Microchip有源晶振參數表
| Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||||||||||||||||
|
Output Transition Time Rise Time/Fall Time |
tRX/tFX | — | 1 | 1.5 | ns |
DSC61x2 High Drive, 20% to 80% CL= 15 pF |
VDD= 1.8V | |||||||||||||||||||
| — | 0.5 | 1.0 | ns | VDD= 2.5V/3.3V | ||||||||||||||||||||||
| tRY/tFY | 1.2 | 2.0 | ns |
DSC61x1 Std Drive, 20% to 80% CL= 10 pF |
VDD= 1.8V | |||||||||||||||||||||
| 1.5 | 2.2 | ns | VDD= 2.5V/3.3V | |||||||||||||||||||||||
| Frequency | f0 | 0.002 | — | 100 | MHz | Output on Pin 1 for < 1 MHz | ||||||||||||||||||||
| Output Duty Cycle | SYM | 45 | — | 55 | % | — | ||||||||||||||||||||
| Period Jitter, RMS | JPER | — | 9.5 | 11 | psRMS |
FOUT= 27 MHz |
VDD= 1.8V | |||||||||||||||||||
| — | 7.5 | 9 | VDD= 2.5V/3.3V | |||||||||||||||||||||||
|
Cycle-to-Cycle Jitter (peak) |
JCy–Cy | — | 50 | 70 | ps |
FOUT= 27 MHz |
VDD= 1.8V | |||||||||||||||||||
| — | 35 | 60 | VDD= 2.5V/3.3V | |||||||||||||||||||||||
| Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||||||||||||||||
| Temperature Ranges | ||||||||||||||||||||||||||
| Junction Operating Temperature | TJ | +150 | °C | |||||||||||||||||||||||
| Ambient Operating Temperature | TA | –40 | +85 | °C | Industrial | |||||||||||||||||||||
| Ambient Operating Temperature | TA | –20 | +70 | °C | Extended Commercial | |||||||||||||||||||||
| Storage Ambient Temperature Range | TA | –55 | +150 | °C | ||||||||||||||||||||||
| Soldering Temperature | TS | — | +260 | — | °C | 40 sec. max. | ||||||||||||||||||||

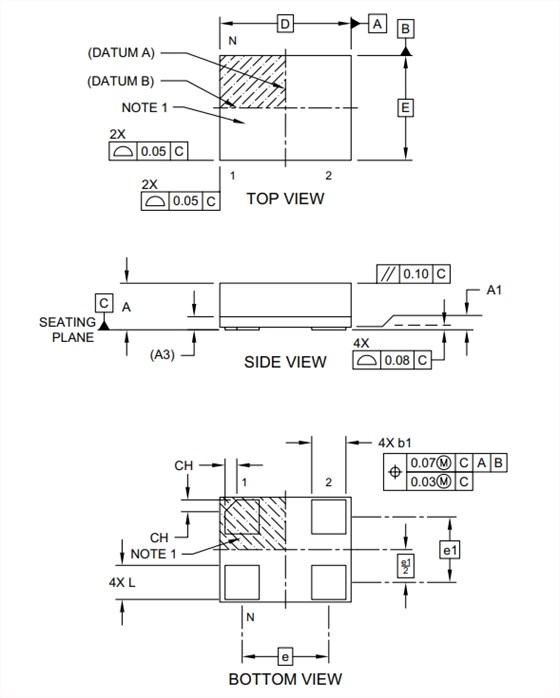

6G物聯網晶振,DSC6102JI2A-100.0000,Microchip有源晶振 尺寸圖

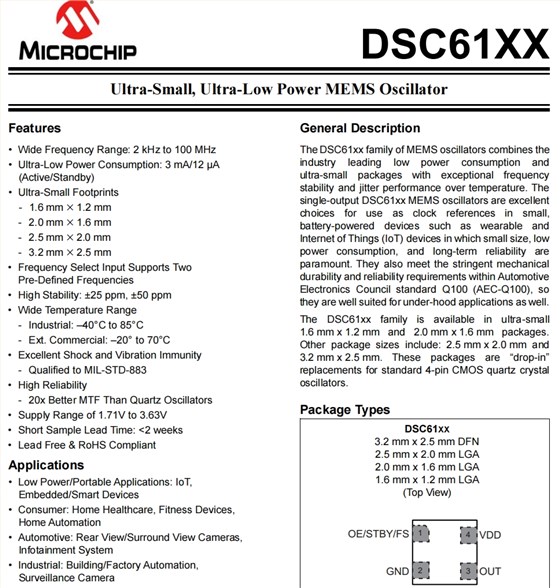

SMD晶振產品特性：
寬頻率范圍：2 kHz至100MHz
超低功耗：3mA/12µA（活動/備用）
超小型腳印
1.6毫米*1.2毫米
2.0毫米*1.6毫米
2.5毫米* 2.0毫米
3.2毫米* 2.5毫米
頻率選擇輸入支持兩個預定義頻率
高穩定性：±25ppm，±50ppm
溫度范圍廣
-工業：-40°C至85°C
-外部商業：-20°至70°C
卓越的沖擊和振動抗擾性
符合MIL-STD-883
高可靠性
-MTF比石英振蕩器好20倍
電源范圍為1.71V至3.63V
樣品交付周期短：<2周
無鉛且符合RoHS
更多相關Microchip晶振型號
| 原廠代碼 | 品牌 | 型號 | 類型 | 頻率 | 電壓 |
| DSC1122CI5-200.0000 | Microchip Technology | DSC1122 | MEMS (Silicon) | 200MHz | 2.25 V ~ 3.6 V |
| DSC1001CI1-048.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-026.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 26MHz | 1.8 V ~ 3.3 V |
| DSC1001AI2-050.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V |
| DSC1001AL2-027.0000 | Microchip Technology | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC6083HE1A-032K800T | Microchip Technology | DSC60XX | MEMS (Silicon) | 32.8kHz | 1.71 V ~ 3.63 V |
| DSC6011HI1A-002.5000T | Microchip Technology | DSC60XX | MEMS (Silicon) | 2.5MHz | 1.71 V ~ 3.63 V |
| DSC6013HI1A-002.5000T | Microchip Technology | DSC60XX | MEMS (Silicon) | 2.5MHz | 1.71 V ~ 3.63 V |
| DSC6083HI2A-002K000T | Microchip Technology | DSC60XX | MEMS (Silicon) | 2kHz | 1.71 V ~ 3.63 V |
| DSC6083CI2A-032K768 | Microchip Technology | DSC60XX | MEMS (Silicon) | 32.768kHz | 1.71 V ~ 3.63 V |
| DSC6001CI2A-016.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 16MHz | 1.71 V ~ 3.63 V |
| DSC6003CI2A-012.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V |
| DSC6003CI2A-024.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V |
| DSC6003CI2A-016.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V |
| DSC6101CI2A-027.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 27MHz | 1.71 V ~ 3.63 V |
| DSC6111CI2A-012.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 12MHz | 1.71 V ~ 3.63 V |
| DSC6102CI2A-100.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 100MHz | 1.71 V ~ 3.63 V |
| DSC6101CI2A-050.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 50MHz | 1.71 V ~ 3.63 V |
| DSC6101CI2A-025.0000 | Microchip Technology | DSC6100 | MEMS (Silicon) | 25MHz | 1.71 V ~ 3.63 V |
| DSC6003JI2A-048.0000 | Microchip Technology | DSC60XX | MEMS (Silicon) | 48MHz | 1.71 V ~ 3.63 V |
| DSC6101JI2A-026.0000 | Microchip振蕩器 | DSC6100 | MEMS (Silicon) | 26MHz | 1.71 V ~ 3.63 V |
| DSC6101JI2A-048.0000 | Microchip振蕩器 | DSC6100 | MEMS (Silicon) | 48MHz | 1.71 V ~ 3.63 V |
| DSC6003JI2A-016.0000 | Microchip振蕩器 | DSC60XX | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V |
| DSC6101JI2A-012.2880 | Microchip晶振 | DSC6100 | MEMS (Silicon) | 12.288MHz | 1.71 V ~ 3.63 V |
| DSC6101JI2A-050.0000 | Microchip振蕩器 | DSC6100 | MEMS (Silicon) | 50MHz | 1.71 V ~ 3.63 V |
| DSC6102JI2A-100.0000 | Microchip振蕩器 | DSC6100 | MEMS (Silicon) | 100MHz | 1.71 V ~ 3.63 V |
| DSC6111JI2A-024.0000 | Microchip振蕩器 | DSC6100 | MEMS (Silicon) | 24MHz | 1.71 V ~ 3.63 V |
| DSC6101JI2A-012.0000 | Microchip振蕩器 | DSC6100 | MEMS (Silicon) | 12MHz | 1.71 V ~ 3.63 V |
| DSC6101JI2A-027.0000 | Microchip振蕩器 | DSC6100 | MEMS (Silicon) | 27MHz | 1.71 V ~ 3.63 V |
| DSC1121CI2-050.0000 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 50MHz | 2.25 V ~ 3.6 V |
| DSC1121CI2-025.0000 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V |
| DSC1121BI2-025.0007 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 25.0007MHz | 2.25 V ~ 3.6 V |
| DSC1121AE2-025.0000 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V |
| DSC1101CI1-025.0000 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 25MHz | 2.25 V ~ 3.6 V |
| DSC1001CC1-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V |
| DSC1101DL1-027.0000 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 27MHz | 2.25 V ~ 3.6 V |
| DSC1001CE1-066.6666 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 66.6666MHz | 1.8 V ~ 3.3 V |
| DSC1001CE1-019.2000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 19.2MHz | 1.8 V ~ 3.3 V |
| DSC1033CE2-022.5792 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 22.5792MHz | 3.3V |
| DSC1001DI1-004.9152 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 4.9152MHz | 1.8 V ~ 3.3 V |
| DSC1033AE1-024.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V |
| DSC1001AC1-027.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC1033CE2-074.2500 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 74.25MHz | 3.3V |
| DSC1033BE1-050.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V |
| DSC1001AC1-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.7 V ~ 3.6 V |
| DSC1033DI1-048.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 48MHz | 3.3V |
| DSC1001DI1-012.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V |
| DSC1001DI1-048.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V |
| DSC1033DI1-064.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 64MHz | 3.3V |
| DSC1033DI1-025.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 25MHz | 3.3V |
| DSC1033CI1-008.1920 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 8.192MHz | 3.3V |
| DSC1033DI1-050.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V |
| DSC1033DI1-024.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 24MHz | 3.3V |
| DSC1033DI1-016.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 16MHz | 3.3V |
| DSC1001DI1-020.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-025.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.8 V ~ 3.3 V |
| DSC1033BI2-027.1200 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 27.12MHz | 3.3V |
| DSC1001DI1-032.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 32MHz | 1.8 V ~ 3.3 V |
| DSC1033DI1-029.4912 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 29.4912MHz | 3.3V |
| DSC1001AE1-027.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-014.3182 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.3182MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-024.5761 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.5761MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-054.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-003.6864 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.8 V ~ 3.3 V |
| DSC1001BE2-010.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V |
| DSC1001AE1-055.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 55MHz | 1.8 V ~ 3.3 V |
| DSC1033CI1-001.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 1MHz | 3.3V |
| DSC1004AI2-001.0000 | Microchip振蕩器 | DSC1004 | MEMS (Silicon) | 1MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-003.6864 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 3.6864MHz | 1.7 V ~ 3.6 V |
| DSC1001DI1-038.4000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 38.4MHz | 1.7 V ~ 3.6 V |
| DSC1001AI2-064.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 64MHz | 1.8 V ~ 3.3 V |
| DSC1001BI1-048.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 48MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-001.9521 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 1.9521MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-010.4857 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10.4857MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-008.1920 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8.192MHz | 1.8 V ~ 3.3 V |
| DSC1001AI1-033.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33MHz | 1.8 V ~ 3.3 V |
