美國FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm,進口無源諧振器,石英貼片晶振,50MHZ貼片晶振,5032mm石英晶振,無源晶振,輕薄型晶振,SMD無源晶體,尺寸5.0x3.2mm,頻率50MHZ,負載20pF,工作溫度-40~+85°C,綠色環保晶振,低損耗晶振,低功耗晶振,高品質晶振,高性能晶振,移動通信晶振,娛樂設備晶振,數碼電子晶振,小型設備晶振.
美國FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm特點:
表面貼裝陶瓷SMD晶體組件。
Micro 5x3.2/超薄
高可靠性
緊密穩定性

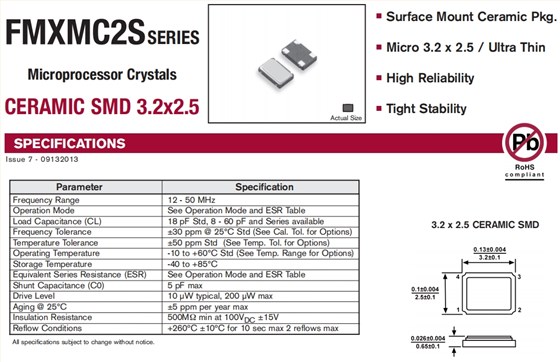

美國FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm 參數表
| Parameter | Specification | ||||||||||||||
| Frequency Range | 50.00 MHz | ||||||||||||||

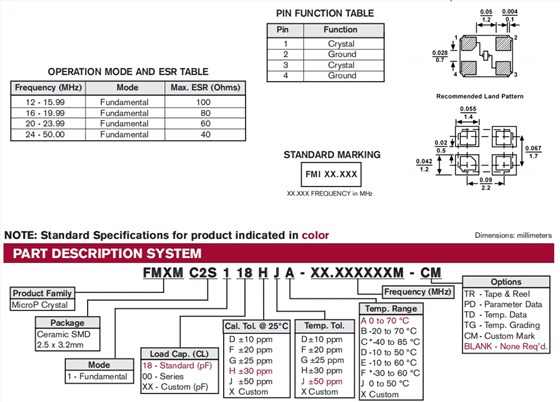

| Operation Mode | See Operation Mode and ESR Table | ||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 6 - 60 pF and Series available | ||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | ||||||||||||||
| Temperature Tolerance | ±50 ppm Std.(See Temp. Tol. for Options) | ||||||||||||||
| Operating Temperature | 0 to +70°C Std.(See Temp. Range for Options) | ||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||
| Shunt Capacitance (C0) | 7 pF max. | ||||||||||||||
| Drive Level | 10 µWtypical, 300 µW max | ||||||||||||||
| Aging @ 25°C | ±5 ppm per year max. | ||||||||||||||
| Insulation Resistance | 500MΩ min. at 100VDC±15V | ||||||||||||||
| Reflow Conditions | 260°C ±10°C for 10sec max., 2 reflows max. |

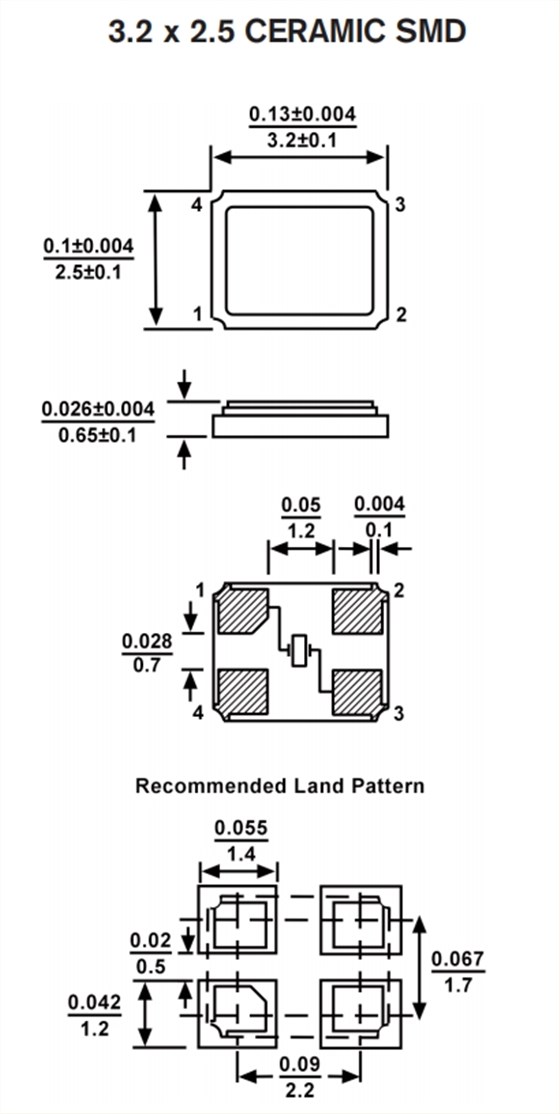

美國FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm 尺寸圖
