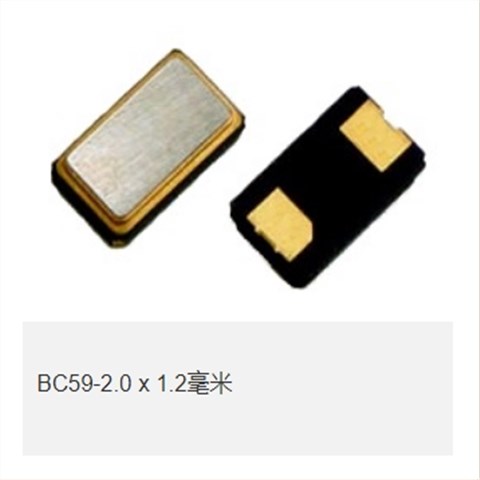

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振，尺寸2.0x1.2mm，頻率32.768KHZ，兩腳貼片晶振，陶瓷SMD晶體，無源貼片晶振，貼片陶瓷晶振，2012mm音叉晶體，歐美無源晶振，32.768KHZ無源晶振，輕薄型晶振，兩腳貼片晶振，32.768KHZ陶瓷諧振器，超小型SMD晶體，無源晶振，移動通信晶振，實時實時晶振，娛樂設備晶振，小型設備晶振，低損耗晶振，低功耗晶振，低成本晶振，高質量晶振，高性能晶振，具有高質量高性能的特點。
BC59系列是一種超小型陶瓷SMD晶體，高度為0.6毫米。非常適合最小的電路空間可能的應用包括移動通信、芯片卡、實時時鐘和無線通信。BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振.

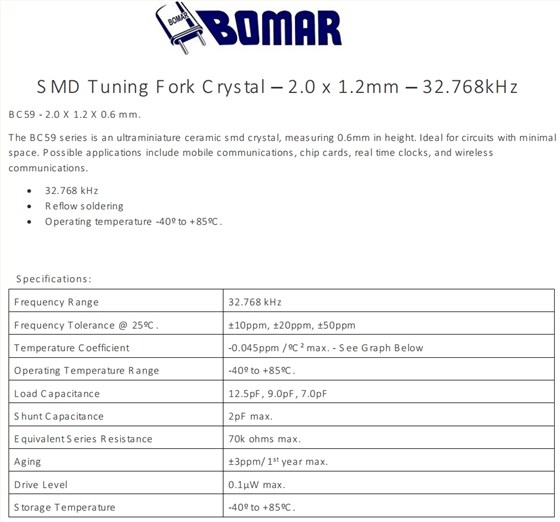

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振 參數表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±10ppm, ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.045ppm / ºC² max. - See Graph Below | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF, 7.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 70k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 0.1µW max. | |||||||||
| Storage Temperature | -40º to +85ºC. | |||||||||

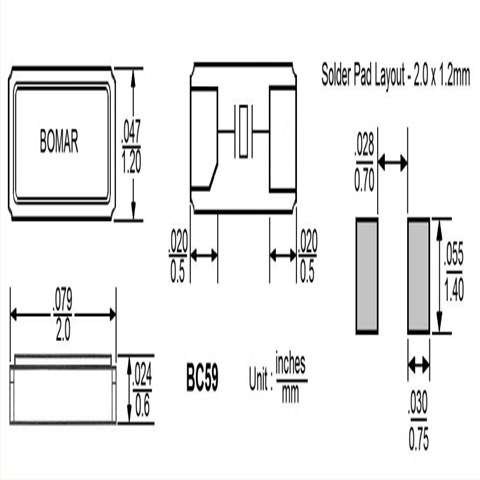

BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振 尺寸圖
BC59,2012mm,BC59CCD112.5-32.768K,Bomar32.768K時鐘晶振
進口音叉晶振產品特點:
尺寸2.0x1.2mm
32.768千赫
回流焊接
工作溫度-40º至+85ºC
