AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物聯網晶振,3225mm特點:

SMD SPXO有源振蕩器，帶HCMOS輸出，3.2x2.5 mm封裝

寬工作溫度范圍-55°C至+125°C

低損耗低電壓

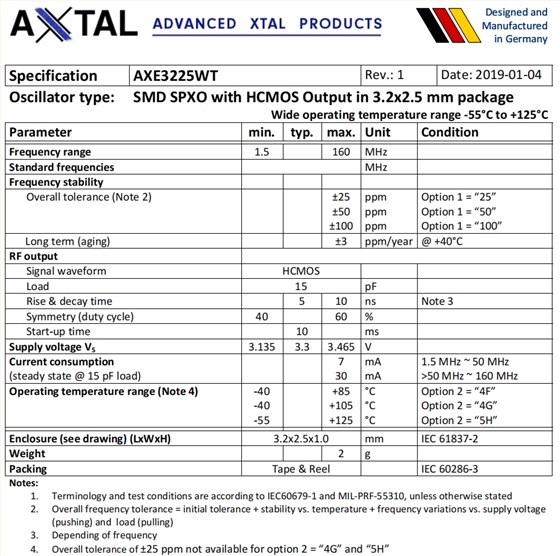

AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物聯網晶振,3225mm 參數表

Parameter

min.

typ.

max.

Unit

Condition

Frequency range

75

MHz

Standard frequencies

MHz

Frequency stability

Overall tolerance (Note 2)

±25 ±50 ±100

ppm ppm ppm

Option 1 = “25” Option 1 = “50” Option 1 = “100”

Long term (aging)

±3

ppm/year

@ +40°C

RF output

Signal waveform

HCMOS

Load

15

pF

Rise & decay time

5

10

ns

Note 3

Symmetry (duty cycle)

40

60

%

Start-up time

10

ms

Supply voltage VS

3.135

3.3

3.465

V

Current consumption (steady state @ 15 pF load)

7 30

mA mA

1.5 MHz ~ 50 MHz >50 MHz ~ 160 MHz

Operating temperature range (Note 4)

-40 -40 -55

+85 +105 +125

°C °C °C

Option 2 = “4F” Option 2 = “4G” Option 2 = “5H”

Enclosure (see drawing) (LxWxH)

3.2x2.5x1.0

mm

IEC 61837-2

Weight

2

g

Packing

Tape & Reel

IEC 60286-3

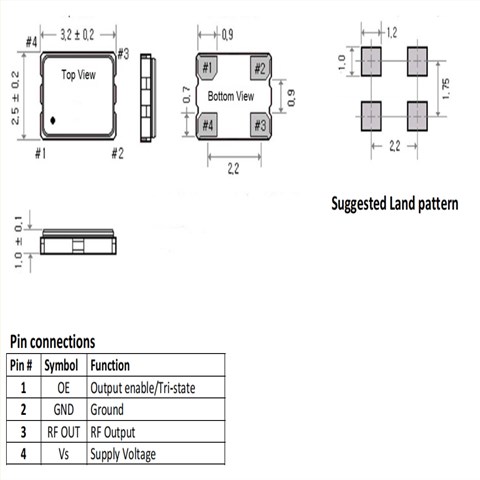

AXE3225WT,AXE3225WT‐50‐4G-75.000MHz,AXTAL物聯網晶振,3225mm 尺寸圖
