LH-1

5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振，尺寸5.0x3.2mm，頻率范圍10~40MHZ，MTI-milliren溫補振蕩器，加拿大進口振蕩器，四腳有源晶振，有源溫補振蕩器，溫補晶體振蕩器，5032mm微型振蕩器，環保有源振蕩器，石英溫補振蕩器，貼片溫補晶振，低電壓有源晶振，低功耗有源晶振，低耗能有源晶振，低抖動有源晶振，低相位有源晶振，低相噪有源晶振，高品質有源晶振，全球定位系統有源晶振，AOA定位有源晶振，光通信模塊有源晶振，移動設備有源晶振，空中雷達有源晶振，具有低抖動低電壓的特點。

TCXO晶振產品超級適合用于全球定位系統，AOA定位，光通信模塊，移動設備，空中雷達等應用。5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振.

LH-2

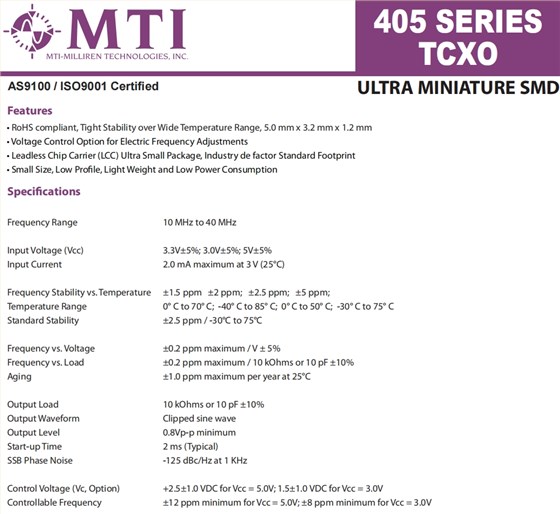

5032超微型SMD振蕩器,405系列溫補晶振,米利倫有源晶振參數表

Frequency Range			10 MHz to 40 MHz
Input Voltage (Vcc)			3.3V±5%; 3.0V±5%; 5V±5% 2.0 mA maximum at 3 V (25°C)
Input Current
Frequency Stability vs. Temperature			±1.5 ppm±2 ppm;±2.5 ppm;±5 ppm;
Temperature Range			0° C to 70° C;-40° C to 85° C;0° C to 50° C;-30° C to 75° C ±2.5 ppm / -30°C to 75°C
Standard Stability
Frequency vs. Voltage			±0.2 ppm maximum / V ± 5%
Frequency vs. Load			±0.2 ppm maximum / 10 kOhms or 10 pF ±10% ±1.0 ppm maximum per year at 25°C
Aging
Output Load			10 kOhms or 10 pF ±10% Clipped sine wave 0.8Vp-p minimum 2 ms (Typical)
Output Waveform
Output Level
Start-up Time
SSB Phase Noise			-125 dBc/Hz at 1 KHz
Control Voltage (Vc, Option)			+2.5±1.0 VDC for Vcc = 5.0V; 1.5±1.0 VDC for Vcc = 3.0V
Controllable Frequency			±12 ppm minimum for Vcc = 5.0V; ±8 ppm minimum for Vcc = 3.0V
