6G移動通信晶振/XTL74時鐘晶振/XTL741-S999-298/希華音叉諧振器，尺寸2.0x1.2mm，頻率32.768KHZ，臺灣Siward晶振，希華無源晶體，臺灣音叉晶振，32.768KHZ時鐘晶振，音叉晶體，SMD無源晶體，32.768KHZ貼片晶振，2012mm無源晶振，無鉛環保晶振，兩腳貼片晶振，時鐘應用晶振，藍牙晶振，智能計量晶振，游戲機晶振，數碼相機晶振，電話機晶振，6G移動通信晶振，高性能晶振，低損耗晶振，低成本，具有小體積高性能的特點.
32.768K音叉晶體產品主要應用于藍牙應用，智能計量產品，還可以廣泛用于數碼相機，移動通信，數碼相機，游戲機等領域。6G移動通信晶振/XTL74時鐘晶振/XTL741-S999-298/希華音叉諧振器.

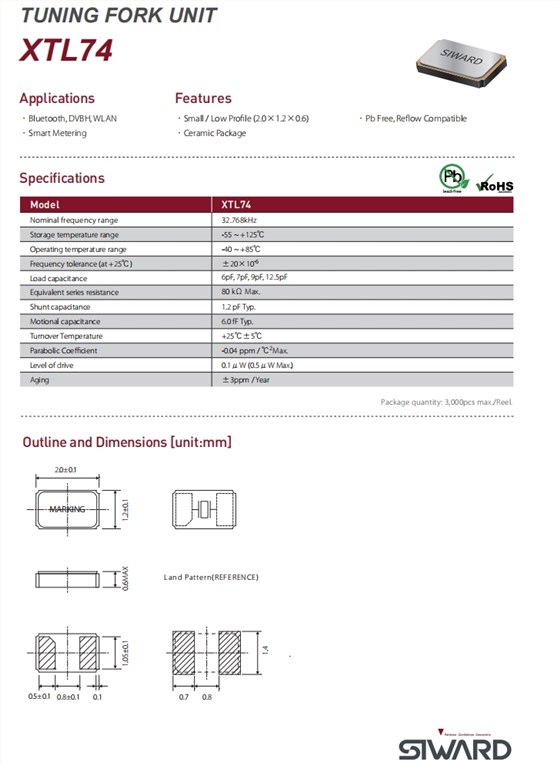

6G移動通信晶振/XTL74時鐘晶振/XTL741-S999-298/希華音叉諧振器 參數表
| Model | XTL74 | |||||||
| Nominal frequency range | 32.768kHz | |||||||
| Storage temperature range | -55 ~ +125℃ | |||||||
| Operating temperature range | -40 ~ +85℃ | |||||||
| Frequency tolerance (at +25℃) | ±20×10-6 | |||||||
| Load capacitance | 6pF, 7pF, 9pF, 12.5pF | |||||||
| Equivalent series resistance | 80 kΩMax. | |||||||
| Shunt capacitance | 1.2 pF Typ. | |||||||
| Motional capacitance | 6.0 fF Typ. | |||||||
| Turnover Temperature | +25℃±5℃ | |||||||
| Parabolic Coecient | -0.04 ppm /℃2Max. | |||||||
| Level of drive | 0.1μW (0.5μW Max.) | |||||||
| Aging | ±3ppm / Year | |||||||

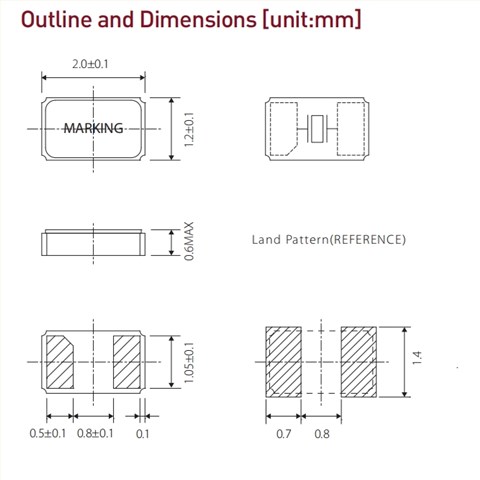

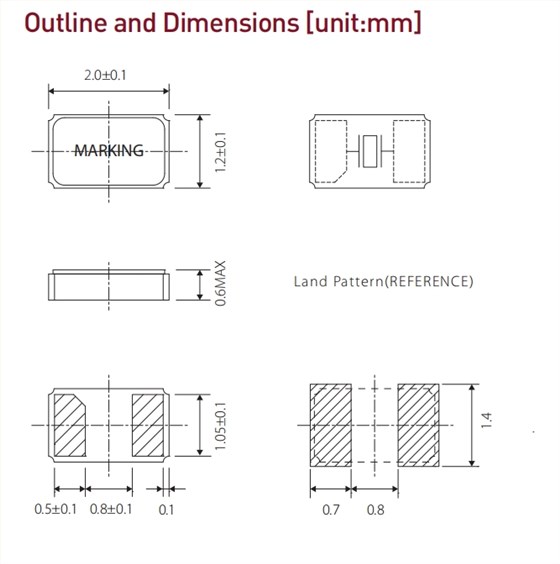

6G移動通信晶振/XTL74時鐘晶振/XTL741-S999-298/希華音叉諧振器尺寸圖
產品特性：
超小體積
低成本
頻率:32.768KHZ
極好的老化
更多相關Siward希華晶振型號
| Mfr Part # | Mfr | Supplier | Description | Series | Frequency | Frequency Tolerance | Load Capacitance |
| XTL721-Q23-048 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 6pF |
| XTL721-S349-005 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 7pF |
| XTL721-S999-301 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 9pF |
| XTL721-S999-429 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 6pF |
| XTL741-S999-319 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 9pF |
| XTL741-U11-402 | Siward | SIWARD晶振 | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 7pF |
| XTL741-S999-298 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 12.5pF |
| XTL741-S999-379 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 7pF |
| XTL741-S999-327 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 4pF |
| XTL721-S999-286 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 12.5pF |
| XTL751-S999-544 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL75 | 32.768 kHz | ±20ppm | 12.5pF |
| XTL751-S999-548 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL75 | 32.768 kHz | ±20ppm | 9pF |
| XTL751-S999-420 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL75 | 32.768 kHz | ±20ppm | 7pF |
