CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，美國進口晶振，Cardinal卡迪納爾晶振，型號：CPFB，編碼為：CPFBZ-A2C4-32.768KD12.5，頻率為：32.768KHz，工作溫度范圍：-40℃至+85℃，負載：12.5pF，小體積晶振尺寸：8.7x3.7x2.4mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶振，SMD晶振，音叉晶體，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，高質量，耐熱及耐環境等特點。被廣泛應用于：通訊設備晶振，無線藍牙模塊，RTC應用，時鐘晶振，汽車電子晶振，儀器儀表設備，數字顯示等應用。
CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，產品特點：
•封裝是自動化表面安裝組裝和回流實踐的理想選擇
•超小型，石英晶體諧振器
•行業標準足跡
•頻率：32.768 kHz

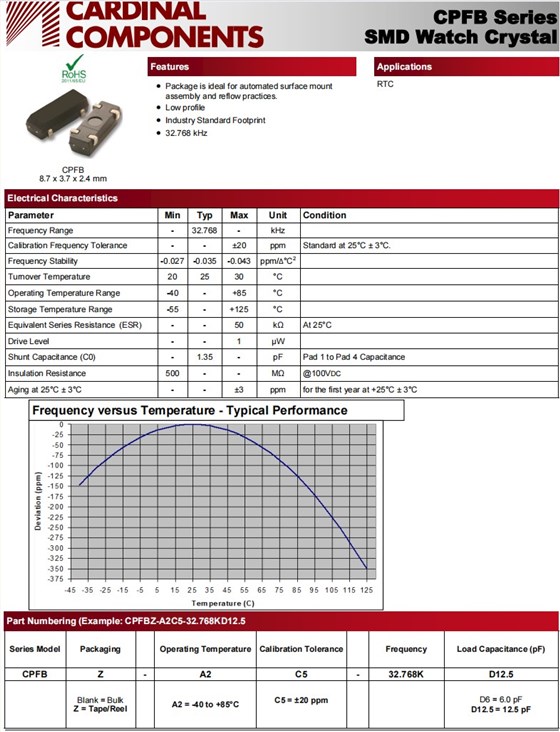

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,參數表
Parameter
Min
Typ
Max
Unit
Condition
Frequency Range
-
32.768
-
kHz
Calibration Frequency Tolerance
-
-
±20
ppm
Standard at 25°C ± 3°C.
Frequency Stability
-0.027
-0.035
-0.043
ppm/△°C2
Turnover Temperature
20
25
30
°C
Operating Temperature Range
-40
-
+85
°C
Storage Temperature Range
-55
-
+125
°C
Equivalent Series Resistance(ESR)
-
-
50
kΩ
At 25°C
Drive Level
-
-
1
µW
Shunt Capacitance (C0)
-
1.35
-
pF
Pad 1 to Pad 4 Capacitance
Insulation Resistance
500
-
-
MΩ
@100VDC
Aging at 25°C ± 3°C
-
-
±3
ppm
for the first year at +25°C ± 3°C

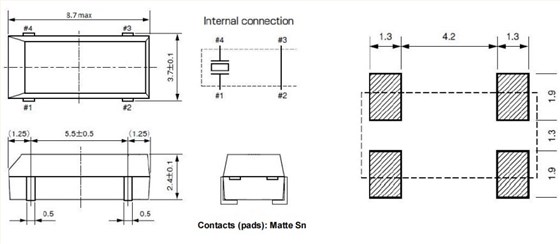

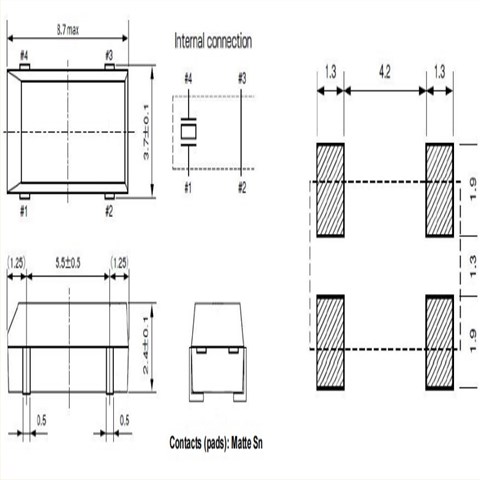

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,尺寸圖
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 |
| CPFBZ-A2C4-32.768KD6 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CPFBZ-A2C5-32.768KD6 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CTF6-A2C5-32.768KD12.5 | Cardinal晶振 | CTF6 | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-A5B2C5-70-7.37280D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz |
| CPFBZ-A2C4-32.768KD12.5 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz |
| CX325Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CX325 | MHz Crystal | 20MHz |
| CX635A-A5B2C3-40-18.432D13 | Cardinal晶振 | CX635A | MHz Crystal | 18.432MHz |
| CPFBZ-A2C5-32.768KD12.5 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 27MHz |
| CX5Z-A5B2C5-40-24.0D18 | 卡迪納爾晶振 | CX5 | MHz Crystal | 24MHz |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CX5 | MHz Crystal | 24.576MHz |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 24MHz |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz |
| CPFBZ-A2C5-32.768D6 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz |
| CX635BZ-A1B2C3-80-14.31818D20 | Cardinal晶振 | CX635B | MHz Crystal | 14.31818MHz |
| C49X-A3B1C1-40-8.0D16 | Cardinal晶振 | C49 | MHz Crystal | 8MHz |
