276系列晶體,奧斯康利小體積晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm,水晶振動子,SMD晶體,歐美石英晶振,Oscilent貼片晶振,33MHZ石英晶振,5032mm諧振器,貼片石英晶振,無源晶振,四腳貼片晶振,尺寸5.0x3.2mm,頻率33MHZ,工作溫度-40~+85℃,高可靠晶振,環保晶振,高性能晶振,高精度晶振,低功耗晶振,智能音響晶振,無線應用晶振,小家電晶振,便攜式設備晶振.
276系列晶體,奧斯康利小體積晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm特點:
1.0mm最大低剖面
石英晶體穩定性強/可靠性高
寬頻率范圍
磁帶和卷軸
RoHs/無鉛合規

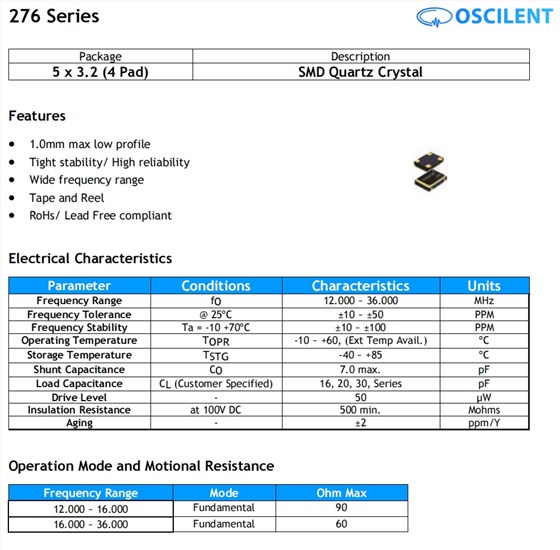

276系列晶體,奧斯康利小體積晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm 參數表
| Parameter | Conditions | Characteristics | Units | |||||||
| Frequency Range | fO | 33.000 | MHz | |||||||
| Frequency Tolerance | @ 25ºC | ±10 ~ ±50 | PPM | |||||||
| Frequency Stability | Ta = -10 +70ºC | ±10 ~ ±100 | PPM | |||||||
| Operating Temperature | TOPR | -10 ~ +60, (Ext Temp Avail.) | ºC | |||||||
| Storage Temperature | TSTG | -40 ~ +85 | ºC | |||||||
| Shunt Capacitance | CO | 7.0 max. | pF | |||||||
| Load Capacitance | CL (Customer Specified) | 16, 20, 30, Series | pF | |||||||
| Drive Level | - | 50 | µW | |||||||
| Insulation Resistance | at 100V DC | 500 min. | Mohms | |||||||
| Aging | - | ±2 | ppm/Y | |||||||

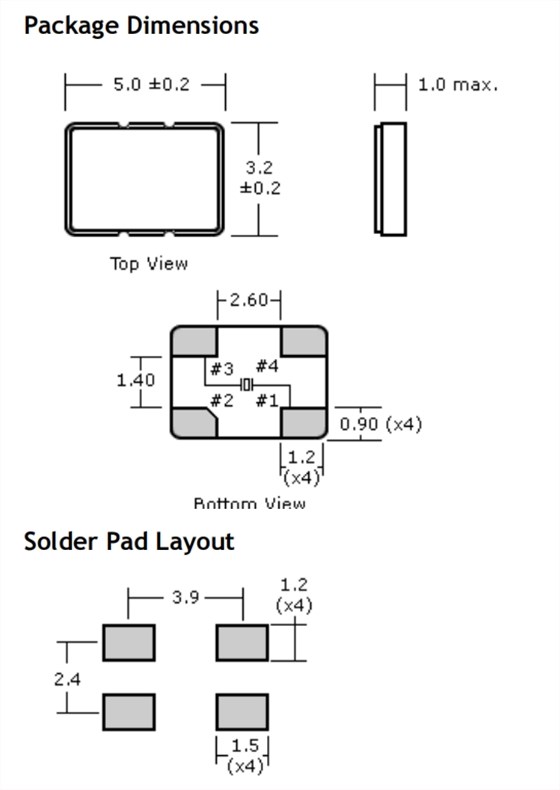

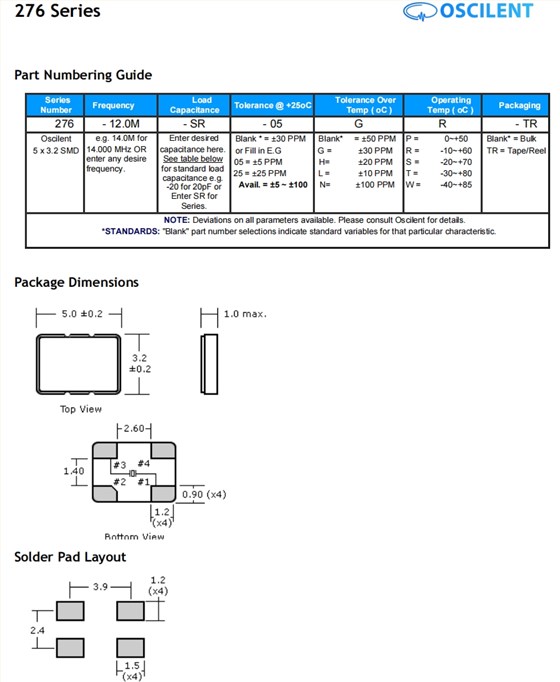

276系列晶體,奧斯康利小體積晶振,276-33.0M-SR-20GW-TR,33MHZ,5032mm 尺寸圖
