專用于AV視聽設備的緊湊型SMD晶體NX3225GA-30.000M-STD-CRG-1，NDK是一家小有名氣的日本進口晶振品牌供應商，憑著自身的聰明才智與果敢，解決在行業所遇到的問題，經過長期的升級打怪過程，如今的NDK公司已然積累足夠深厚且豐富的專業知識，在制作優良晶振產品上面更是有著專屬于其定制的體系化，并遵守高要求嚴格化的生產體系，使得制作出來產品符合用戶的需求，并以高于用戶滿意度為最大的標準。

專用于AV視聽設備的緊湊型SMD晶體NX3225GA-30.000M-STD-CRG-1，隨著行業的發展需求，NDK公司快速滿足不同應用領域的需求，而旗下所制作的晶體單元是一種利用晶體壓電效應的無源元件。施加電壓后，晶體發生相變，并以振動的固有諧振頻率振蕩為高穩定頻率。由高品質合成石英晶體制成的NDK器件被許多需要高穩定性的汽車領域所采用。

原廠編碼	廠家	型號	系列	頻率	頻率穩定度
NX3225GA-19.2M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	19.2MHz	±30ppm
NX3225GA-16.9344M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	16.9344MHz	±30ppm
NX3225GA-10.000M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	10MHz	±30ppm
NX5032GA-10.000M-STD-CSK-3	NDK晶振	NX5032GA	MHz Crystal	10MHz	±30ppm
NX5032GA-30.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	30MHz	±50ppm
NX5032GA-40.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	40MHz	±50ppm
NX3225GA-12MHZ- STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	12MHz	±30ppm
NX5032GA-12MHZ-STD-CSK-8	NDK石英晶振	NX5032GA	MHz Crystal	12MHz	±50ppm
NX3225SA-27.12M-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	27.12MHz	±15ppm
NX3225GA-12.000M-STD-CRA-1	NDK晶振	NX3225GA	MHz Crystal	12MHz	±150ppm
NX3225GD-10.000M-STD-CRA-3	NDK晶振	NX3225GD	MHz Crystal	10MHz	±150ppm
NX2016SA-26MHZ-EXS00A-CS06025	NDK晶振	NX2016SA	MHz Crystal	26MHz	±20ppm
NX5032GA-16.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	16MHz	±150ppm
NX5032GA-8.000M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	8MHz	±150ppm
NX8045GB-13.560000MHZ	NDK晶振	NX8045GB	MHz Crystal	13.56MHz	±50ppm
NX5032GB-12MHZ-STD-CSK-5	NDK晶振	NX5032GB	MHz Crystal	12MHz	±30ppm
NX5032SD-13.56MHZ-STD-CSY-1	NDK晶振	NX3225SC	MHz Crystal	13.56MHz	±50ppm
NX2016AB-26MHZ SB1	NDK晶振	NX2016AB	MHz Crystal	26MHz	±15ppm
NX3225GA-12.288M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	12.288MHz	±30ppm
NX3225GA-13.56M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	13.56MHz	±30ppm
NX3225GA-14.7456M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	14.7456MHz	±30ppm
NX3225GA-27.12M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	27.12MHz	±30ppm
NX3225GA-25.000M-STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	25MHz	±30ppm
NX3225GA-25.000M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	25MHz	±30ppm
NX8045GB-14.318180MHZ	NDK晶振	NX8045GB	MHz Crystal	14.31818MHz	±50ppm
NX8045GB-7.3728MHZ-STD-CSF-3	NDK晶振	NX8045GB	MHz Crystal	7.3728MHz	±30ppm
NX8045GB-6MHZ-STD-CSF-3	NDK晶振	NX8045GB	MHz Crystal	6MHz	±30ppm
NX3225GA-16.000M-STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	16MHz	±30ppm
NX3225GA-12MHZ- STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	12MHz	±30ppm
NX3225SA-12.000M-STD-CRS-2	NDK晶振	NX3225SA	MHz Crystal	12MHz	±50ppm
NX3225SA-12.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	MHz Crystal	12MHz	±15ppm
NX3225GB-16M-STD-CRA-2	NDK晶振	NX3225GB	MHz Crystal	16MHz	±150ppm
NX3225SA-13.56M-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	13.56MHz	±15ppm
NX3225SA-40M-EXS00A-CS03880	NDK晶振	NX3225SA	MHz Crystal	40MHz	±17ppm
NX3225SA-25.000M-STD-CSR-6	NDK晶振	NX3225SA	MHz Crystal	25MHz	±25ppm
NX2016SA-24.9231M-CHP-CZS-9	NDK晶振	NX2016SA	MHz Crystal	24.9231MHz	±25ppm
NX3225SA-12MHZ-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	12MHz	±15ppm
NX1612SA-32.000MHZ-CHP-CIS-3	NDK晶振	NX1612SA	MHz Crystal	32MHz	±20ppm
NX2520SA-16MHZ-STD-CSW-5	NDK晶振	NX2520SA	MHz Crystal	16MHz	±25ppm
NX1612AA-26MHZ-TI2	NDK晶振	NX1612AA	MHz Crystal	26MHz	±20ppm
NX1612AA-26MHZ STD-CSI-1	NDK晶振	NX1612AA	MHz Crystal	26MHz	±20ppm
NX2520SA-16.000000MHZ-W1	NDK晶振	NX2520SA	MHz Crystal	16MHz	±20ppm
NX8045GB-8.000M-STD-CSJ-1	NDK晶振	NX8045GB	MHz Crystal	8MHz	±150ppm
NX3225GA-14.31818M-STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	14.31818MHz	±30ppm
NX3225GA-10.000M-STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	10MHz	±30ppm
NX3225GA-30.000M-STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	30MHz	±30ppm
NX3225GA-30.000M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	30MHz	±30ppm
NX8045GB-32.000000MHZ	NDK晶振	NX8045GB	MHz Crystal	32MHz	±50ppm
NX5032GA-13.560000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	13.56MHz	±50ppm
NX8045GB-16.000M-STD-CSJ-1	NDK晶振	NX8045GB	MHz Crystal	16MHz	-
NX5032GA-11.0592M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	11.0592MHz	±30ppm
NX5032GA-30.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	30MHz	±30ppm
NX3225SA-24.000M-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	24MHz	±15ppm
NX5032GA-24.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	24MHz	±30ppm
NX3225SA-22.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	MHz Crystal	22MHz	±15ppm
NX3225SA-25.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	MHz Crystal	25MHz	±15ppm
NX3225SA-12.288M-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	12.288MHz	±15ppm
NX3225SA-13M-STD-CSR-6	NDK晶振	NX3225SA	MHz Crystal	13MHz	±25ppm
NX3225SA-12.288M-STD-CRS-2	NDK晶振	NX3225SA	MHz Crystal	12.288MHz	±50ppm
NX8045GB-40.000M-STD-CSJ-1	NDK晶振	NX8045GB	MHz Crystal	40MHz	±50ppm
NX8045GB-20.000M-STD-CSF-4	NDK晶振	NX8045GB	MHz Crystal	20MHz	±30ppm

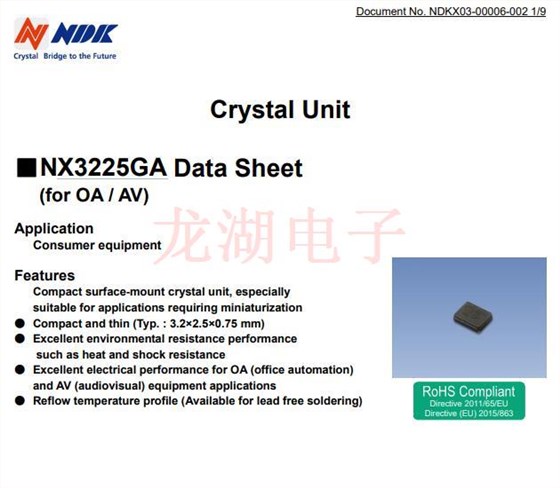

NDK公司發布編碼NX3225GA-30.000M-STD-CRG-1，型號NX3225GA，頻率為30MHZ，SMD晶體，無源晶振，緊湊的表面貼裝型晶體單元，特別適用于需要小型化的應用，緊湊和薄。(Typ: 3.2×2.5×0.75mm)，耐熱、耐沖擊等優異的耐環境性能，卓越的電氣性能，適用于OA(辦公自動化)和AV(視聽)相關設備應用，回流溫度曲線(可用于無鉛焊接).主要應用于消費設備。
