瑞薩HCSL輸出石英晶振,XFN236156.250000I,通信設備晶振，進口晶振，Renesas瑞薩電子晶振，XF系列晶振，編碼為：XFN236156.250000I，頻率為：156.250MHz，小體積晶振尺寸：2.5x2.0mm封裝，HCSL輸出差分貼片晶振，電壓3.3V，8腳貼片晶振，SMD晶振，石英晶振，有源晶振，石英晶體振蕩器。XF系列設備具超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電壓，低耗能，高精度，高性能，高品質等特點。被廣泛應用于：通訊設備，無線網絡，藍牙模塊，物聯網，機頂盒、光端機、安防設備、路由器，交換機、儀器儀表設備、光纖通信，安防設備，10G以太網等應用。
XF器件是超低相位噪聲石英基PLL石英晶體振蕩器，支持大范圍的頻率和輸出接口類型。這些設備被設計為操作在三種不同的電源與幾種針形配置，以及兩個操作溫度范圍。XF設備可以被編程以產生從15MHz到2100MHz的輸出頻率，其分辨率可低至1Hz的精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。零件在工廠為固定頻率應用進行一次性編程（OTP），或可根據系統需要使用I2C進行現場編程（參見引腳描述下的說明）。
瑞薩HCSL輸出石英晶振,XFN236156.250000I,通信設備晶振,參數表
Parameter
TestCondition
Minimum
Typical
Maximum
Units
OutputFrequencyRange
LVDS,LVPECL,CML.
156.250
MHz
HCSL.
15
—
725
FrequencyStability
Temperature=-40°Cto+85°C.
—
—
±25
ppm
Temperature=-40°Cto+105°C.
—
—
±50
ppm
FrequencyTolerance(25°C)
Temperature=25°C.
—
—
±15
ppm
Aging(1styear)
TA=25°C.
—
—
±3
Aging(10years)
TA=25°C.
—
—
±10
OutputLoad
LVDS.
Differential.
—
100
—
Ω
LVPECL.
VDD-2.0V.
—
50
—
HCSL.
ToGND.
—
50
—
Start-upTime
Output valid time after VDD meets minimum specified level.
—
5
—
ms
OutputRiseTime
LVDS.
20% – 80%, 156.25MHz
—
303
400
ps
LVPECL.
—
292
400
HCSL.
—
310
400
CML
—
304
400
OutputFallTime
LVDS.
80% – 20%, 156.25MHz
—
282
400
ps
LVPECL.
—
278
400
HCSL.
—
288
400
CML
—
281
400
OutputClockDutyCycle
LVDS.
156.25MHz
48
—
52
%
LVPECL.
156.25MHz
48
—
52
HCSL.
156.25MHz
48
—
52
CML
156.25MHz
48
—
52
OutputEnable/DisableTime
—
—
—
1
—
ms

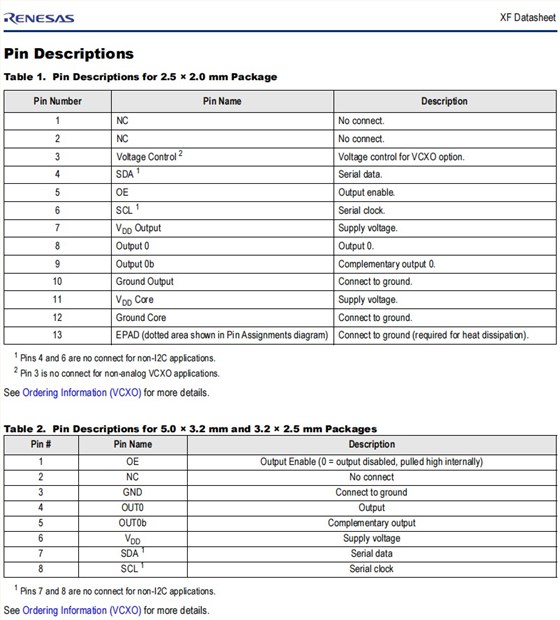

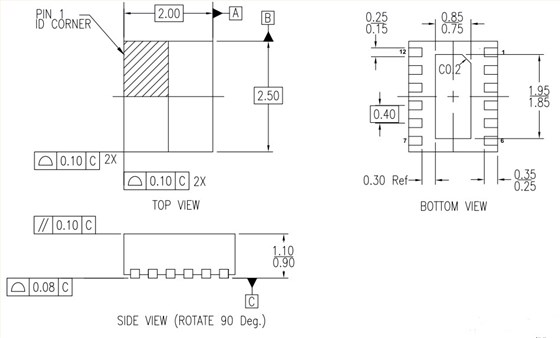

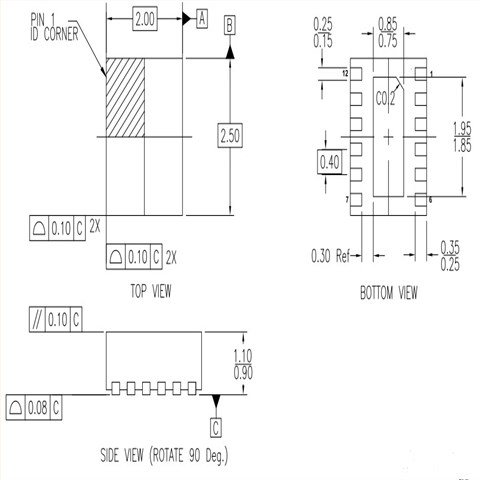

瑞薩HCSL輸出石英晶振,XFN236156.250000I,通信設備晶振,尺寸圖
瑞薩HCSL輸出石英晶振,XFN236156.250000I,通信設備晶振

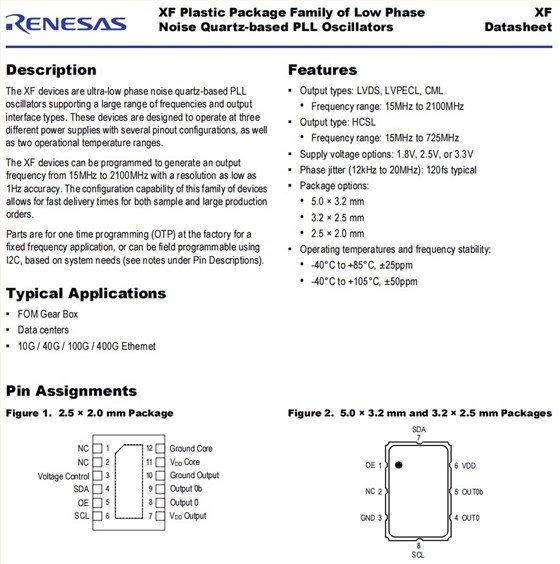

產品特點：
輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：5.0×3.2mm，3.2×2.5mm，2.5×2.0mm石英晶振
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm
| 編碼 | 晶振生產廠家 | 描述 | 系列 | 頻率 | 輸出 | 電壓 |
| XFC236156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 3.3V |
| XFP236625.000000I | Renesas晶振 | XTAL OSC XO 625.0000MHZ LVPECL | XFP | 625 MHz | LVPECL | 3.3V |
| XFP236312.500000I | Renesas晶振 | XTAL OSC XO 312.5000MHZ LVPECL | XFP | 312.5 MHz | LVPECL | 3.3V |
| XFP536625.000000I | Renesas晶振 | 625.000000 MHZ 3.3VDC LVPECL 503 | XFP | 625 MHz | LVPECL | 3.3V |
| XFN516100.000000I | Renesas晶振 | 100.000000 MHZ 1.8VDC HCSL 5032 | XFN | 100 MHz | HCSL | 1.8V |
| XFP236156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 3.3V |
| XFP235156.250000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 156.25 MHz | LVPECL | 3.3V |
| XFN336100.000000I | Renesas晶振 | 100.000000 MHZ 3.3VDC HCSL 3225 | XFN | 100 MHz | HCSL | 3.3V |
| XFP336312.500000I | Renesas晶振 | 312.500000 MHZ 3.3VDC LVPECL 322 | XFP | 312.5 MHz | LVPECL | 3.3V |
| XFP236148.500000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 148.5 MHz | LVPECL | 3.3V |
| XFN236100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 100 MHz | HCSL | 3.3V |
| XFP526156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 2.5V |
| XFP536025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVPECL | XFP | 25 MHz | LVPECL | 3.3V |
| XFP336161.132812I | Renesas晶振 | XTAL OS XO 161.132812MHZ LVPECL | XFP | 161.132812 MHz | LVPECL | 3.3V |
| XFP536156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 3.3V |
| XFC516025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ CML SMD | XFC | 25 MHz | CML | 1.8V |
| XFP216025.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 25 MHz | LVPECL | 1.8V |
| XFN236156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 156.25 MHz | HCSL | 3.3V |
| XFN216100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 100 MHz | HCSL | 1.8V |
| XFP236161.132812I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 161.132812 MHz | LVPECL | 3.3V |
| XFP226156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 156.25 MHz | LVPECL | 2.5V |
| XFP216625.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 625 MHz | LVPECL | 1.8V |
| XFN216161.132812I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 161.132812 MHz | HCSL | 1.8V |
| XFP216156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 1.8V |
| XFN236025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ HCSL SMD | XFN | 25 MHz | HCSL | 3.3V |
| XFC226156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 2.5V |
| XFC216837.500000I | Renesas晶振 | XTAL OSC XO 837.5000MHZ CML SMD | XFC | 837.5 MHz | CML | 1.8V |
| XFP336048.000000I | Renesas晶振 | XTAL OSC XO 48.0000MHZ LVPECL | XFP | 48 MHz | LVPECL | 3.3V |
| XFP336156.253906I | 進口晶振 | XTAL OS XO 156.253906MHZ LVPECL | XFP | 156.253906 MHz | LVPECL | 3.3V |
| XFW536156.250000I | Renesas晶振 | XFW536156.25000 PROGRAMMABLE XO | XFW | - | - | - |
| XFP536045.158400I | Renesas晶振 | XTAL OSC XO 45.1584MHZ LVPECL | XFP | 45.1584 MHz | LVPECL | 3.3V |
| XFN336212.500000I | Renesas晶振 | XTAL OSC XO 212.5000MHZ HCSL SMD | XFN | 212.5 MHz | HCSL | 3.3V |
| XFP316156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 1.8V |
| XFX536100.000000I | Renesas晶振 | XFX536100.00000 PROGRAMMABLE XO | XFX | - | - | - |
| XFP23C156.250000I | Renesas晶振 | XFP23C156.25000 PROGRAMMABLE XO | XFP | - | - | - |
| XFP536750.000000I | Renesas晶振 | XTAL OSC XO 750.0000MHZ LVPECL | XFP | 750 MHz | LVPECL | 3.3V |
| XFP326100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVPECL | XFP | 100 MHz | LVPECL | 2.5V |
| XFZ536100.000000I | Renesas晶振 | XFZ536100.00000 PROGRAMMABLE XO | XFZ | - | - | - |
| XFP336125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVPECL | XFP | 125 MHz | LVPECL | 3.3V |
| XFC536100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ CML SMD | XFC | 100 MHz | CML | 3.3V |
| XFP336050.000000I | Renesas晶振 | XTAL OSC XO 50.0000MHZ LVPECL | XFP | 50 MHz | LVPECL | 3.3V |
| XFP536100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVPECL | XFP | 100 MHz | LVPECL | 3.3V |
| XFP326025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVPECL | XFP | 25 MHz | LVPECL | 2.5V |
| XFP336156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 3.3V |
| XFC536272.800000I | Renesas晶振 | XTAL OSC XO 272.8000MHZ CML SMD | XFC | 272.8 MHz | CML | 3.3V |
| XFN536156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ HCSL SMD | XFN | 156.25 MHz | HCSL | 3.3V |
| XFN536100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XFN | 100 MHz | HCSL | 3.3V |
| XFY536100.000000I | Renesas晶振 | XFY536100.00000 PROGRAMMABLE XO | XFY | - | - | - |
| XFP326715.033000I | Renesas晶振 | XTAL OSC XO 715.0330MHZ LVPECL | XFP | 715.033 MHz | LVPECL | 2.5V |
| XFP336025.235849I | Renesas晶振 | XTAL OSC XO 25.235849MHZ LVPECL | XFP | 25.235849 MHz | LVPECL | 3.3V |
| XFP21C156.250000I | Renesas晶振 | XFP21C156.25000 PROGRAMMABLE XO | XFP | - | - | - |
| XFN216033.333300I | Renesas晶振 | XTAL OSC XO 33.3333MHZ HCSL SMD | XFN | 33.3333 MHz | HCSL | 1.8V |
| XFN236050.000000I | Renesas晶振 | XTAL OSC XO 50.0000MHZ HCSL SMD | XFN | 50 MHz | HCSL | 3.3V |
| XFP326312.500000I | Renesas晶振 | XTAL OSC XO 312.5000MHZ LVPECL | XFP | 312.5 MHz | LVPECL | 2.5V |
| XFC23C850.053267K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 850.053267 MHz | CML | 3.3V |
| XFP23VA00.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 1 GHz | LVPECL | 3.3V |
| XFP336A00.000000I | Renesas晶振 | XTAL OSC XO 1.0000GHZ LVPECL SMD | XFP | 1 GHz | LVPECL | 3.3V |
| XFP536A00.000000I | Renesas晶振 | XTAL OSC XO 1.0000GHZ LVPECL SMD | XFP | 1 GHz | LVPECL | 3.3V |
| XFC235156.250000K | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 3.3V |
| XFP525015.000000K | Renesas晶振 | XTAL OSC XO 15.0000MHZ LVPECL | XFP | 15 MHz | LVPECL | 2.5V |
| XFN235100.000000K | Renesas晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XFN | 100 MHz | HCSL | 3.3V |
| XFC535750.000000K | Renesas晶振 | XTAL OSC XO 750.0000MHZ CML SMD | XFC | 750 MHz | CML | 3.3V |
| XFN315100.000000K | Renesas晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XFN | 100 MHz | HCSL | 1.8V |
| XFP335156.250000K | Renesas晶振 | XTAL OSC XO 156.2500MHZ LVPECL | XFP | 156.25 MHz | LVPECL | 3.3V |
| XFP535312.500000K | Renesas晶振 | XTAL OSC XO 312.5000MHZ LVPECL | XFP | 312.5 MHz | LVPECL | 3.3V |
| XFC325125.000000K | Renesas晶振 | XTAL OSC XO 125.0000MHZ CML SMD | XFC | 125 MHz | CML | 2.5V |
| XFP316K00.000000I | Renesas晶振 | XTAL OSC XO 2.0000GHZ LVPECL SMD | XFP | 2 GHz | LVPECL | 1.8V |
| XFP535025.000000K | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVPECL | XFP | 25 MHz | LVPECL | 3.3V |
| XFC215156.250000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 156.25 MHz | CML | 1.8V |
| XFC215800.000000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 800 MHz | CML | 1.8V |
| XFP235312.500000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFP | 312.5 MHz | LVPECL | 3.3V |
| XFC23C850.053267I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 850.053267 MHz | CML | 3.3V |
| XFN336148.500000I | Renesas晶振 | IC OSC VCXO QD FREQ 10CLCC | XFN | 148.5 MHz | HCSL | 3.3V |
| XFN336625.000000I | Renesas晶振 | XFN336625.000000I | XFN | 625 MHz | HCSL | 3.3V |
