LH-1

2016mm|FA2016AN|24MHz|X1E0003510015|10pF|±10ppm，日本進口晶振，EPSON愛普生株式會社，晶振型號：FA2016AN，編碼為：X1E0003510015，是一款小體積晶振尺寸2.0x1.6x0.5mm封裝，四腳貼片晶振，無源晶振，石英晶振，貼片晶振，無鉛環保晶振，石英晶體諧振器，頻率為：24MHz，工作溫度范圍：-40℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特點，石英晶振被廣泛用于：移動通訊晶振，可穿戴設備晶振，智能手機晶振，無線局域網晶振，藍牙模塊晶振，ISM頻段電臺廣播，小型便捷式設備，電信設備晶振，數碼電子晶振，智能家居等應用。

LH-2

2016mm|FA2016AN|24MHz|X1E0003510015|10pF|±10ppm，參數表

項目	符號	FA2016AN 規格說明		條件
		用于RF參考	用于時鐘
額定頻率范圍	f_nom	24.000 MHz ~ 54.000 MHz		基頻請聯系我們以便獲取其他可用頻率的相關信息
		24, 24.576, 25, 26, 27, 27.12, 30, 32, 37.4, 38.4,40, 48, 50, 52, 54 MHz		標準頻率
儲存溫度范圍	T_stg	-40 °C ~ +125 °C		裸存
工作溫度范圍	T_use	-40 °C ~ +85 °C
激勵功率	DL	100 µW Max.	200 µW Max.	推薦: 1 µW ~ 100 µW
頻率公差（標準）	f_tol	±10 × 10-6*1	±30 × 10-6	+25 °C 對于超出標準的規格說明，請聯系我們以便獲取相關信息

頻率溫度特征（標準）	f_tem	±10 × 10-6*1	±30 × 10-6	-20 °C ~ +75 °C 對于超出標準的規格說明，請聯系我們以便獲

負載電容	CL	6 pF ~ ∞		可指定
串聯電阻（ESR)	R1	如下表圖所示		-20 °C ~ +75 °C
頻率老化	f_age	±1 × 10-6 / year Max.	±5 × 10-6 / year Max.	+25 °C, 第一年

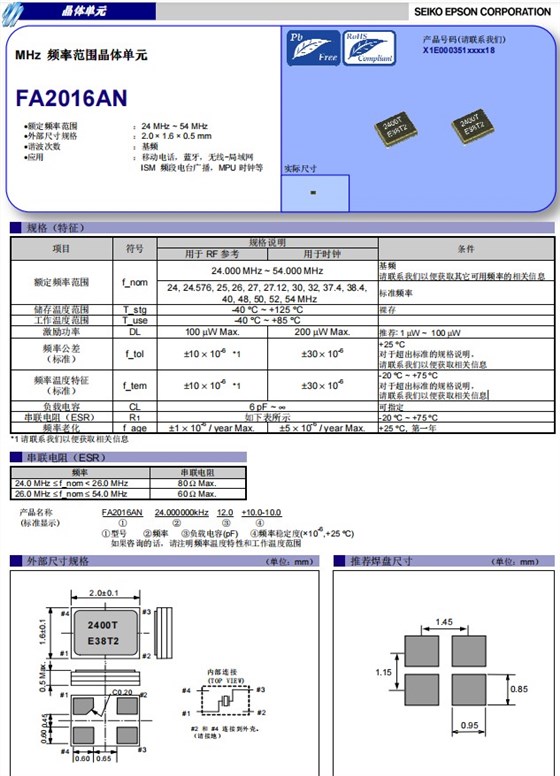

2016mm|FA2016AN|24MHz|X1E0003510015|10pF|±10ppm，尺寸圖

日本進口晶振	尺寸	型號	頻率	負載	頻率 @+25°C
X1E0003510001	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	8 pF	+/-30 ppm
X1E0003510002	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	8 pF	+/-30 ppm
X1E0003510006	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	12 pF	+/-20 ppm
X1E0003510014	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	8 pF	+/-10 ppm
X1E0003510015	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	10 pF	+/-10 ppm
X1E0003510016	2 x 1.6 x 0.5mm	FA2016AN	24.576000 MHz	10 pF	+/-10 ppm
X1E0003510017	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	8 pF	+/-30 ppm
X1E0003510018	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	10 pF	+/-10 ppm
X1E0003510019	2 x 1.6 x 0.5mm	FA2016AN	27.000000 MHz	10 pF	+/-30 ppm
X1E0003510020	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	8 pF	+/-15 ppm
X1E0003510021	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	10 pF	+/-30 ppm
X1E0003510022	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	10 pF	+/-10 ppm
X1E0003510023	2 x 1.6 x 0.5mm	FA2016AN	37.400000 MHz	9 pF	+/-10 ppm
X1E0003510024	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	8 pF	+/-10 ppm
X1E0003510025	2 x 1.6 x 0.5mm	FA2016AN	40.000000 MHz	8 pF	+/-10 ppm
X1E0003510026	2 x 1.6 x 0.5mm	FA2016AN	48.000000 MHz	8 pF	+/-30 ppm
X1E0003510027	2 x 1.6 x 0.5mm	FA2016AN	48.000000 MHz	10 pF	+/-10 ppm
X1E0003510028	2016晶振	FA2016AN	50.000000 MHz	7 pF	+/-10 ppm
X1E0003510029	2 x 1.6 x 0.5mm	FA2016AN	52.000000 MHz	10 pF	+/-10 ppm
X1E0003510030	2 x 1.6 x 0.5mm	FA2016AN	54.000000 MHz	6 pF	+/-10 ppm
X1E0003510033	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-10 ppm
X1E0003510038	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	8 pF	+/-15 ppm
X1E0003510044	2 x 1.6 x 0.5mm	FA2016AN	49.152000 MHz	6 pF	+/-20 ppm
X1E0003510049	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	12 pF	+/-10 ppm
X1E0003510050	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	12 pF	+/-10 ppm
X1E0003510052	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-20 ppm
X1E0003510059	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	16 pF	+/-30 ppm
X1E0003510060	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	9 pF	+/-10 ppm
X1E0003510062	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	10 pF	+/-10 ppm
X1E0003510063	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	10 pF	+/-10 ppm
X1E0003510064	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	10 pF	+/-10 ppm
X1E0003510065	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	6 pF	+/-30 ppm
X1E0003510066	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	6 pF	+/-20 ppm
X1E0003510067	2 x 1.6 x 0.5mm	FA2016AN	50.000000 MHz	8 pF	+/-10 ppm
X1E0003510068	2 x 1.6 x 0.5mm	FA2016AN	50.000000 MHz	8 pF	+/-10 ppm
X1E0003510069	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	6 pF	+/-10 ppm
X1E0003510070	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	10 pF	+/-10 ppm
X1E0003510071	2 x 1.6 x 0.5mm	FA2016AN	27.000000 MHz	8 pF	+/-30 ppm
X1E0003510073	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-10 ppm
X1E0003510074	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	8 pF	+/-10 ppm
X1E0003510075	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	12 pF	+/-10 ppm
