WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振，美國進口晶振，Mmdcomp麥迪康晶振，型號：WC315系列，編碼為：WC315-32.768KHZ-T，頻率為：32.768KHz，負載：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.9mm，兩腳貼片晶振，無源晶振，3215晶振，石英晶體，SMD晶振，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。應用于：移動通訊晶振，鐘表電子晶振，儀器儀表設備晶振，無線藍牙晶振，平板電腦晶振，智能家居晶振，數碼電子等應用。

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,產品特點:

陶瓷SMD音叉晶體
頻率：32.768KHz
符合RoHS
提供帶卷包裝

LH-2

CTS-2

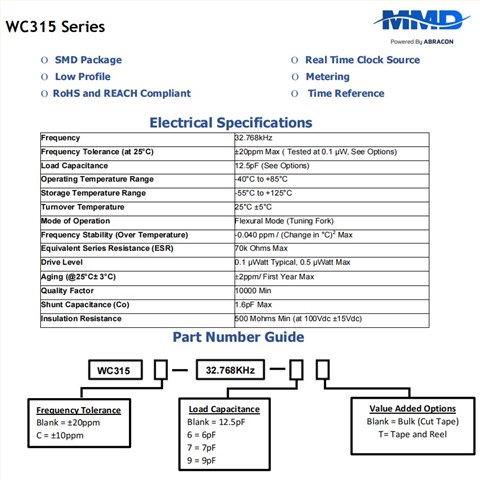

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,參數表

Frequency

32.768kHz

Frequency Tolerance (at 25°C)

±20ppm Max ( Tested at 0.1 µW, See Options)

Load Capacitance

12.5pF (See Options)

Operating Temperature Range

-40°C to +85°C

Storage Temperature Range

-55°C to +125°C

Turnover Temperature

25°C ±5°C

Mode of Operation

Flexural Mode (Tuning Fork)

Frequency Stability (Over Temperature)

-0.040 ppm / (Change in °C)2Max

Equivalent Series Resistance (ESR)

70k Ohms Max

Drive Level

0.1 µWatt Typical, 0.5 µWatt Max

Aging (@25°C± 3°C)

±2ppm/ First Year Max

Quality Factor

10000 Min

Shunt Capacitance (Co)

1.6pF Max

Insulation Resistance

500 Mohms Min (at 100Vdc ±15Vdc)

LH-3

ECS-1

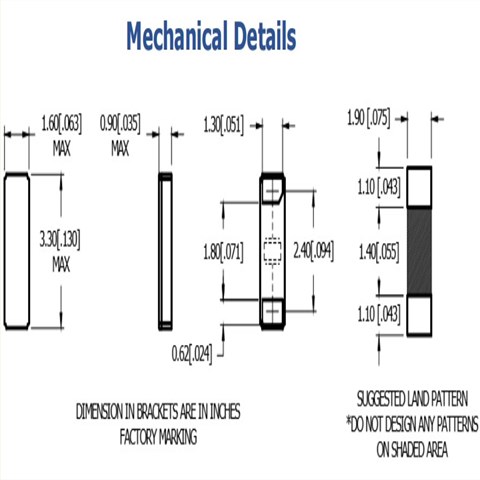

WC315-32.768KHZ-T,WC315,3215mm,Mmdcomp石英晶振,尺寸圖

進口晶振	品牌	描述	頻率	系列	負載電容
WC146SMF-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC146SM	12.5pF
MMC-463F-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	MMC	12.5pF
WC315-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC315	12.5pF
DF18CC1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 18PF SMD	16 MHz	D	18pF
DF18CC1-10.240MHZ-T	Mmdcomp晶振	CRYSTAL 10.2400MHZ 18PF SMD	10.24 MHz	D	18pF
DF18CC1-13.000MHZ-T	Mmdcomp晶振	CRYSTAL 13.0000MHZ 18PF SMD	13 MHz	D	18pF
T10GC1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 10PF SMD	20 MHz	T	10pF
X10CB1-40.000MHZ-T	Mmdcomp晶振	CRYSTAL 40.0000MHZ 10PF SMD	40 MHz	X	10pF
X10CB1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 10PF SMD	24.576 MHz	X	10pF
X10CB1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 10PF SMD	25 MHz	X	10pF
DF18CC1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 18PF SMD	20 MHz	D	18pF
DF18CC1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 18PF SMD	24.576 MHz	D	18pF
DF18CC1-18.000MHZ-T	Mmdcomp晶振	CRYSTAL 18.0000MHZ 18PF SMD	18 MHz	D	18pF
DF18CC1-12.000MHZ-T	Mmdcomp晶振	CRYSTAL 12.0000MHZ 18PF SMD	12 MHz	D	18pF
DF18CC1-13.500MHZ-T	Mmdcomp晶振	CRYSTAL 13.5000MHZ 18PF SMD	13.5 MHz	D	18pF
DF18CC1-24.000MHZ-T	Mmdcomp晶振	CRYSTAL 24.0000MHZ 18PF SMD	24 MHz	D	18pF
DF18CC1-12.288MHZ-T	Mmdcomp晶振	CRYSTAL 12.2880MHZ 18PF SMD	12.288 MHz	D	18pF
T10GC1-24.000MHZ-T	石英晶振	CRYSTAL 24.0000MHZ 10PF SMD	24 MHz	T	10pF
T10GC1-19.200MHZ-T	Mmdcomp晶振	CRYSTAL 19.2000MHZ 10PF SMD	19.2 MHz	T	10pF
T10GC1-24.576MHZ-T	Mmdcomp晶振	CRYSTAL 24.5760MHZ 10PF SMD	24.576 MHz	T	10pF
T10GC1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 10PF SMD	16 MHz	T	10pF
T10GC1-48.000MHZ-T	Mmdcomp晶振	CRYSTAL 48.0000MHZ 10PF SMD	48 MHz	T	10pF
X10CB1-16.000MHZ-T	Mmdcomp晶振	CRYSTAL 16.0000MHZ 10PF SMD	16 MHz	X	10pF
X10CB1-16.3676MHZ-T	Mmdcomp晶振	CRYSTAL 16.3676MHZ 10PF SMD	16.3676 MHz	X	10pF
X10CB1-24.000MHZ-T	Mmdcomp晶振	CRYSTAL 24.0000MHZ 10PF SMD	24 MHz	X	10pF
WC26SMFD-32.768KHZ-T	Mmdcomp晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	32.768 kHz	WC26SM	12.5pF
WC38F-32.768KHZ	Mmdcomp晶振	2 PIN THROUGH HOLE METAL PACKAGE	32.768 kHz	WC	12.5pF
WC26F-32.768KHZ	Mmdcomp晶振	2 PIN THROUGH HOLE METAL PACKAGE	32.768 kHz	WC	12.5pF
X10CB1-48.000MHZ-T	Mmdcomp晶振	CRYSTAL 48.0000MHZ 10PF SMD	48 MHz	X	10pF
X10CB1-20.000MHZ-T	Mmdcomp晶振	CRYSTAL 20.0000MHZ 10PF SMD	20 MHz	X	10pF
DF18CC1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 18PF SMD	25 MHz	D	18pF
X10CB1-19.200MHZ-T	Mmdcomp晶振	CRYSTAL 19.2000MHZ 10PF SMD	19.2 MHz	X	10pF
T10GC1-16.3676MHZ-T	Mmdcomp晶振	CRYSTAL 16.3676MHZ 10PF SMD	16.3676 MHz	T	10pF
T10GC1-25.000MHZ-T	Mmdcomp晶振	CRYSTAL 25.0000MHZ 10PF SMD	25 MHz	T	10pF
T10GC1-40.000MHZ-T	Mmdcomp晶振	CRYSTAL 40.0000MHZ 10PF SMD	40 MHz	T	10pF
