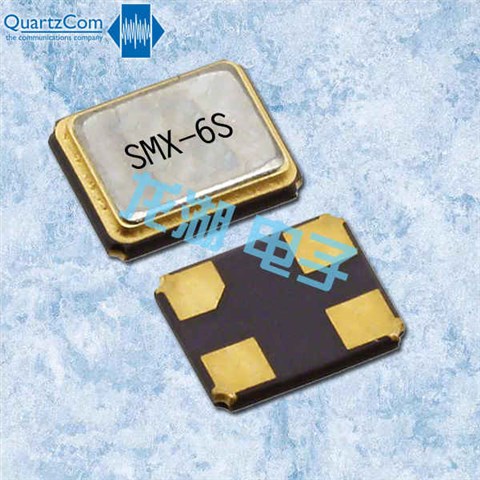

SMX-6S音頻晶振 20MHZ石英晶體 6G物聯網 QuartzcomCrystal，尺寸2.5x2.0mm，頻率20MHZ，瑞士石英通晶振，瑞士進口晶振，石英通貼片諧振器，SMD晶振，石英貼片晶振，SMD無源晶體，輕薄型晶體，超小型晶振，石英晶振，無鉛環保晶振，無源晶振，水晶振動子，電信專用晶振，汽車應用晶振，醫療設備晶振，音頻設晶振，智能家居石英晶振，小型設備晶振，藍牙音響專用晶振，無線網絡晶振，通信產品晶振，低老化晶振，低成本晶體，高性能晶振，產品具有高性能低老化的特點。
SMD晶振產品超級適合用于電信，汽車應用，醫療設備，音頻設，智能家居，小型設，藍牙音響，無線網絡，通信產品等領域。SMX-6S音頻晶振 20MHZ石英晶體 6G物聯網 QuartzcomCrystal.

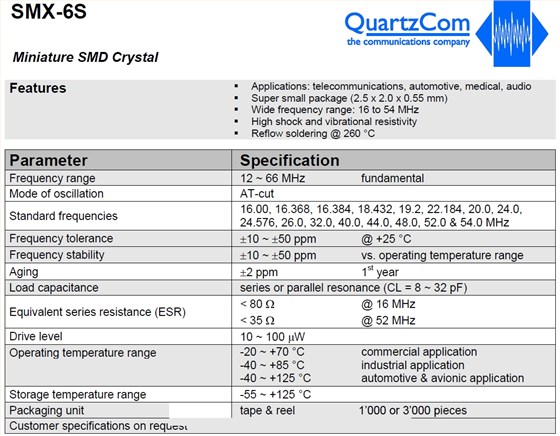

SMX-6S音頻晶振 20MHZ石英晶體 6G物聯網 QuartzcomCrystal 參數表
| Parameter | Specification | |||||||||
| Frequency range | 20 MHzfundamental | |||||||||
| Mode of oscillation | AT-cut | |||||||||
| Standard frequencies |
16.00, 16.368, 16.384, 18.432, 19.2, 22.184, 20.0, 24.0, 24.576, 26.0, 32.0, 40.0, 44.0, 48.0, 52.0 & 54.0 MHz |
|||||||||
| Frequency tolerance | 土10 ~土50 ppm@ +25 °C | |||||||||
| Frequency stability | 土10 ~土50 ppmvs. operating temperature range | |||||||||
| Aging | 土2 ppm | 1st | year | |||||||
| Load capacitance | series or parallel resonance (CL = 8 ~ 32 pF) | |||||||||
| Equivalent series resistance (ESR) |
< 80Ω < 35Ω |
@ 16 MHz @ 52 MHz |
||||||||
| Drive level | 10 ~ 100μW | |||||||||
| Operating temperature range |
-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C |
commercial application industrial application automotive & avionic application |
||||||||
| Storage temperature range | -55 ~ +125 °C | |||||||||
| Packaging unit | tape & reel1’000 or 3’000 pieces | |||||||||
| Customer specifications on request | ||||||||||

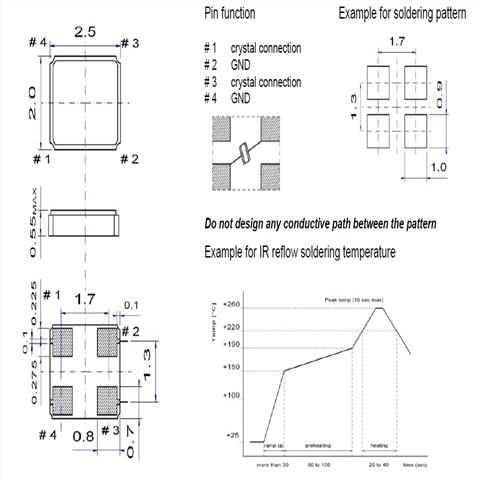

SMX-6S音頻晶振 20MHZ石英晶體 6G物聯網 QuartzcomCrystal 尺寸圖
無源晶振產品特性：
16至54MHz
高抗沖擊和振動性
260°C回流焊接
非常低的老化
更多相關石英通QuartzcomCrystal型號,請咨詢我們！
