LH-1

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振，尺寸為2.5*2.0mm,頻率156.25MHZ，輸出邏輯LVPECL，差分輸出信號LV-PECL，LVPECL差分振蕩器，差分貼片晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分晶振，低耗能差分晶振，低相位差分振蕩器，低相噪差分晶振，高頻差分晶振，156.25MHZ差分振蕩器，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡專用差分晶振，6G路由器專用差分晶振，小型設備專用差分晶振，有源振蕩器產品具有低電壓低抖動低功耗的特點，非常適合用于6G兼容設備，光通信、光收發器，WDM設備，可視化智能家居，娛樂設備，數字視頻，儀器儀表以及光模塊等領域。6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振.

LH-2

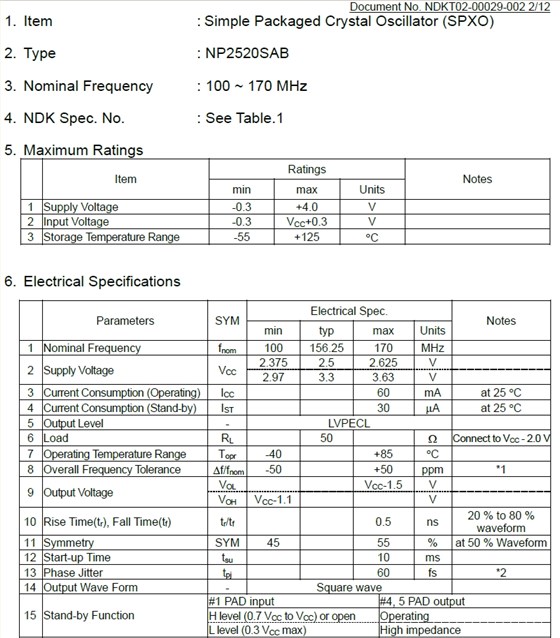

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振參數表

Item

Ratings

Notes

min

max

Units

Supply Voltage

-0.3

+4.0

Input Voltage

-0.3

VCC+0.3

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

Nominal Frequency

fnom

156.25

MHz

Supply Voltage

VCC

2.375

2.5

2.625

2.97

3.3

3.63

Current Consumption (Operating)

ICC

at 25。C

Current Consumption (Stand-by)

IST

μA

at 25。C

Output Level

LVPECL

Load

Connect to VCC- 2.0 V

Operating Temperature Range

Topr

-40

+85

。C

Overall Frequency Tolerance

Δf/fnom

-50

+50

ppm

Output Voltage

VOL

VCC- 1.5

VOH

VCC- 1.1

Rise Time(tr), Fall Time(tf)

tr/tf

0.5

20 % to 80 %
waveform

Symmetry

SYM

at 50 % Waveform

Start-up Time

tsu

Phase Jitter

tpj

Output Wave Form

Square wave

Stand-by Function

#1 PAD input

#4, 5 PAD output

H level (0.7 VCCto VCC) or open

Operating

L level (0.3 VCCmax)

High impedance

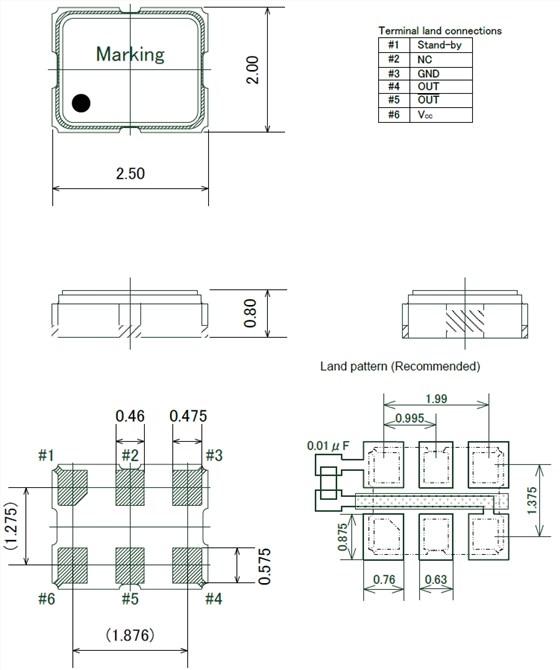

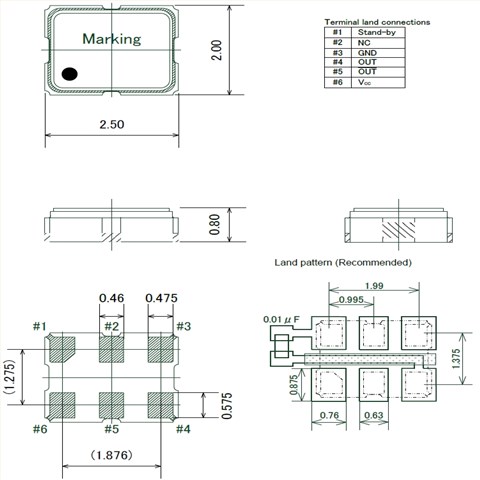

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振 尺寸圖

產品特性：

LVPECL差分輸出SPXO有源晶振

緊湊:2.5 x 2.0 x 0.8毫米

電源電壓:+2.5V或者+3.3V

低相位抖動:典型。156.25MHz時60fs

無鉛

更多相關日本NDK晶振型號

Model	Nominal frequency[MHz]	Specification number	Manufacturer	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]	Storage temperature range[℃]	Supply voltage[V]
NP2520SB	156.25MHZ	NSC5301A	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+2.5±0.125
NP2520SB	156.25MHZ	NSC5301B	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+3.3±0.33
NP2520SAB	156.25MHZ	NSC5326A	NDK晶振	2.5x2.0	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP2520SAB	156.25MHZ	NSC5326B	NDK晶振	2.5x2.0	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP2520SBB	156.25MHZ	NSC5327A	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+2.5±0.125
NP2520SBB	156.25MHZ	NSC5327B	NDK晶振	2.5x2.0	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SA	100MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	122.88MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	125MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	156.25MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	175MHZ	NSC5080A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	100MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	122.88MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	125MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	156.25MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	175MHZ	NSC5341B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	100MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	122.88MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	125MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	156.25MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	175MHZ	NSC5189A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	100MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	122.88MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	125MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	156.25MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	175MHZ	NSC5342B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	200MHZ	NSC5235A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	212.5MHZ	NSC5235A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SA	200MHZ	NSC5235B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	212.5MHZ	NSC5235B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SA	200MHZ	NSC5237A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	212.5MHZ	NSC5237A	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+2.5±0.125
NP3225SA	200MHZ	NSC5237B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SA	212.5MHZ	NSC5237B	NDK晶振	3.2x2.5	LVPECL	-40~+105	-55~+125	+3.3±0.33
NP3225SB	50MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	100MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	125MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	135MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	148MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	156.25MHZ	NSC5343A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	200MHZ	NSC5236A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SB	50MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	100MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	125MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	135MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	148MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	156.25MHZ	NSC5343B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	200MHZ	NSC5236B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SB	50MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	100MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	125MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
NP3225SB	135MHZ	NSC5344A	NDK晶振	3.2x2.5	LVDS	-40~+105	-55~+125	+2.5±0.125
