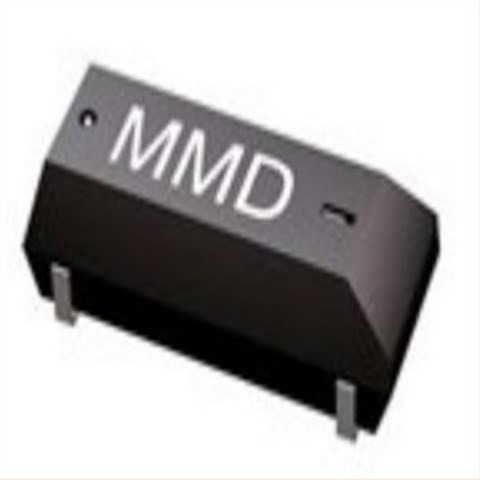

MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振，美國進口晶振，Mmdcomp麥迪康晶振，型號：MMC系列，編碼為：MMC-463F-32.768kHz-T，頻率為：32.768KHz，負載：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：8.0x3.8x2.5mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶體諧振器，石英晶體，SMD晶振。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。應用于：移動通訊晶振，鐘表電子晶振，儀器儀表設備晶振，無線藍牙晶振，平板電腦晶振，智能家居晶振，數碼電子等應用。
MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振,產品特點:
頻率：32.768KHz，陶瓷SMD晶振
小型緊湊型，貼片晶振
可提供符合RoHS的產品

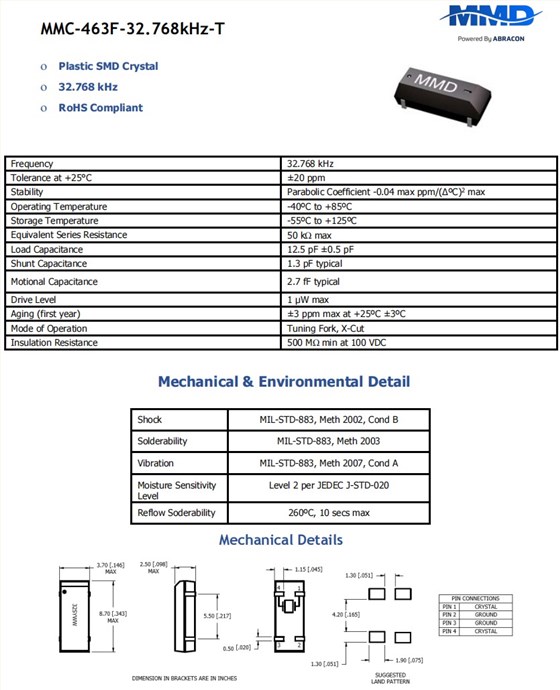

MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振,參數表
Frequency
32.768 kHz
Tolerance at +25°C
±20 ppm
Stability
Parabolic Coefficient -0.04 max ppm/(△ºC)2max
Operating Temperature
-40ºC to +85ºC
Storage Temperature
-55ºC to +125ºC
Equivalent Series Resistance
50 kΩmax
Load Capacitance
12.5 pF ±0.5 pF
Shunt Capacitance
1.3 pF typical
Motional Capacitance
2.7 fF typical
Drive Level
1 µW max
Aging (first year)
±3 ppm max at +25ºC ±3ºC
Mode of Operation
Tuning Fork, X-Cut
Insulation Resistance
500 MΩmin at 100 VDC

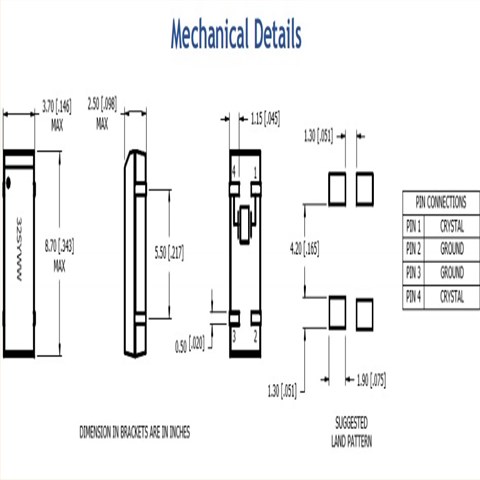

MMC-463F-32.768kHz-T,8038mm,MMC,Mmdcomp陶瓷晶振,尺寸圖
