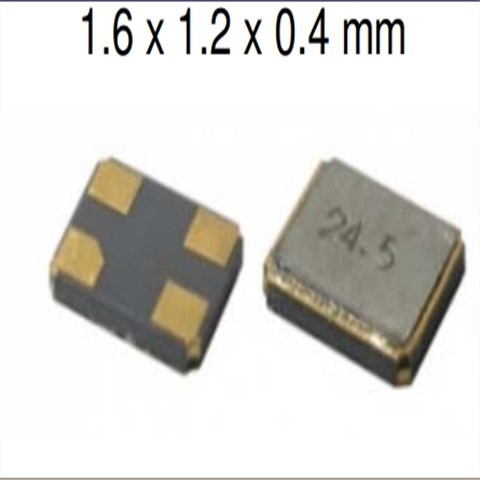

F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G無線應用晶振，頻率32MHZ，F(xiàn)1612A是一款采用超小型封裝的陶瓷4焊盤SMD晶體，尺寸為1.6x1.2x0.40mm。頻率范圍為24MHz至60MHz。多種穩定性和耐溫性選項。四腳貼片晶振，超小型晶振，SMD無源晶體，石英晶振，荷蘭進口晶振，輕薄型晶振，無鉛環保晶振，石英晶體諧振器，SMD晶振，石英貼片晶振，無源石英晶振，藍牙專用晶振，無線應用晶振，儀器設備晶振，便攜式設備晶振，智能家居晶振，以太網晶振，路由器專用晶振，高質量晶振，低損耗晶振。
石英晶振產品具有高質量低損耗的特點，適用范圍廣泛，尤其適合用于藍牙，無線應用，儀器設備，便攜式設備，網絡設備等領域。F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G無線應用晶振.

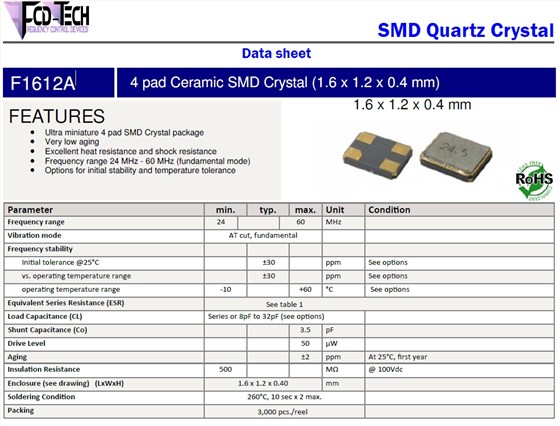

F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G無線應用晶振 參數表
| Parameter | min. | typ. | max. | Unit | Condition | ||||||||||
| Frequency range |
|
32 |
|
MHz | |||||||||||
| Vibration mode | AT cut, fundamental | ||||||||||||||
| Frequency stability | |||||||||||||||
| Initial tolerance @25°C | ±30 | ppm | See options | ||||||||||||
| vs. operating temperature range | ±30 | ppm | See options | ||||||||||||
| operating temperature range | ‐10 | +60 | °C | See options | |||||||||||

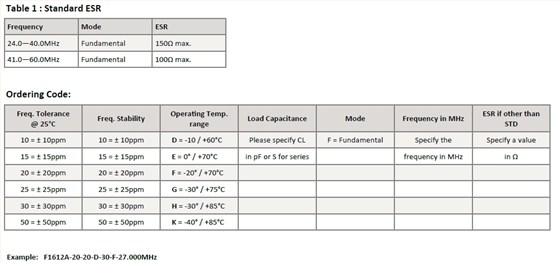

| Equivalent Series Resistance (ESR) | See table 1 | ||||||||||||||
| Load Capacitance (CL) | Series or 8pF to 32pF (see options) | ||||||||||||||
| Shunt Capacitance (Co) | 3.5 | pF | |||||||||||||
| Drive Level | 50 | µW | |||||||||||||
| Aging | ±2 | ppm | At 25°C, ?rst year | ||||||||||||
| Insulation Resistance | 500 | M? | @ 100Vdc | ||||||||||||
| Enclosure (see drawing)(LxWxH) | 1.6 x 1.2 x 0.40 | mm | |||||||||||||
| Soldering Condition | 260°C, 10 sec x 2 max. | ||||||||||||||
| Packing | 3,000 pcs./reel | ||||||||||||||

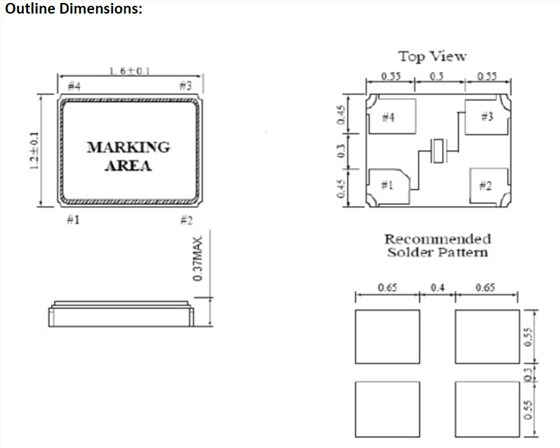

F1612A-20-20-F‐15‐F‐32.000MHz\FCD-Tech晶振\6G無線應用晶振 尺寸圖
產品特性：
超小型4焊盤SMD晶體封裝
非常低的老化
優異的耐熱性和抗沖擊性
頻率范圍24MHz至60MHz(基本模式)
更多相關荷蘭FCD-Tech晶振型號,請咨詢我們！
