BQCSF-45MF-DCBAT,2520mm,百利小體積晶振,45MHZ,BQCSF系列晶振,美國Bliley晶振,進口無源晶振,水晶振動子,四腳貼片晶振,2520貼片晶振,石英貼片晶振,無源晶振,SMD晶振,尺寸2.5x2.0mm,頻率45MHZ,負載8pF,無鉛環保晶振,低損耗晶振,低功耗晶振,高性能晶振,智能 音響晶振,筆記本電腦晶振,蜂窩電話晶振,儀器設備晶振.

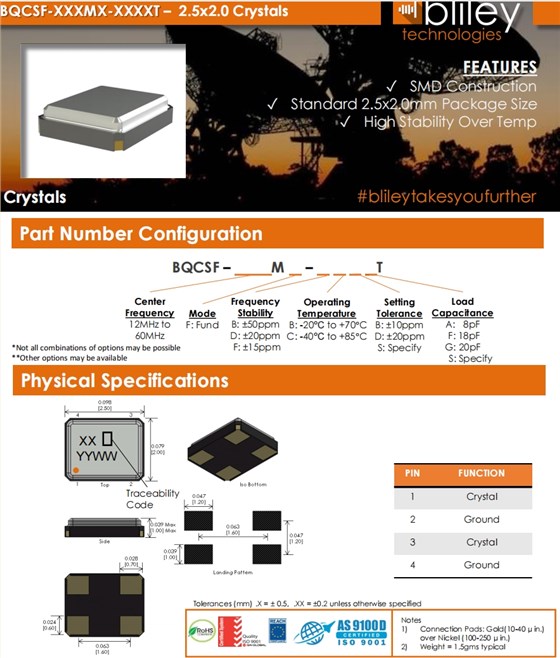

BQCSF-45MF-DCBAT,2520mm,百利小體積晶振,45MHZ,BQCSF系列晶振特點:
SMD貼片晶體結構
標準2.5x2.0mm包裝尺寸
高溫高穩定性

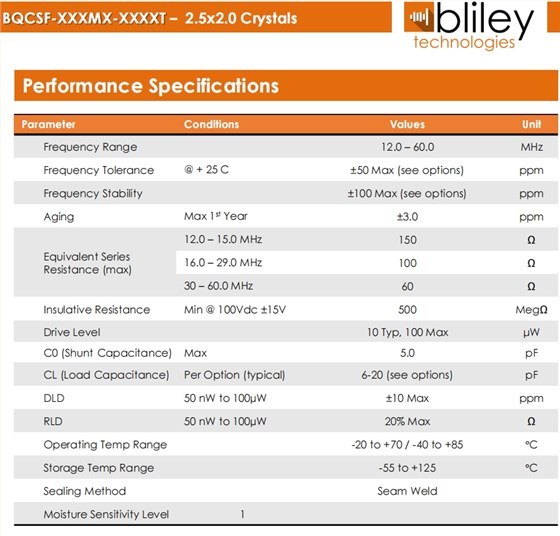

BQCSF-45MF-DCBAT,2520mm,百利小體積晶振,45MHZ,BQCSF系列晶振 參數表
| Parameter | Conditions | Values | Unit | |||||||||||||||||||||
| Frequency Range | 45.0 | MHz | ||||||||||||||||||||||
| Frequency Tolerance | @+ 25℃ | ±50 Max (see options) | ppm | |||||||||||||||||||||
| Frequency Stability | ±100 Max (see options) | ppm | ||||||||||||||||||||||
| Aging | Max 1stYear | ±3.0 | ppm | |||||||||||||||||||||
|
Equivalent Series Resistance (max) |
12.0 – 15.0 MHz | 150 | Ω | |||||||||||||||||||||
| 16.0 – 29.0 MHz | 100 | Ω | ||||||||||||||||||||||
| 30 – 60.0 MHz | 60 | Ω | ||||||||||||||||||||||
| Insulative Resistance | Min @ 100Vdc ±15V | 500 | MegΩ | |||||||||||||||||||||
| Drive Level | 10 Typ, 100 Max | μW | ||||||||||||||||||||||
| C0 (Shunt Capacitance) | Max | 5.0 | pF | |||||||||||||||||||||
| CL (Load Capacitance) | Per Option (typical) | 6-20 (see options) | pF | |||||||||||||||||||||
| DLD | 50 nW to 100µW | ±10 Max | ppm | |||||||||||||||||||||
| RLD | 50 nW to 100µW | 20% Max | Ω | |||||||||||||||||||||
| Operating Temp Range | -20 to +70 / -40 to +85 | ℃ | ||||||||||||||||||||||
| Storage Temp Range | -55 to +125 | ℃ | ||||||||||||||||||||||
| Sealing Method | Seam Weld | |||||||||||||||||||||||
| Moisture Sensitivity Level | 1 | |||||||||||||||||||||||

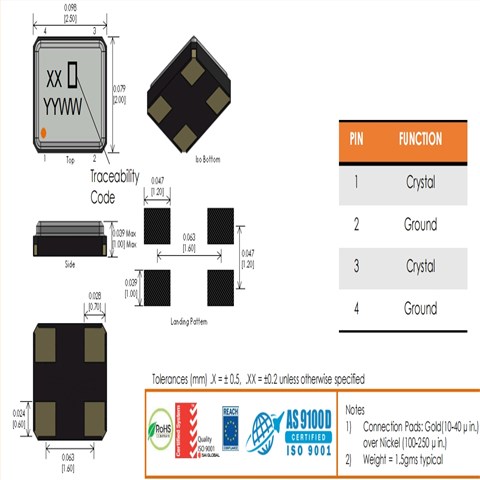

BQCSF-45MF-DCBAT,2520mm,百利小體積晶振,45MHZ,BQCSF系列晶振尺寸圖
