SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振

SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振

產品簡介

SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振，尺寸7.0×5.0mm，頻率40MHZ，輸出邏輯LVPECL，LVPECL差分晶體振蕩器，LVPECL輸出晶振，VCXO壓控晶振，壓控差分振蕩器，差分貼片晶振，OSC差分晶振，SMD有源差分晶振，六腳貼片差分晶振，6G電信壓控晶振，測試測量差分晶振，儀器設備晶振，路由器差分晶振，高質量差分晶振，高性能差分晶振，低抖動時鐘生成差分晶振，低損耗差分晶振，低功耗差分晶振，低電壓差分晶振，光學模塊壓控晶振，數據恢復差分晶振，具有低抖動的特點.

Si550 VCXO利用Skyworks Solutions的先進DSPLL®電路在高頻下提供低抖動時鐘。Si550支持任何頻率從10到945MHz，并選擇頻率到1417MHz。不像傳統的VCXO壓控晶體振蕩器，其中每個輸出需要不同的晶體頻率，Si550使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性。SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振.







產品詳情

Abracon-2

LH-1

SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振，尺寸7.0×5.0mm，頻率40MHZ，輸出邏輯LVPECL，LVPECL差分晶體振蕩器，LVPECL輸出晶振，VCXO壓控晶振，壓控差分振蕩器，差分貼片晶振，OSC差分晶振，SMD有源差分晶振，六腳貼片差分晶振，6G電信壓控晶振，測試測量差分晶振，儀器設備晶振，路由器差分晶振，高質量差分晶振，高性能差分晶振，低抖動時鐘生成差分晶振，低損耗差分晶振，低功耗差分晶振，低電壓差分晶振，光學模塊壓控晶振，數據恢復差分晶振，具有低抖動的特點.

Si550 VCXO利用Skyworks Solutions的先進DSPLL®電路在高頻下提供低抖動時鐘。Si550支持任何頻率從10到945MHz，并選擇頻率到1417MHz。不像傳統的VCXO壓控晶體振蕩器，其中每個輸出需要不同的晶體頻率，Si550使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性。SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振.

LH-2

SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振參數表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS


120
108
99
90 		130
117
108
98 		mA
tristate mode 60 75 mA
Output Enable (OE)2 VIH 0.75 x VDD V
VIL 0.5 V
Operating Temperature Range TA –40 85 °C
Parameter Symbol Test Condition Min Typ Max Units
Control Voltage Tuning Slope1,2,3 KV 10 to 90% of VDD




33
45
90
135
180
356




ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10 %
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500 kΩ
Nominal Control Voltage VCNOM @ fO VDD/2 V
Control Voltage Tuning Range VC 0 VDD V
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2,3 fO LVDS/CML/LVPECL 10 945 MHz
CMOS 10 160 MHz
Temperature Stability1,4 TA= –40 to +85 ºC –20
–50
–100

+20
+50
+100 		ppm
Absolute Pull Range1,4 APR ±12 ±375 ppm
Aging Frequency drift over first year. ±3 ppm
Frequency drift over 15 year life. ±10
Power up Time5 tOSC 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 VDD– 1.25 V
VOD swing (diff) 1.1 1.9 VPP
VSE swing (single-ended) 0.55 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 — V
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50 VPP
CMOS Output Option3 VOH IOH= 32 mA 0.8 x VDD — VDD V
VOL IOL= 32 mA — — 0.4 V
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 1 — ns
Symmetry (duty cycle) SYM LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2 		45 — 55 %
LH-3

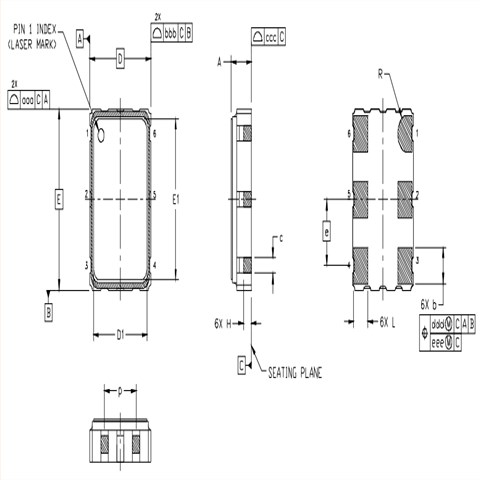

SkyworksOscillator/550AJ40M0000DGR/6G以太網晶振/Si550壓控晶振 尺寸圖

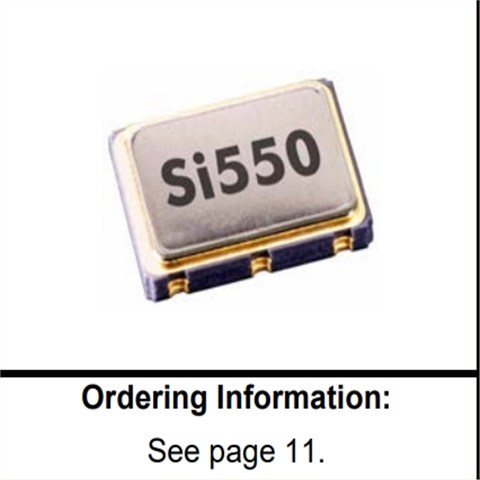

Si550

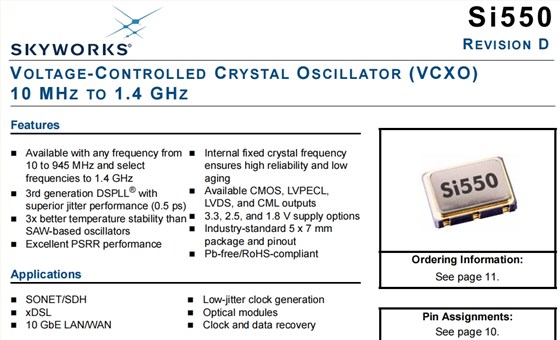

壓控晶振產品特點:

適用于以下任意頻率

10至945MHz，然后選擇

頻率至1.4 GHz

第三代DSPLL®卓越的抖動性能（0.5ps）

溫度穩定性比

SAW振蕩器

出色的PSRR性能

內部固定晶體頻率

確保高可靠性和低成本變老

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5 x 7mm包裝和引腳

無鉛/符合RoHS

Si550 1Si550 2
