奧斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列諧振器,美國Oscilent晶振,歐美進口晶振,石英晶振,無源插件晶振,大尺寸晶振,石英插件晶振,石英晶體諧振器,水晶振動子,尺寸11.0*3.8mm,頻率25MHZ,工作溫度-20~+70℃,無鉛晶振,高可靠晶振,高性能晶振,低老化晶振,小家電晶振,影音系統晶振,攝像頭晶振,游戲機晶振,數碼電子晶振.
奧斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列諧振器特點:
石英晶體行業標準套裝,寬頻率范圍
低調,卓越的可靠性/老化
“AT Strip”坯料技術,經濟高效
RoHs/無鉛合規

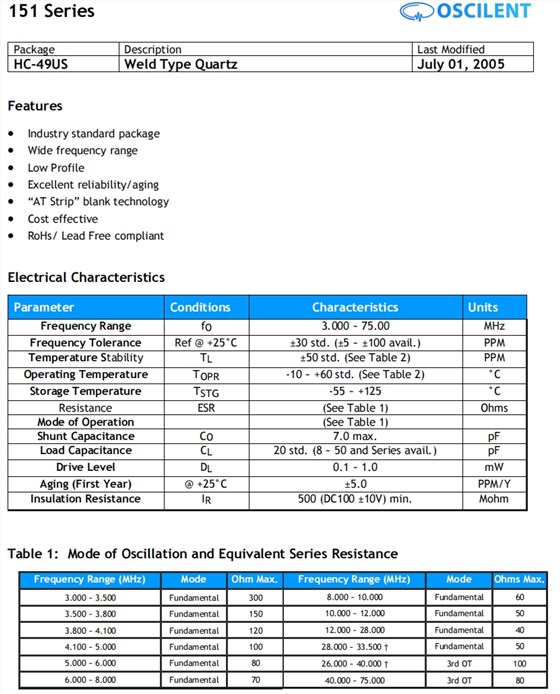

奧斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列諧振器 參數表
| Parameter | Conditions | Characteristics | Units | |||||||||||||||||
| Frequency Range | fO | 25.00 | MHz | |||||||||||||||||
| Frequency Tolerance | Ref @ +25°C | ±30 std. (±5 ~ ±100 avail.) | PPM | |||||||||||||||||

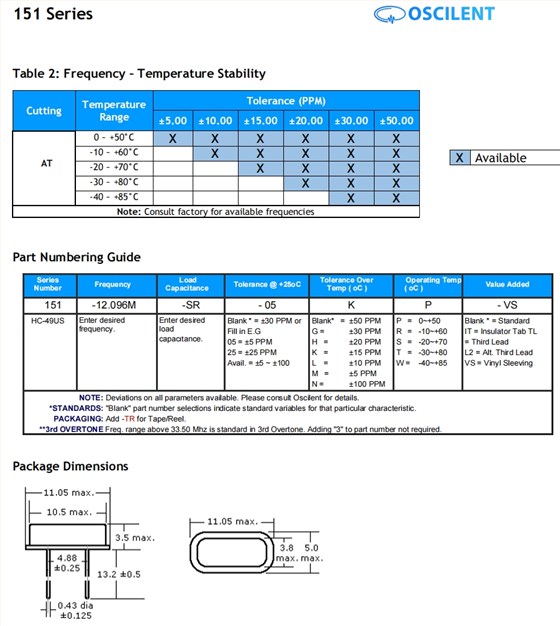

| Temperature Stability | TL | ±50 std. (See Table 2) | PPM | |||||||||||||||||
| Operating Temperature | TOPR | -10 ~ +60 std. (See Table 2) | °C | |||||||||||||||||
| Storage Temperature | TSTG | -55 ~ +125 | °C | |||||||||||||||||
| Resistance | ESR | (See Table 1) | Ohms | |||||||||||||||||
| Mode of Operation | (See Table 1) | |||||||||||||||||||
| Shunt Capacitance | CO | 7.0 max. | pF | |||||||||||||||||
| Load Capacitance | CL | 20 std. (8 ~ 50 and Series avail.) | pF | |||||||||||||||||
| Drive Level | DL | 0.1 ~ 1.0 | mW | |||||||||||||||||
| Aging (First Year) | @ +25°C | ±5.0 | PPM/Y | |||||||||||||||||
| Insulation Resistance | IR | 500 (DC100 ±10V) min. | Mohm | |||||||||||||||||

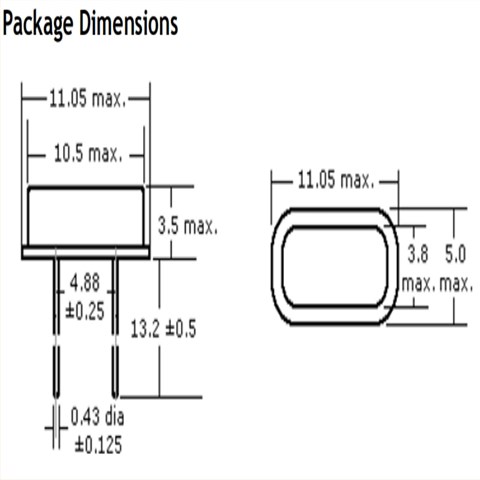

奧斯康利插件晶振,151-25.000M-SR-20HS-VS,25MHZ,151系列諧振器 尺寸圖
