NDK無源晶振NX2520SA-32.000000MHZ專用于短距離無線設備，實力派制造商日本NDK公司，憑借著自身聰明才智與努力奮斗，一路上不斷地自我成長，披荊斬棘，歷經無數的困難之后，終是成就偉大的NDK公司，如今的NDK將引領行業并支持電子SMD晶體產品的發展，成為高可靠性、高質量和高精度產品的頂級晶體器件制造商。

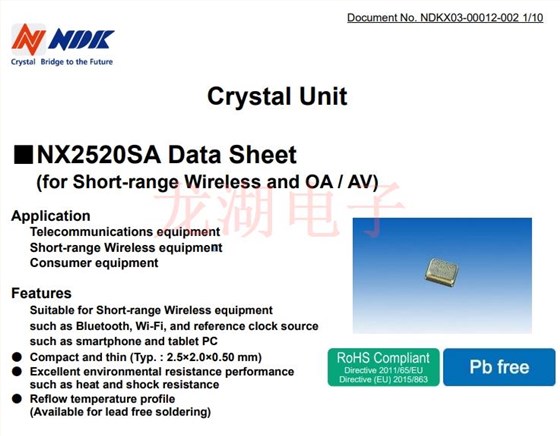

編碼NX2520SA-32.000000MHZ，型號NX2520SA，2520貼片晶振尺寸為2520mm,頻率為32MHZ，頻率穩定性為10ppm.產品特征：適用于短距離無線設備，如藍牙、Wi-Fi和參考時鐘源,比如智能手機和平板電腦，緊湊、薄(型)。: 2.5×2.0×0.50mm)，優異的耐環境性能，如耐熱性和抗震性，回流溫度曲線(可進行無鉛焊接)，產品應用范圍：電信設備，短距離無線設備，消費者的設備.

原廠編碼	廠家	型號	系列	頻率	頻率穩定度
NX2520SA-48.000000MHZ	NDK晶振	NX2520SA	MHz Crystal	48MHz	±10ppm
NX2520SA-16MHZ-EXS00A-CS05116	NDK晶振	NX2520SA	MHz Crystal	16MHz	±15ppm
NX2520SA-25.000M-STD-CSW-5	NDK晶振	NX2520SA	MHz Crystal	25MHz	±25ppm
NX2016SA-26M-STD-CZS-2	NDK晶振	NX2016SA	MHz Crystal	26MHz	±25ppm
NX2016SA-25.000M-STD-CZS-1	NDK晶振	NX2016SA	MHz Crystal	25MHz	±15ppm
NX2016SA-26M-STD-CZS-1	NDK晶振	NX2016SA	MHz Crystal	26MHz	±15ppm
NX3225SA-40.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	MHz Crystal	40MHz	±15ppm
NX2012SA-32.768K-STD-MUB-1	NDK晶振	NX2012SA	kHz Crystal (Tuning Fork)	32.768kHz	-
NX3225SA-20.000000MHZ-B2	NDK晶振	NX3225SA	MHz Crystal	20MHz	±15ppm
NX3225GD-8MHZ-STD-CRA-3	NDK晶振	NX3225GD	MHz Crystal	8MHz	±150ppm
NX3225GA-20MHZ-STD-CRA-1	NDK晶振	NX3225GA	MHz Crystal	20MHz	±150ppm
NX3225GB-20MHZ-STD-CRA-2	NDK晶振	NX3225GB	MHz Crystal	20MHz	±150ppm
NX2520SA-26MHZ-STD-CSX-1	NDK晶振	NX2520SA	MHz Crystal	26MHz	±10ppm
NX5032GA- 9.84375M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	9.84375MHz	±150ppm
NX1612AA-26MHZ STD-CSI-3	NDK晶振	NX1612AA	MHz Crystal	26MHz	±25ppm
NX2520SA-26.000000MHZ	NDK晶振	NX2520SA	MHz Crystal	26MHz	±10ppm
NX2520SA-30.000000MHZ	NDK晶振	NX2520SA	MHz Crystal	30MHz	±10ppm
NX2520SA-24.576000MHZ	NDK晶振	NX2520SA	MHz Crystal	24.576MHz	±10ppm
NX2520SA-20.000000MHZ	NDK晶振	NX2520SA	MHz Crystal	20MHz	±10ppm
NX2520SA-32.000000MHZ	NDK晶振	NX2520SA	MHz Crystal	32MHz	±10ppm
NX2520SA-44.000000MHZ	NDK晶振	NX2520SA	MHz Crystal	44MHz	±10ppm
NX2520SD-24MHZ-EXS00A-CS06352	NDK晶振	NX2520SD	MHz Crystal	24MHz	±15ppm
NX2520SA-26.000000MHZ-B9	NDK晶振	NX2520SA	MHz Crystal	26MHz	±10ppm
NX3225SA-114.285MHZ-EXS00A-CS06528	NDK晶振	NX3225SA	MHz Crystal	114.285MHz	±20ppm
EXS00A-CS05400	NDK晶振	NX2520SA	MHz Crystal	19.2MHz	±30ppm
NX8045GB-7.5MHZ-STD-CSF-4	NDK晶振	NX8045GB	MHz Crystal	7.5MHz	±30ppm
NX8045GB-12.288000MHZ	NDK晶振	NX8045GB	MHz Crystal	12.288MHz	±50ppm
NX8045GB-25.000000MHZ	NDK晶振	NX8045GB	MHz Crystal	25MHz	±50ppm
NX8045GB-24.000000MHZ	NDK晶振	NX8045GB	MHz Crystal	24MHz	±50ppm
NX8045GB-30.000000MHZ	NDK晶振	NX8045GB	MHz Crystal	30MHz	±50ppm
NX3225GA-19.2M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	19.2MHz	±30ppm
NX3225GA-16.9344M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	16.9344MHz	±30ppm
NX3225GA-10.000M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	10MHz	±30ppm
NX5032GA-10.000M-STD-CSK-3	NDK晶振	NX5032GA	MHz Crystal	10MHz	±30ppm
NX5032GA-30.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	30MHz	±50ppm
NX5032GA-40.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	40MHz	±50ppm
NX3225GA-12MHZ- STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	12MHz	±30ppm
NX5032GA-12MHZ-STD-CSK-8	NDK晶振	NX5032GA	MHz Crystal	12MHz	±50ppm
NX3225SA-27.12M-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	27.12MHz	±15ppm
NX3225GA-12.000M-STD-CRA-1	NDK晶振	NX3225GA	MHz Crystal	12MHz	±150ppm
NX3225GD-10.000M-STD-CRA-3	NDK晶振	NX3225GD	MHz Crystal	10MHz	±150ppm
NX2016SA-26MHZ-EXS00A-CS06025	NDK晶振	NX2016SA	MHz Crystal	26MHz	±20ppm
NX5032GA-16.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	16MHz	±150ppm
NX5032GA-8.000M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	8MHz	±150ppm
NX8045GB-13.560000MHZ	NDK晶振	NX8045GB	MHz Crystal	13.56MHz	±50ppm
NX5032GB-12MHZ-STD-CSK-5	NDK晶振	NX5032GB	MHz Crystal	12MHz	±30ppm
NX5032SD-13.56MHZ-STD-CSY-1	NDK晶振	NX3225SC	MHz Crystal	13.56MHz	±50ppm
NX2016AB-26MHZ SB1	NDK晶振	NX2016AB	MHz Crystal	26MHz	±15ppm
NX3225GA-12.288M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	12.288MHz	±30ppm
NX3225GA-13.56M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	13.56MHz	±30ppm
NX3225GA-14.7456M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	14.7456MHz	±30ppm
NX3225GA-27.12M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	27.12MHz	±30ppm
NX3225GA-25.000M-STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	25MHz	±30ppm
NX3225GA-25.000M-STD-CRG-2	NDK晶振	NX3225GA	MHz Crystal	25MHz	±30ppm
NX8045GB-14.318180MHZ	NDK晶振	NX8045GB	MHz Crystal	14.31818MHz	±50ppm
NX8045GB-7.3728MHZ-STD-CSF-3	NDK晶振	NX8045GB	MHz Crystal	7.3728MHz	±30ppm
NX8045GB-6MHZ-STD-CSF-3	NDK晶振	NX8045GB	MHz Crystal	6MHz	±30ppm
NX3225GA-16.000M-STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	16MHz	±30ppm
NX3225GA-12MHZ- STD-CRG-1	NDK晶振	NX3225GA	MHz Crystal	12MHz	±30ppm
NX3225SA-12.000M-STD-CRS-2	NDK晶振	NX3225SA	MHz Crystal	12MHz	±50ppm
NX3225SA-12.000MHZ-STD-CSR-1	NDK晶振	NX3225SA	MHz Crystal	12MHz	±15ppm
NX3225GB-16M-STD-CRA-2	NDK晶振	NX3225GB	MHz Crystal	16MHz	±150ppm
NX3225SA-13.56M-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	13.56MHz	±15ppm
NX3225SA-40M-EXS00A-CS03880	NDK晶振	NX3225SA	MHz Crystal	40MHz	±17ppm
NX3225SA-25.000M-STD-CSR-6	NDK晶振	NX3225SA	MHz Crystal	25MHz	±25ppm
NX2016SA-24.9231M-CHP-CZS-9	NDK晶振	NX2016SA	MHz Crystal	24.9231MHz	±25ppm
NX3225SA-12MHZ-STD-CSR-3	NDK晶振	NX3225SA	MHz Crystal	12MHz	±15ppm
NX1612SA-32.000MHZ-CHP-CIS-3	NDK晶振	NX1612SA	MHz Crystal	32MHz	±20ppm
NX2520SA-16MHZ-STD-CSW-5	NDK晶振	NX2520SA	MHz Crystal	16MHz	±25ppm
NX1612AA-26MHZ-TI2	NDK晶振	NX1612AA	MHz Crystal	26MHz	±20ppm
NX1612AA-26MHZ STD-CSI-1	NDK晶振	NX1612AA	MHz Crystal	26MHz	±20ppm

無源晶振產品有十余項關鍵參數，如工作頻率、頻率穩定度，溫度頻差、負載電容、諧振電阻、封裝形式、老化率等。由于所有電路都是以重復且穩定的頻率信號作為參考，選擇合適的晶振是系統能否持續高效工作的重要基礎。NDK無源晶振NX2520SA-32.000000MHZ專用于短距離無線設備.
